Taie FY600 - LEVEL_2 Parameter

31 FY operation manual

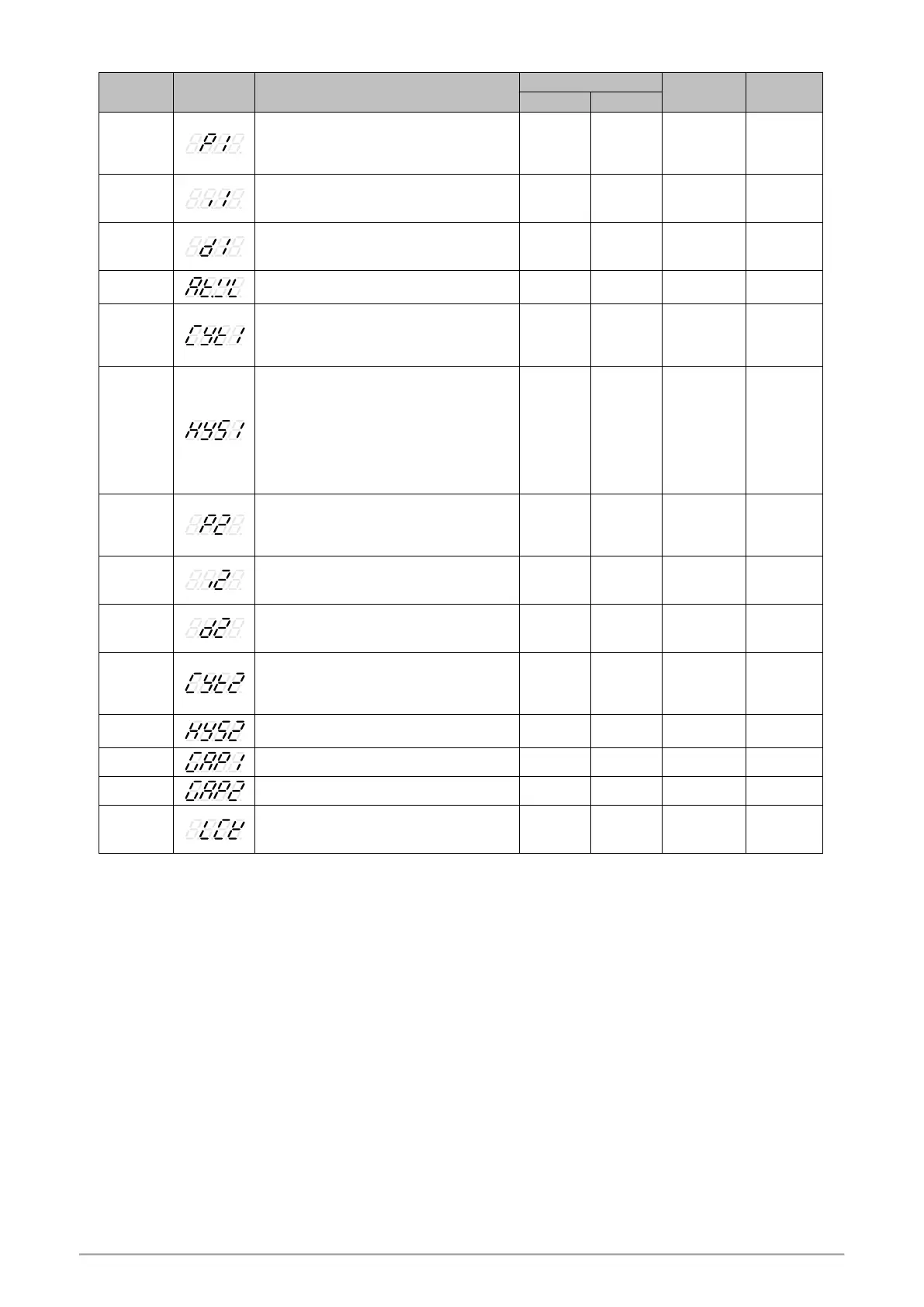

10.7 LEVEL_2 Parameter
Parameter
Symbol
Content
Range
Default
Hide/
Display
MAX
MIN
P1
Main output proportional band
0.0 : ON/OFF control
Other values : proportional band setting
value
200.0
0.0
3.0
---
I1
Main output integral time
0 : disable integral function
Other values : integral time setting value
3600
0
240
---
D1
Main output derivative time
0 : disable derivative function
Other values : derivative time setting value
900
0
60
---
AT.VL
Auto-tuning offset value
execute auto-tuning in (SV-ATVL) point
100.0
-100.0
0.0
---
CYT1
Main output control cycle
0 : Linear signal
1 : SSR drive
2~150 : Relay
150
0
10
---
HYS1
Hysteresis for main output
on/off control use(when P1 = 0.0 appear)
heating formula
：
PV
≥
(SV + HYS1)  OUT1=OFF
PV
≤
(SV - HYS1)  OUT1=ON
cooling formula
：
PV
≥
(SV + HYS1)  OUT1=ON
PV
≤
(SV - HYS1)  OUT1=OFF
100.0
-100.0
1.0
P1 = 0.0
P2
Sub output proportional band
0.0 : ON/OFF control
Other values : proportional band setting
value
200.0
0.0
3.0
OUTY = 1
I2
Sub output integral time
0 : disable integral function
Other values : integral time setting value
3600
0
240
OUTY = 1
D2
Sub output derivative time
0 : disable derivative function
Other values : derivative time setting value
900
0
60
OUTY = 1
CYT2
Sub output control cycle
0 : Linear signal
1 : SSR drive
2~150 : Relay
150
0
10
OUTY = 1
HYS2
Hysteresis for sub output
on/off control use(when P2 = 0.0 appear)
100.0
-100.0
1.0
P2 = 0.0
GAP1
Control gap (for main output)
1000
-1000
0
OUTY = 1
GAP2
Control gap (for sub output)
1000
-1000
0
OUTY = 1
LCK
Function or level lock
(Please refer to Chapter 10.3 Data Lock
Function)
1111
0000
0000
---
