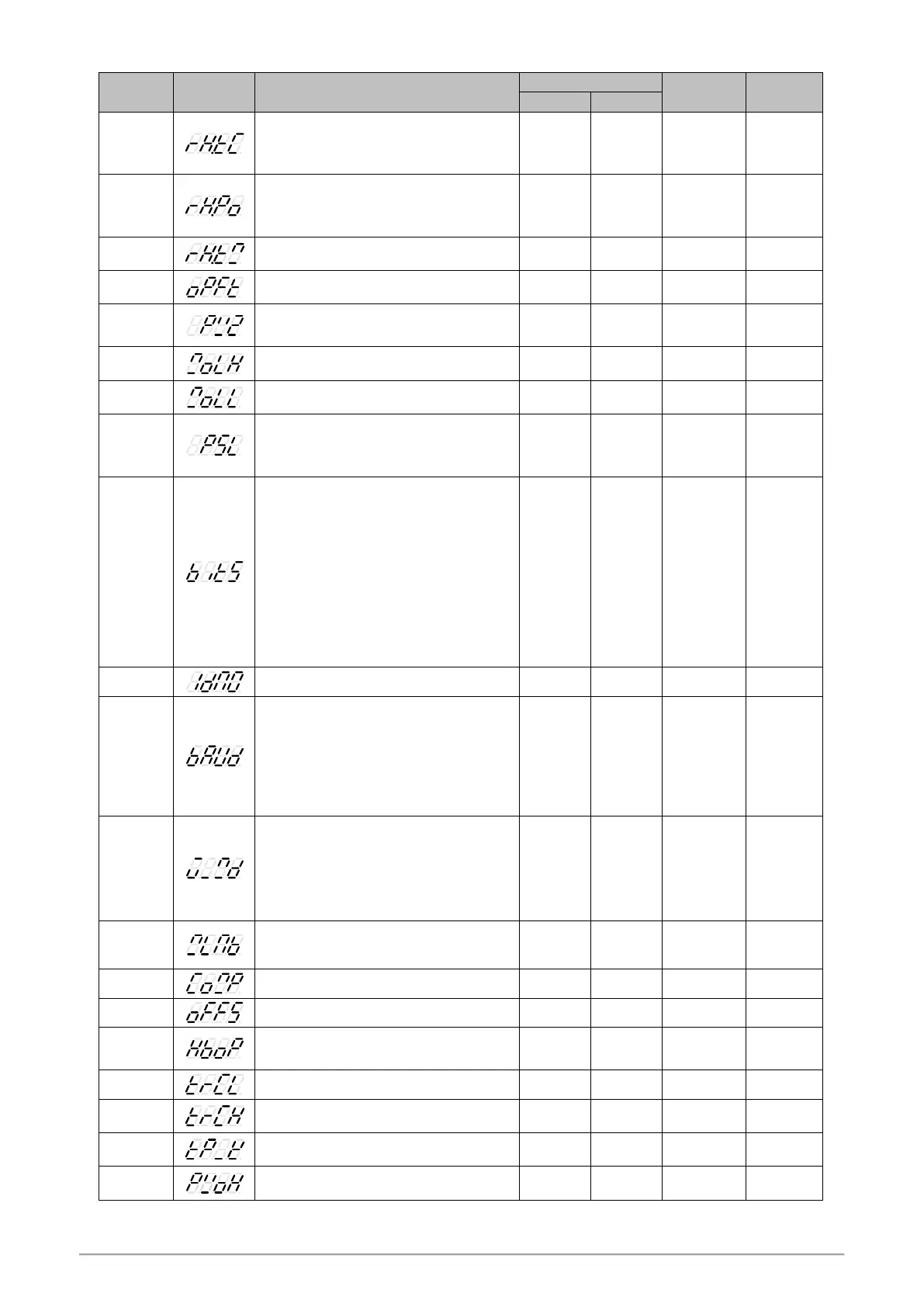

10.14 Fast Level Parameter
Parameter
Symbol
Content
Range
Default
Hide/
Display
MAX
MIN
RH.TC
Dehumidification temperature
If PV less than RHTC manipulated value =
RHPO
(Please refer to Chapter 11.5)
200.0
0.0
125.0
---
RH.PO
Dehumidification manipulated value
0 : OFF disable dehumidification function
Other values : 0.1~100.0 manipulated value
(Please refer to Chapter 11.5)
100.0
OFF
OFF
---
RH.TM
Dehumidification time
time format : min.sec
99.59
0.00
15.00
---
OPFT
Output filter
unit: second
10.00
0.10
2.00
---
PV2
Use for motor valve feedback value
100.0
0.0
---
OUTY=2
&
SET7.1
MOLH
High limit setting of manipulated
value for main output
100.0
0.0
100.0
---
MOLL
low limit setting of manipulated value for
main output
100.0
0.0
0.0
---
PSL
Protocol selection
0 : TAIE
1 : RTU
(Please refer to communication manual)
RTU
TAIE
RTU
SET5.4
BITS
Data format
0 : O_81
(parity bit=odd, stop bit=1)
1 : O_82
(parity bit=odd, stop bit=2)
2 : E_81
(parity bit=even, stop bit=1)
3 : E_82
(parity bit=even, stop bit=2)
4 : N_81
(parity bit=none, stop bit=1)
5 : N_82
(parity bit=none, stop bit=2)
N_82
O_81
O_81
SET5.4
IDNO
Controller station
254
0
1
SET5.4
BAUD
Baud rate
0 : 24(2400)
1 : 48(4800)
2 : 96(9600)
3 : 192(19200)
4 : 384(38400)
5 : 576(57600)
6 : 1152(115200) bps
1152
24
384
SET5.4
W_MD
EEPROM protection
0 : OFF communication write
command only write to CPU
RAM
1 : ON communication write
command write to CPU RAM and
EEPROM
ON
OFF
ON
SET5.4
MLNB
Piece linear compensation segment select
TRIP : leave setting loop
1~10 : segment select
10
TRIP
TRIP
SET8.4
COMP
Piece linear compare value
USPL
LSPL
LSPL
SET8.4
OFFS
Piece linear offset value
150.0
-150.0
0.0
SET8.4
HBOP
Output percentage of trigger HBA
100.0
0.0
90.0
INP2=4
&
ALD1=9
TRCL
Main input TC/RTD zero calibration
9999
0
0
SET2.2
TRCH
Main input TC/RTD span calibration
(hex display)
7FFF
0
5FFF
SET2.2
TP_K
reserve
100.0
10.0
15.0
PROG
= ON
PVOH
PV bias(for span)
PV = PV x (PVOH / 5000) + PVOS
9999
0
5000
SET6.2
