Taie FY600 - 11.10 Piece Linear Compensation Method

51 FY operation manual

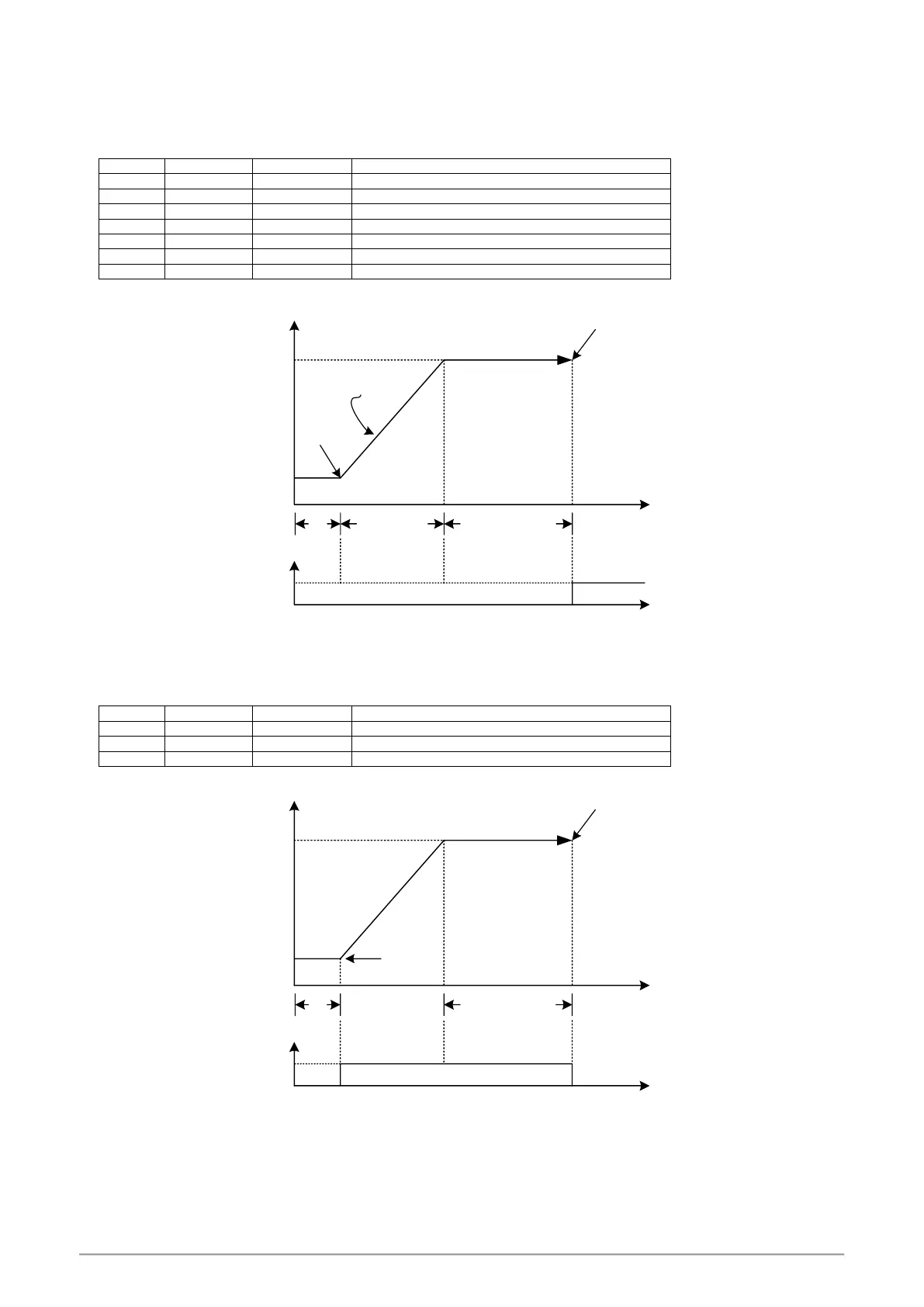

Example(2) Single RAMP+SOAK_B (ALD3=9 + ALD1=19)
Boot completed, the alarm1 is OFF, SV rise 5.00°C rise per minute. when the PV reaches 100 °C, the temperature is kept
for 10 minutes. after 10 minutes alarm is turned ON and the control function keep ON
Parameter setting
Level
Parameter
Set value
Description
1
SV
100.0
Target temperature
4
SET2.1
1
Display AL3
4
SET4.1
1
Display ALD3
3
ALD1
19
AL1 as soak timer
3
ALD3
9
Enable RAMP function
1
SOAK(AL1)
0.10
Soak for 10 minutes
1
RAMP(AL3)
5.00
5.00°C rise per minute
time
Temperature
100.0
25.0
RAMP
15 minutes
Time up
Alarm=ON
PV follows SV up 5°C
per minute
SOAK
10 minutes
5
seconds
PV
ramp start
alarm=ON
time
Action
OFF
ON
PV time chart
AL1 time chart
Example(3) only use SOAK_A (ALD1=10)
Boot completed, the alarm1 is ON, and the PV is directly controlled at 100 °C. when the PV reaches 100 °C, the temperature is kept
for 10 minutes. after 10 minutes alarm1 and control function are turned OFF
Parameter setting
Level
Parameter
Set value
Description
1
SV
100.0
Target temperature
3
ALD1
10
AL1 as soak timer
1
SOAK(AL1)
00.10
Soak for 10 minutes
time
Temperature
100.0
25.0
Time up
Alarm=OFF
SOAK
10 minutes
5
seconds
PV
time
Action
ON
Temperature rise
Alarm=ON
OFF
PV time chart
AL1 time chart
