TB9100/P25 CG/P25 TAG Installation and Operation Manual Description 21
© Tait Limited March 2014
Console Gateway
The console gateway interfaces a third party analog dispatch console to a Tait
P25 Network. It acts as an encryption/decryption point, enabling the analog
dispatch console to participate in encrypted calls. A console gateway is a
channel group member, connecting the dispatch console to the channel
group.
Trunked Analog Gateway
The trunked analog gateway interfaces a third party analog dispatch console
to a Tait P25 trunked network. Each trunked analog gateway makes a
‘channel’ available to the dispatcher by providing a connection into the
trunked network. The dispatch console can be considered a virtual radio,
with the gateway providing the dispatcher with a radio identity on the
trunked network. The trunked analog gateway acts as an encryption/
decryption point, enabling the analog dispatch console to participate in
encrypted calls.
1.7 Theory of Operation

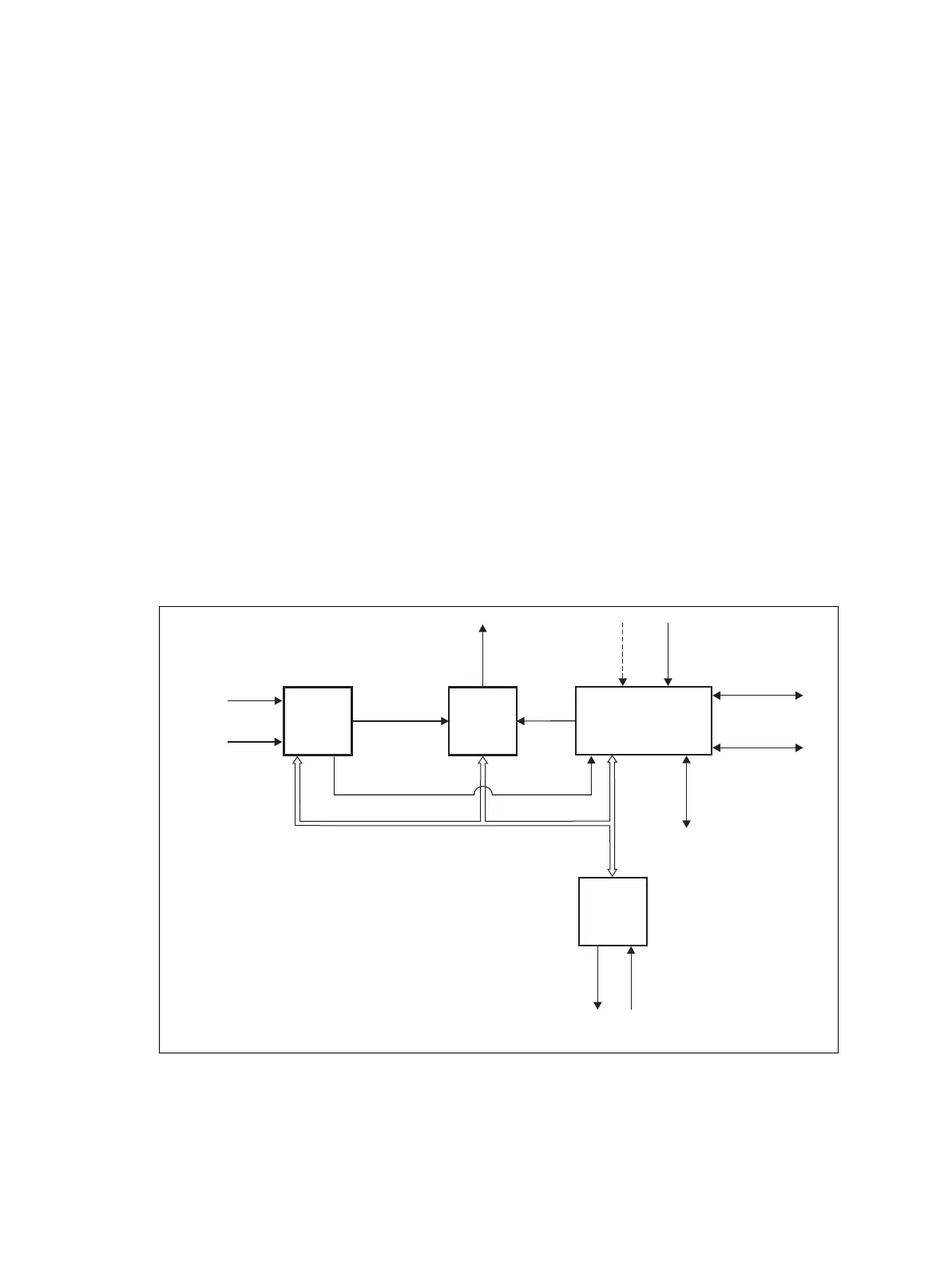

Figure 1.2 Base station high-level diagram
Reciter
PMU
PA
RF To
Antenna
RF From
Antenna
External Reference
Frequency (if used)
AC I/P
DC I/P
28VDC
(high current)
System Control Bus
Microphone
I/P
Network
Speaker
O/P
RF +
PA Key
28VDC (low current)
Analog Line
(4-wire E&M)
Ethernet
Interface
RS-232 +
Digital I/O
Control
Panel
