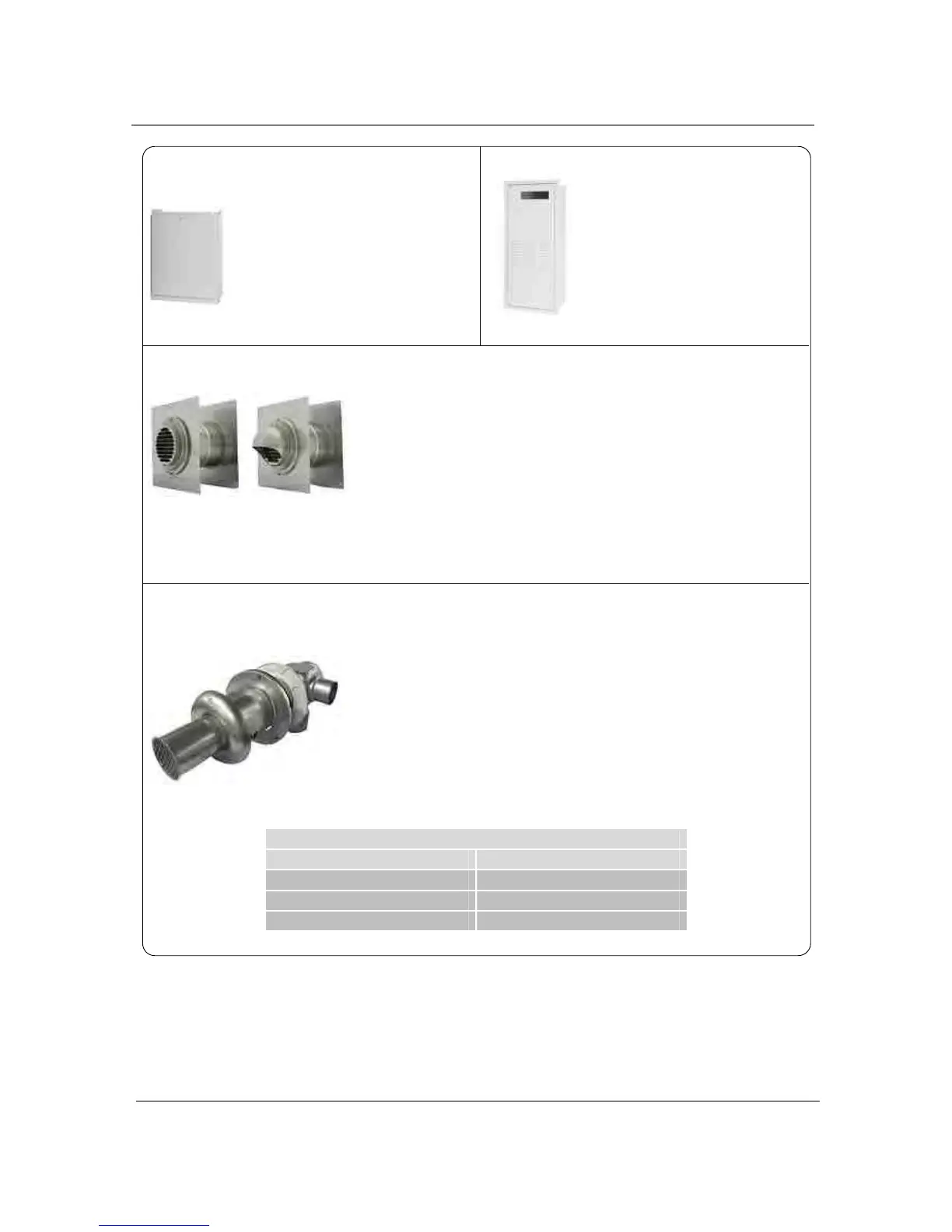

5. Pipe Covers: 9007670005 (TK-PC01) and
9007671005 (TK-PCJr2)
The pipe cover protects the
plumbing pipes to the water heater
from unexpected adjustments.
This pipe cover is fixed to the
bottom of the water heater, which
hides the plumbing and improves
the visual aspects of the whole
6. Recess box: 9007674005 (TK-RB02)
The Recess box will allow for
“clean” installations. The water
heater fits inside the recess box,
which hides and protects the
whole water h
The Recess box will fit in-between
most wall studs.
7. T-Vent Wall Thimble with Termination: 9007608005 (TK-KPWL4) and 9007609005 (TK-KPWH4)
These terminations are used when venting out through the wall
and are compatible with the T-Vent pipe system.
These terminations are special stainless steel vents for gas
appliances and are UL listed as Category II, III and IV. There are
two types of terminations: the Louver termination and the Hood
termination. For different wall thicknesses, there are two ranges
of lengths available (refer to the venting brochure for details).
Install these vent terminations in accordance with their
installation instructions and any applicable local codes.
8. Direct-Vent Concentric Termination: 9007680005 (TK-KPCT43)
Used when terminating direct-vent (sealed-combustion) systems,
with direct-vent models that require a 3” intake and a 4” exhaust.
This concentric termination provides the convenience of only
having to make one penetration through a sidewall instead of two
separate penetrations for the intake and exhaust piping. The
termination includes a bird screen, restricting small animals,
pests, and foreign objects from entering into the vent system.
This sidewall termination is available in three different sizes, to
cover all ranges of wall thicknesses
