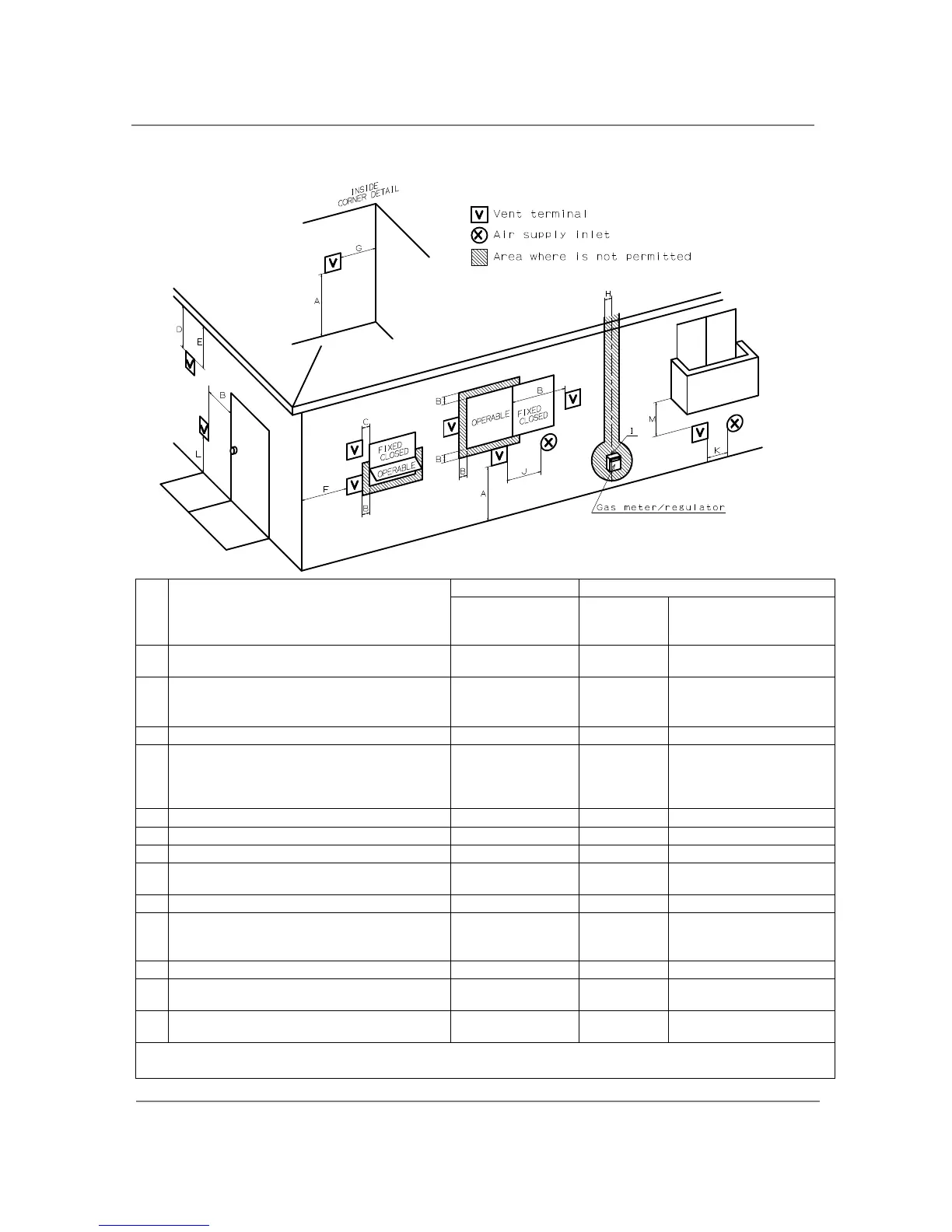

-Vent termination clearances-
Canada
U.S.A
Direct vent and
other than Direct
Vent
Direct vent
Other than Direct Vent
A
Clearance above grade, veranda, porch, deck,
or balcony.
1 foot 1 foot 1 foot
B
Clearance to window or door that may be
opened.
3 feet 1 foot
4 feet from below or side
opening. 1 foot from
above opening.
C
Clearance to permanently closed window
*
*
*
D
Vertical clearance to ventilated soffit located
above the vent terminator within a horizontal
distance of 2 feet (61cm) from the center line
of the terminator.
* * *
E
Clearance to unventilated soffit
*
*
*
F
Clearance to outside corner
*
*
*
G
Clearance to inside corner
*
*
*
H
Clearance to each side of center line extended
abo
ve meter/regulator assembly
3 feet * *
I
Clearance to service regulator vent outlet.
3 feet
*
*
J
Clearance to non
-
mechanical air supply inlet
to building or the combustion air inlet to any
other application.
3 feet 1 foot
4 feet from below or side
opening. 1 foot from
above opening.
K
Clearance to mechanical air supply inlet.
6 feet
3 feet
3 feet
L
Clearance above paved sidewalk or paved
driveway located on public property.
7 feet * 7 feet
M
Clearance under veranda, porch deck, or
balcony.
1 foot * *
*For clearances not specified in ANSI Z223.1 / NFPA 54 or CAN/CSA
-
B149
.1
, please use clearances in accordance with
local installation codes and the requirements of the gas supplier.
