126
MAINTENANCE
When Required

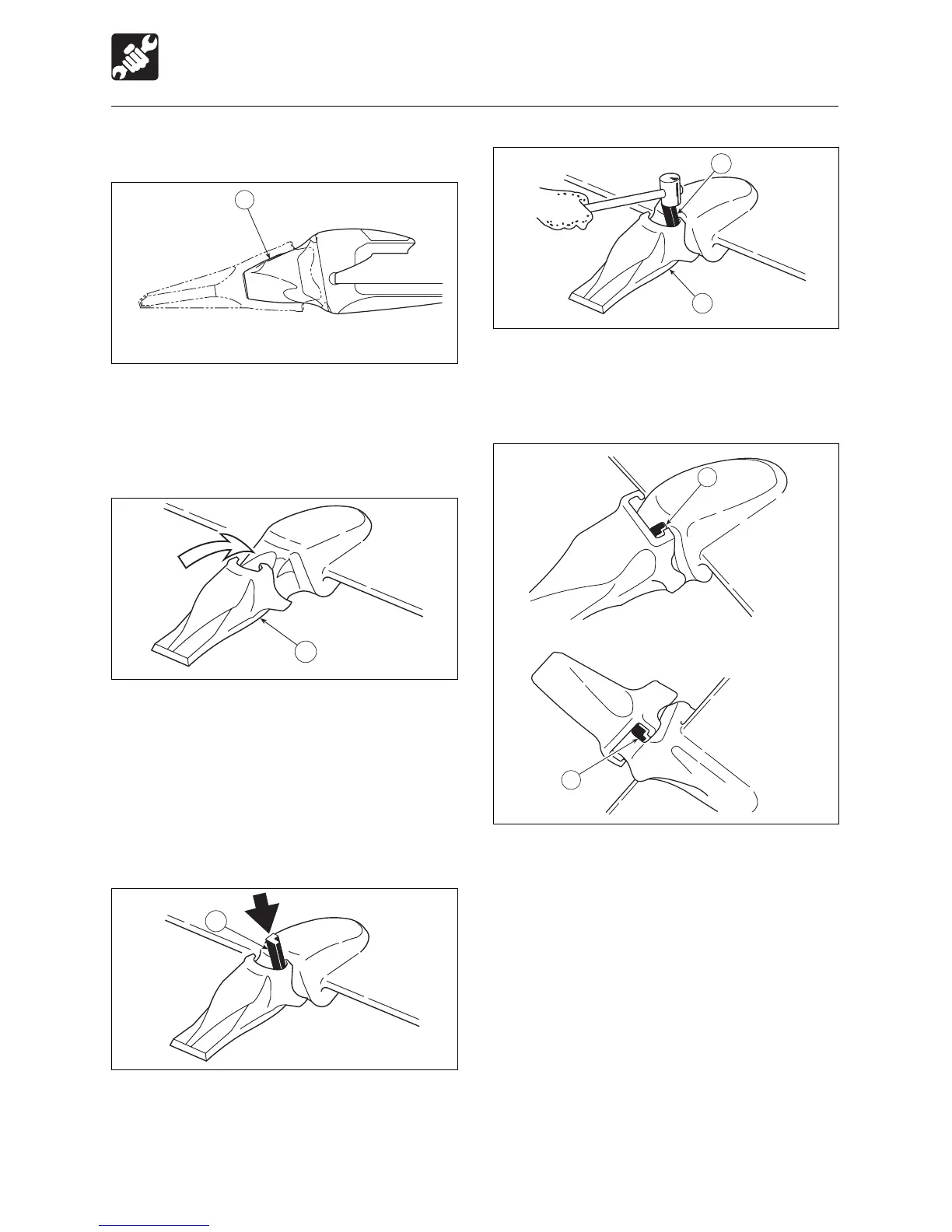

Installation
1. Clean the adapter nose (3).
If there is gravel or mud on the adapter
nose, the tooth point will not go in all the
way and the pin cannot be driven in.
2. Put the tooth point (2) in the adapter nose
(3).
Push in firmly until the tooth point (2)
touches the tip of the adapter nose (3).
Some tooth points (2) are of the type that
are installed by turning (twisting) them
clockwise.
3. Insert the locking pin (1), making sure it is
in the right direction.
4. Drive in the locking pin (1) with a hammer
until it is flush with the tip of the tooth point
(2) ear.
5. The locking pin (1) is now driven in.
The same procedure can be used to install
the other tooth points.
OL1L220
3
OL1L230
2
OL1L240
1
OL1L250
2
1
OL1L260
1
OL1L270
1
