131
MAINTENANCE
When Required

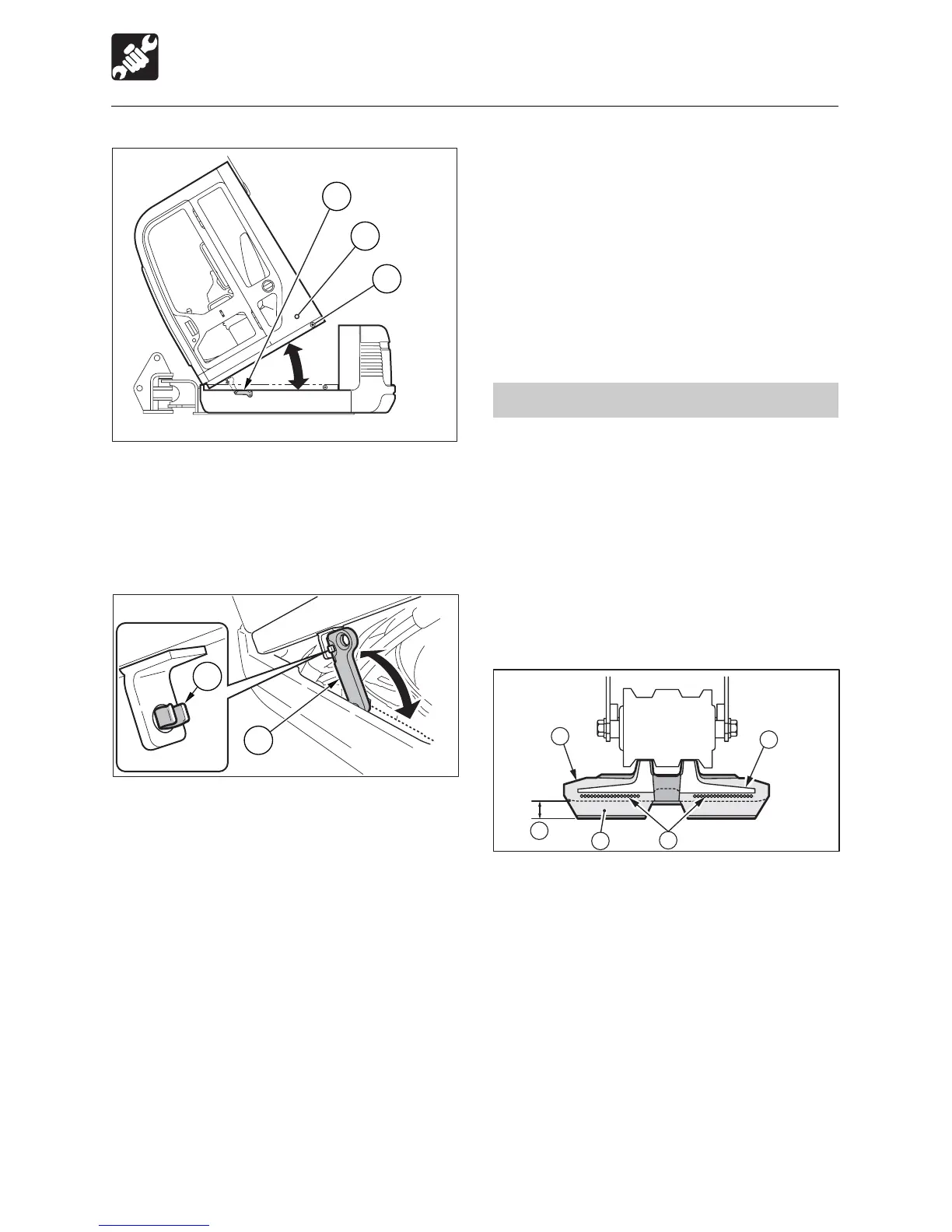

Lowering
1. Insert a finger into the round hole in
stopper (D), remove, and set back to the
original position.
2. Lower the platform and push it until a click
is heard to engage the latch.
3. Tighten the lock bolt (A).
¡Tightening torque: 106 N·m (78.1 ft-lb.)
Inspecting the Rubber Crawlers
Repair or replace the rubber crawlers if their
conditions are as described below. Consult
a Takeuchi sales or service outlet about
repairs or replacement.
Rubber crawler
Replace the crawler if the entire crawler is
stretched and cannot be adjusted.
(1) Lug
Replace if the height of (A) is 5 mm (0.2 in.)
or below.
E4G062
3
2
1
A
4
B
A
D
G4G0161
D
C
K3G004
3. Remove the lock bolt (A).
4. Insert a rod into hole (B) and release the
latch.
5. With the rod still in the hole, slowly raise
the platform. (Tilt up : 30°)
6. Lift stopper (D) and insert it into the
platform’s holder (C) to fasten it in place.
If you need to run the engine while the
platform is raised follow these steps.
7. Make sure that all levers and pedal are in
neutral positions.
8. Push the throttle lever to the low idling
position.
9. Start the engine.
10. Be sure to stop the engine after
inspection and maintenance.
