64
OPERA
TION

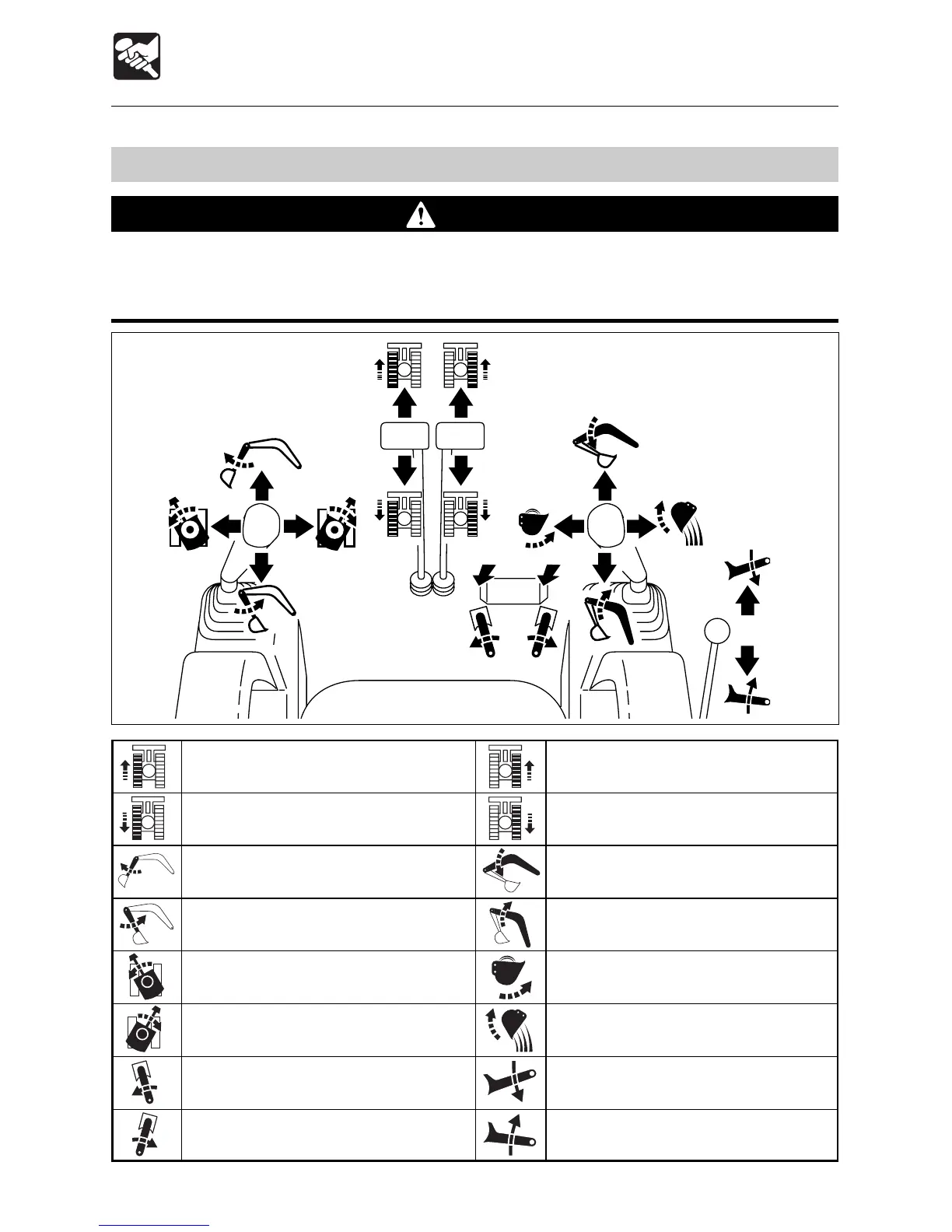

Machine Operation
Left Crawler Forward
Left Crawler Reverse
Arm Out
Arm In
Upperstructure Slew Left
Upperstructure Slew Right
Boom Swing Left
Boom Swing Right
Right Crawler Forward
Right Crawler Reverse
Boom Lower
Boom Raise
Bucket Load
Bucket Dump
Dozer Blade Lower
Dozer Blade Raise
Lever Pattern (ISO Pattern)
W
ARNING
¡
¡
¡
¡
¡
Be careful to check which pattern of lever control arrangement you are operating
with before beginning operations.
¡
¡
¡
¡
¡
The explanations in this manual are for the ISO pattern.
C4D006
〈
〈
〈
〈
〈
