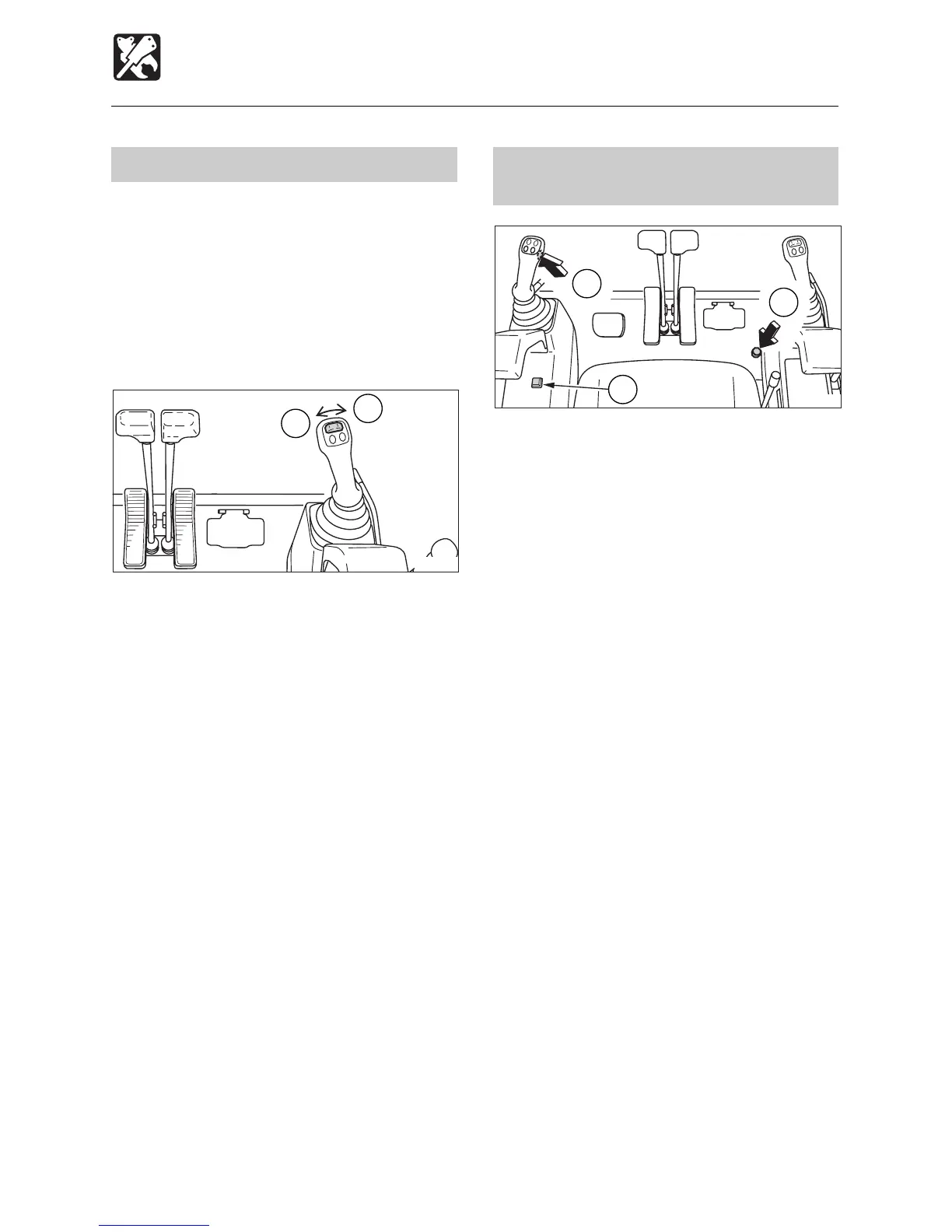

Operating Levers (with Second auxiliary hydraulics) / TB145
Second Auxiliary Hydraulic Switch
Proportional control
Note: The machine has auxiliary proportional
controls for second auxiliary hydraulic.
Proportional control allows for slow-to-fast
movement of auxiliary functions.
Example: If you move the auxiliary switch
half way, the auxiliary function will move at
approximately one-half speed.
Move this switch to control the flow of the oil
in the second auxiliary hydraulic lines.
(C) .... Hydraulic oil flows to left auxiliary
line(c)
(D) .... Hydraulic oil flows to right auxiliary
line(d)
Third Auxiliary Hydraulic Switch
and Button
Press those switch and button to control the
flow of the oil in the third auxiliary hydraulic
lines.
When the safety lock lever is released after
the engine is started, hydraulic oil constantly
flows in pipe (e). When button (1) and switch
(2) are pressed simultaneously, the oil flow
switches to pipe (f). When this happens, the
pressure of pipe (e) drops, an alarm is
sounded and the warning lamp (3) lights.
For safety, only operates when both button
(1) and switch (2) are pressed.
2
1
3
K3L0251
C
D
K3L024
