155
SPECIFICA
TIONS

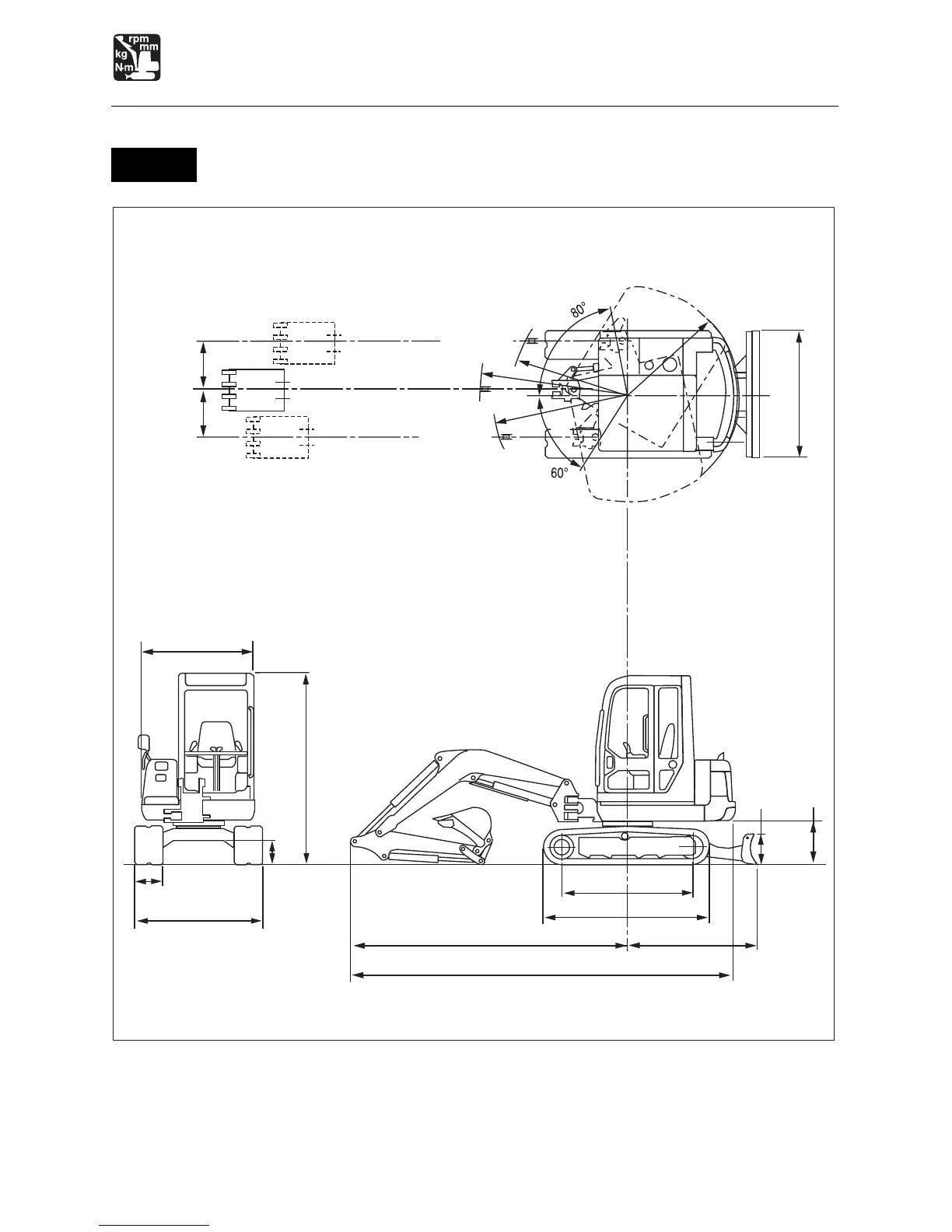

Machine Dimensions
TB135
Equipped with Cab and Rubber Crawlers
Units: mm (inches)
G4K006
1630(64.2)
R1400(55.1)
R1470(57.9)
R1890(74.4)
R1725(68)
620(24.4)
615(24.1)
1470(57.9)
2455(96.6)
Overall
height
295(1
1.6)
350(13.8)
1630(64.2)
3555(139.9)
4945(194.8)
Overall
length
1655(65.1)
21
10(83)
1655(65.2)
400(15.7)
570(22.4)
156
158
