CONTROLS
W2B008
1
1
2
3
Doors and Covers
Front Window
WARNING
� Grasp the handles firmly with both
hands when opening and closing the
front window. Your head or hands may
get caught if they slip.
�
If you open the front window, be sure to
lock it in place with the lock pins on the
left and right sides. The window may
fall if it is not locked in place.

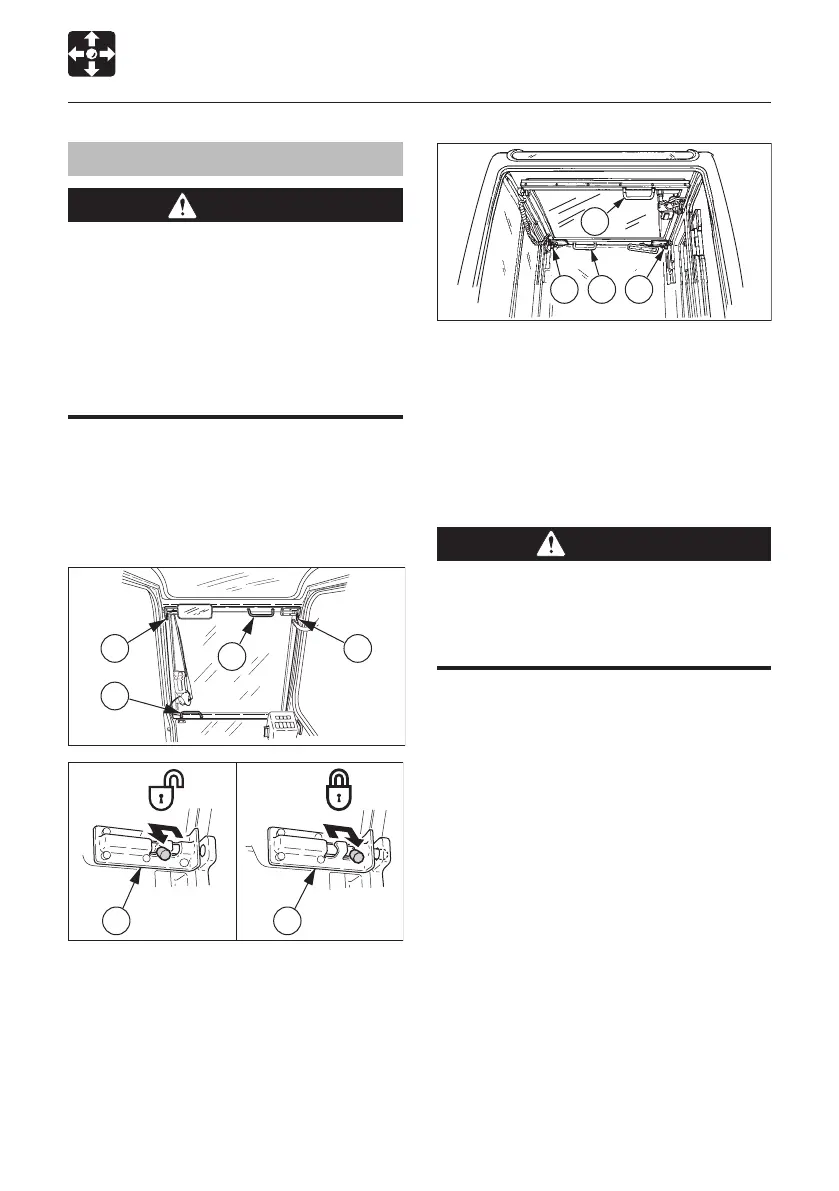

Opening
1. Park on a level surface and stop the
engine.
2. Set the safety lock lever to the locked
position.
3. Pull the left and right lock pins (1) to the
inside then turn them to the locked position
to unlock the front window. If the lock pins
(1) are partially sticking out they may cause
damage.
4. Grasp the lower handle (3) with the left
hand, the upper handle (2) with the right
hand, then lift and slide to the rear.
5. Once the window frame is against the
stopper, move the lock pins (1) to the
outside to lock the front window.
Closing
WARNING
When closing the front window, lower the
window slowly so as not to hit your head.
Lowering the window abruptly may result
in injury or damage the front window.
1. Pull the left and right lock pins (1) to the
inside and turn them to the locked position
to unlock the front window. If the lock pins
(1) are partially sticking out they may cause
damage.
2. Grasp the front (lower) handle (3) with the
left hand, the rear (upper) handle (2) with
the right hand, then slowly lower the front
window.
3. Move the lock pins (1) to the outside to lock
the front window.
W2B007
1
1
W2B006
1
1
2
3
