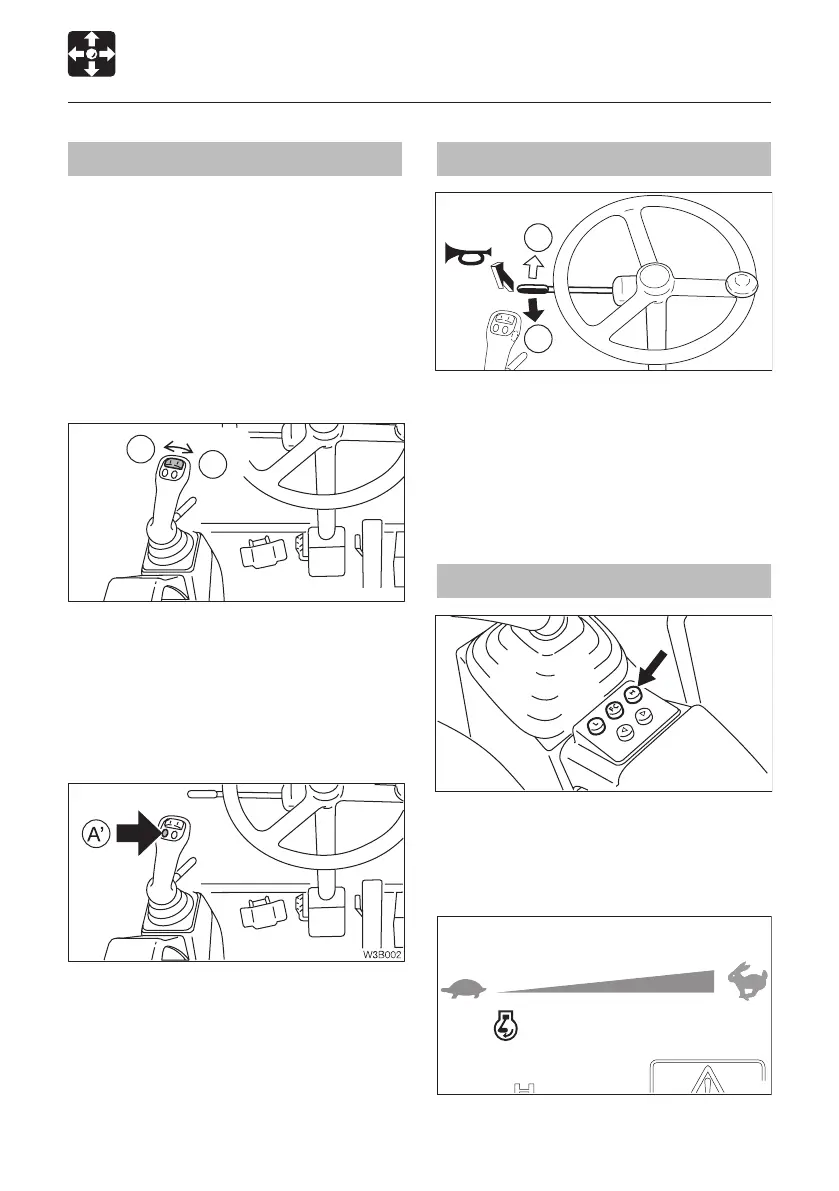

Switches
First Auxiliary Hydraulic Switches
Auxiliary Hydraulic Switch
(Proportional control)
Supplement: The machine has auxiliary
proportional controls for first and second
auxiliary hydraulics.
Proportional control allows for slow-to-fast
movement of auxiliary functions.
Example: If you move the auxiliary switch
half way, the auxiliary function will move at
approximately one-half speed.
Move this switch to control the flow of the oil
in the first auxiliary hydraulic lines.
(A) .....Hydraulic oil flows to left auxiliary line(a)
(B) .....Hydraulic oil flows to right auxiliary
line(b)
Auxiliary Hydraulic Buttons
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
(A’) ..... Hydraulic oil flows to left auxiliary line(a)
�
Proportional control of the auxiliary
hydraulic circuit is not possible.
Turn Signal Switch
Move this switch to blink the turn lights and
sound the horn.
(A) .......Left turn lights
(B) .......Right turn lights
UP ......Horn
Power Mode Buttons
The engine speed can be changed at the
touch of a button. When one of these buttons
is pressed, the engine is set to the set speed
and the power mode indicator lights.
To Next Page
