59
CONTROLS

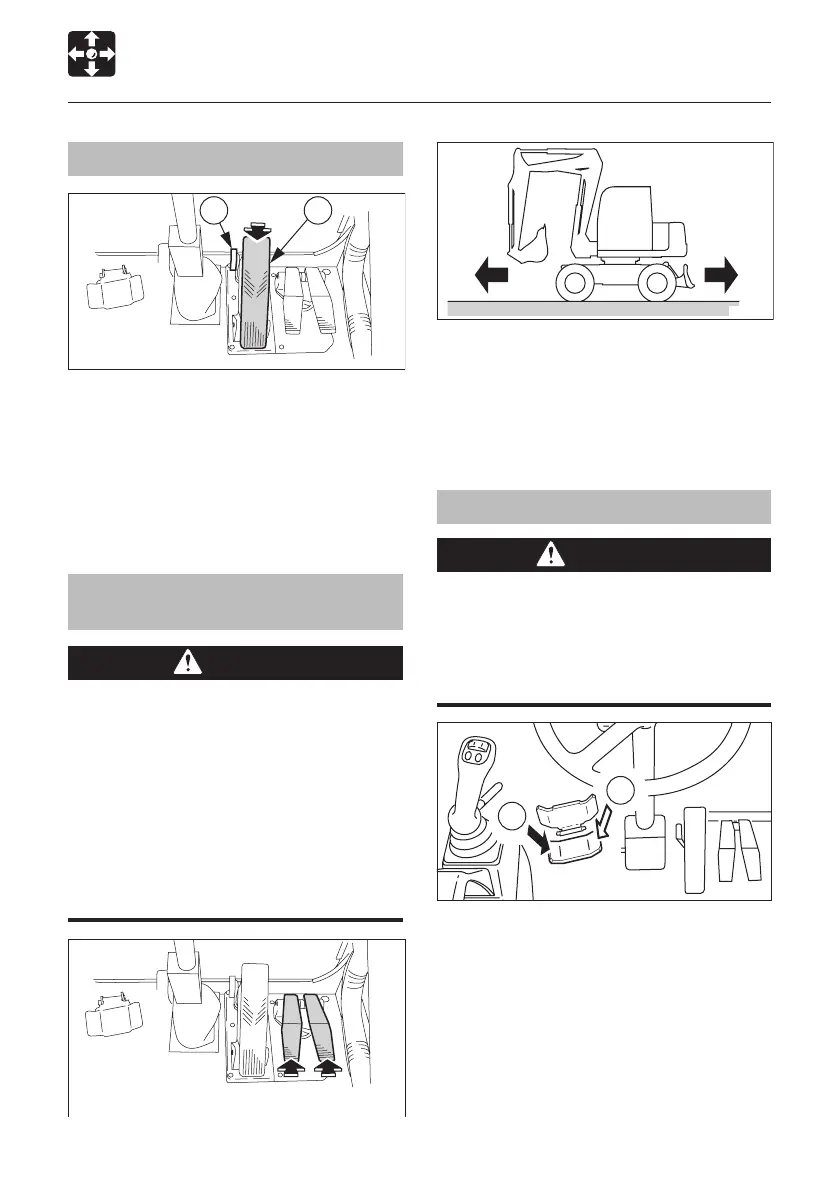

Brake Pedal
The brake pedal (1) operates the brakes
(arrow = brakes). The pedal (1) can be locked
in position by pressing fully down. Press on
the Release lever (2) to release the lock.
IMPORTANT: When using the bucket, lock
the brake.
Forward Travel Pedal
Reverse Travel Pedal
DANGER
� Before reversing, check that there
is nothing behind you and that the
upperstructure and undercarriage
are aligned. If the steering axle is not
beneath the cab, forward and backward
movements are reversed.
�
When traveling, do not step on the
travel pedal for the opposite direction.
Doing so is dangerous as it causes the
machine to stop suddenly.
Use the travel pedals to drive the machine and
to control the machine travel speed.
F
........ Forwards
R
........ Rearwards
Boom Swing Pedal
WARNING
When not using the boom swing pedal,
engage the boom swing pedal lock.
Stepping on the pedal accidentally when
it is not locked may lead to unexpected
accidents.
Use this pedal to operate the boom swing.
Operation switches to the intermediate boom
when the selector switch is pressed.
(A) ..... Boom swing left /
Intermediate boom raise
(B) ..... Boom swing right /
Intermediate boom lower
Refer to page 82 “Operating the Boom Swing
and Intermediate Boom”.
Levers and Pedals
