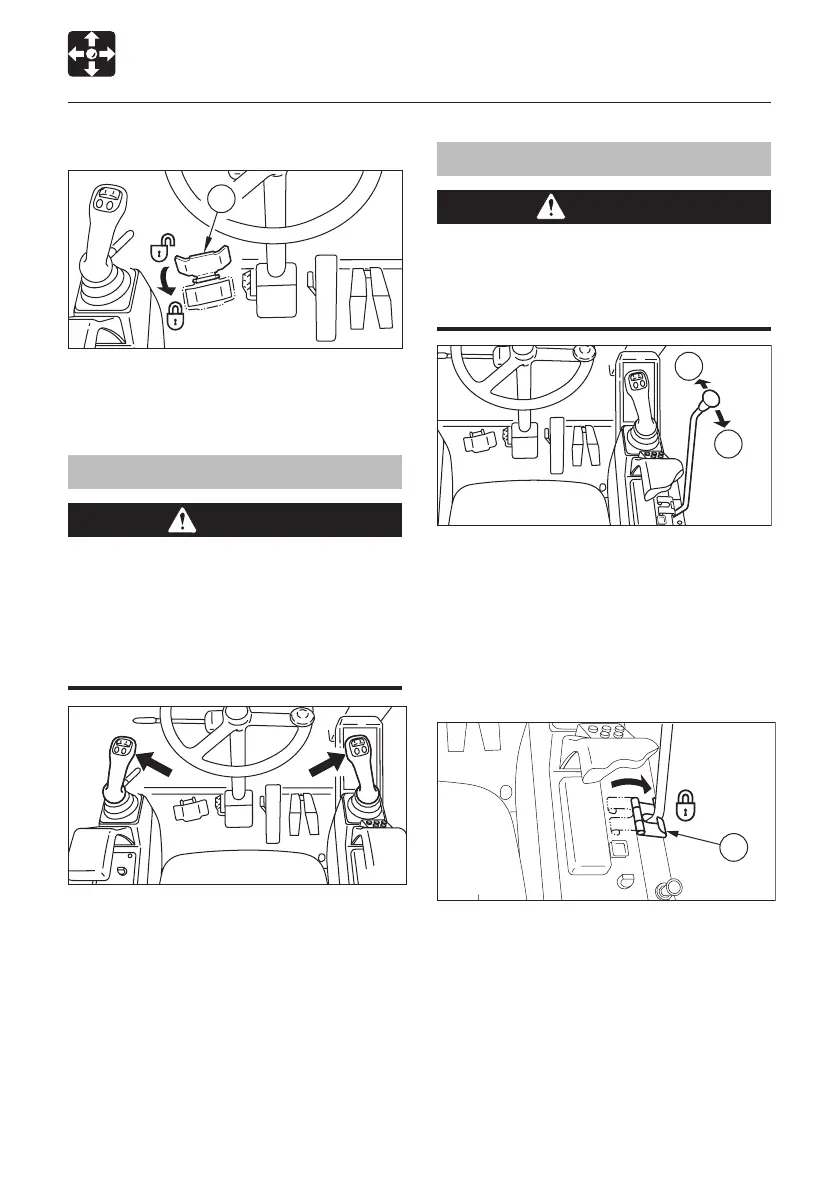

Levers and Pedals
Blade Lever
WARNING
When not using the blade lever, engage
the blade lever lock. Touching the lever
accidentally when it is not locked may lead
to unexpected accidents.
Use this lever to operate the dozer blade and
outriggers.
(A) ......Blade Raise / Outriggers Raise
(B) ......Blade Lower / Outriggers Lower
Refer to page 82 “Operating the Dozer
Blade”.
Lever Lock
When the blade lever is at the neutral position,
turn the lock plate (1) to lock the blade lever.
Pedal Lock
Pivot the pedal lock (1) over the pedal to
lock it.
Operating Levers
WARNING
� Be careful to check which pattern
of lever control arrangement you
are operating with before beginning
operations.
�
The explanations in this manual are for
the ISO pattern.
Use these levers to operate the boom, arm,
bucket and upperstructure (slew).
Refer to page 74 “Lever Pattern”.
Refer to page 81 “Operating the Working
Equipment”.
