Takeuchi TB216 Workshop Manual

DISASSEMBLY AND ASSEMBLY
TRAVEL SYSTEM
3
4
TRAVEL SYSTEM 4C0AX00

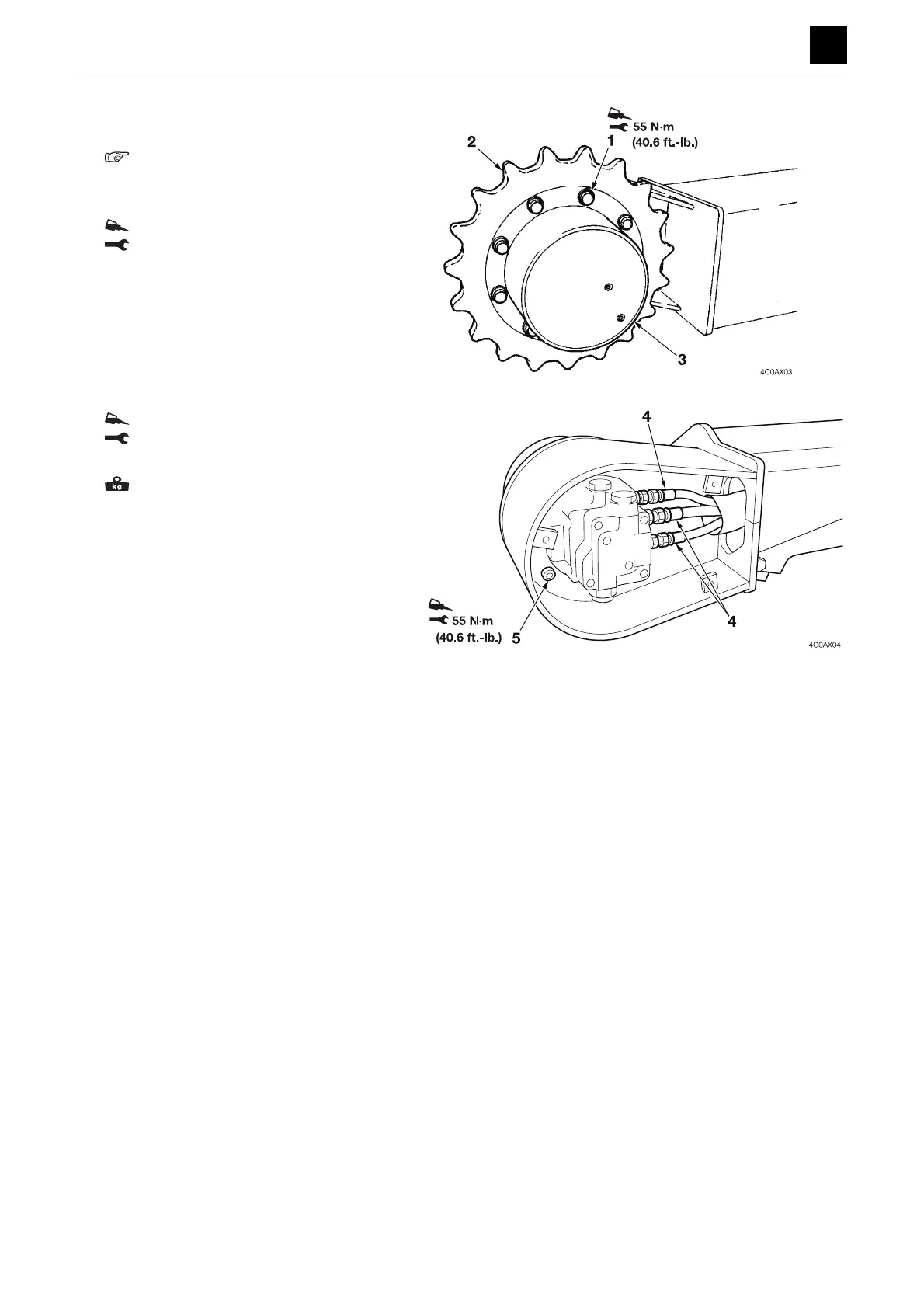

Removing the travel motor
1. Remove the crawler.
“Removing the crawler"
2. Take out the bolts (1), and remove the sprocket
(2).
Bolt: ThreeBond #1324
Bolt: 55 N·m (40.6 ft.-lb)
3. Remove the cover, and disconnect the hydraulic
hoses (4).
• Make sure to attach identification labels to
each of the hoses and the joints before dis-
connecting the hoses.
4. Hoist up the travel motor (3) temporarily, and re-
move the bolts (5).
Bolt: ThreeBond #1324
Bolt: 55 N·m (40.6 ft.-lb)
5. Raise the travel motor (3), and remove it.
Travel motor: 18 kg (40 lb)
Installing the travel motor
To install, follow the same procedures as for removal
but in the reverse order.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
