Takeuchi TB216 Workshop Manual

MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)

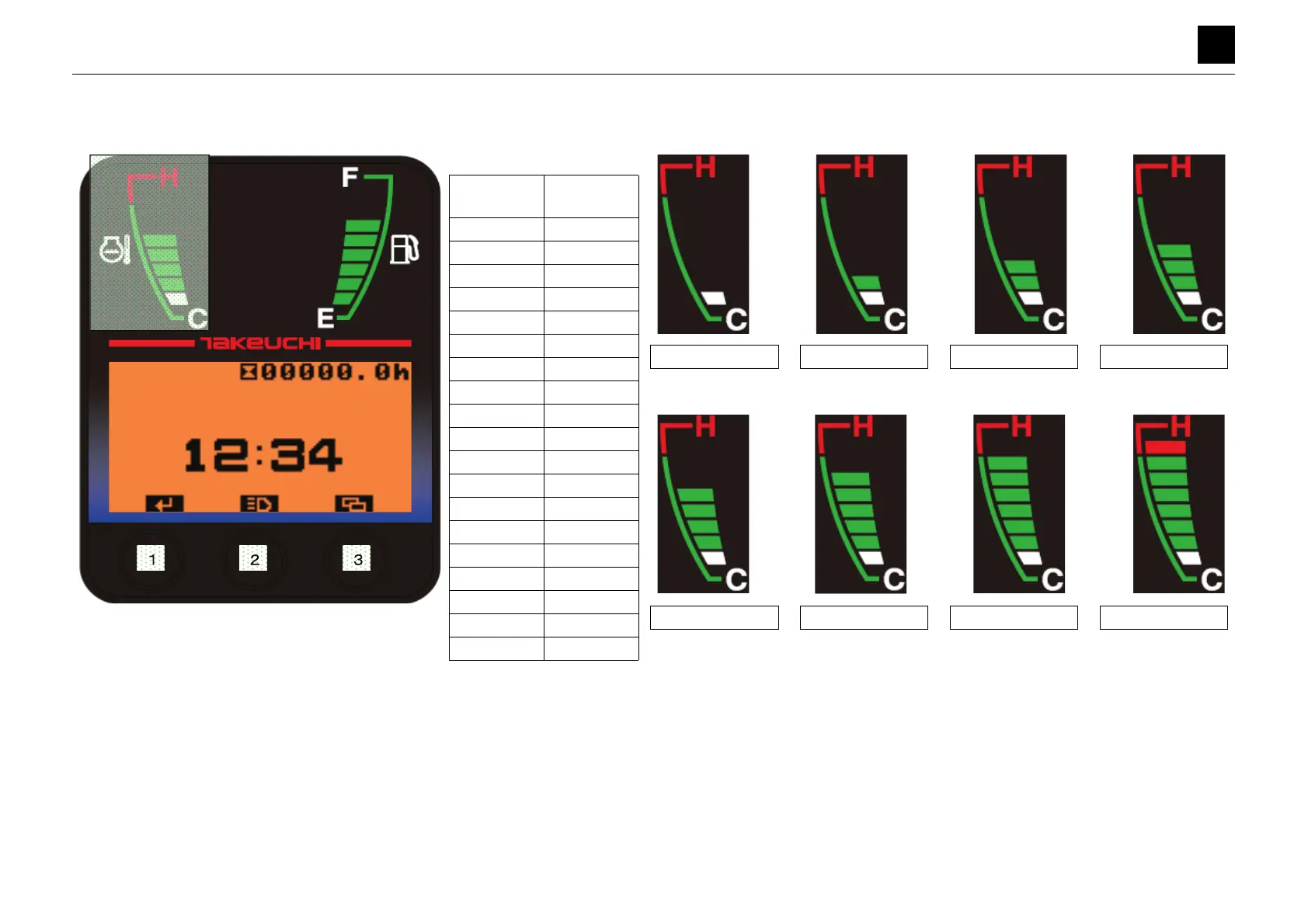

PANEL DISPLAY: WATER TEMPERATURE GAUGE
6
4
PANEL DISPLAY: WATER TEMPERATURE GAUGE 6S3AY00
PANEL DISPLAY: WATER TEMPERATURE GAUGE
Resistance characteristics
Temp.
[°C (°F)]
Resistance
[k
Ω]
-30 (-22) 25.4
-20 (-4) 15.04
-10 (14) 9.16
0 (32) 5.74
5 (41) 4.72
10 (50) 3.7
20 (68) 2.45
30 (86) 1.66
40 (104) 1.15
50 (122) 0.811
60 (140) 0.584
70 (158) 0.428
80 (176) 0.318
90 (194) 0.24
95 (203) 0.2118
100 (212) 0.1836
105 (221) 0.1627
110 (230) 0.1417
120 (248) 0.1108
80°C ≦ t < 95°C 95°C ≦ t < 105°C 105°C ≦ t <110°C 110°C ≦ t
t < 50°C 50°C ≦ t < 60°C 60°C ≦ t < 70°C 70°C ≦ t < 80°C
* Average values are used for the output values. (The average amount of movement over a
span of 5 seconds measured in 100-ms intervals.)
* Allowable error: ±5% (Allowable error for the water temperature gauge sensor parts listed
separately)

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
