Takeuchi TB216 Workshop Manual

5
4

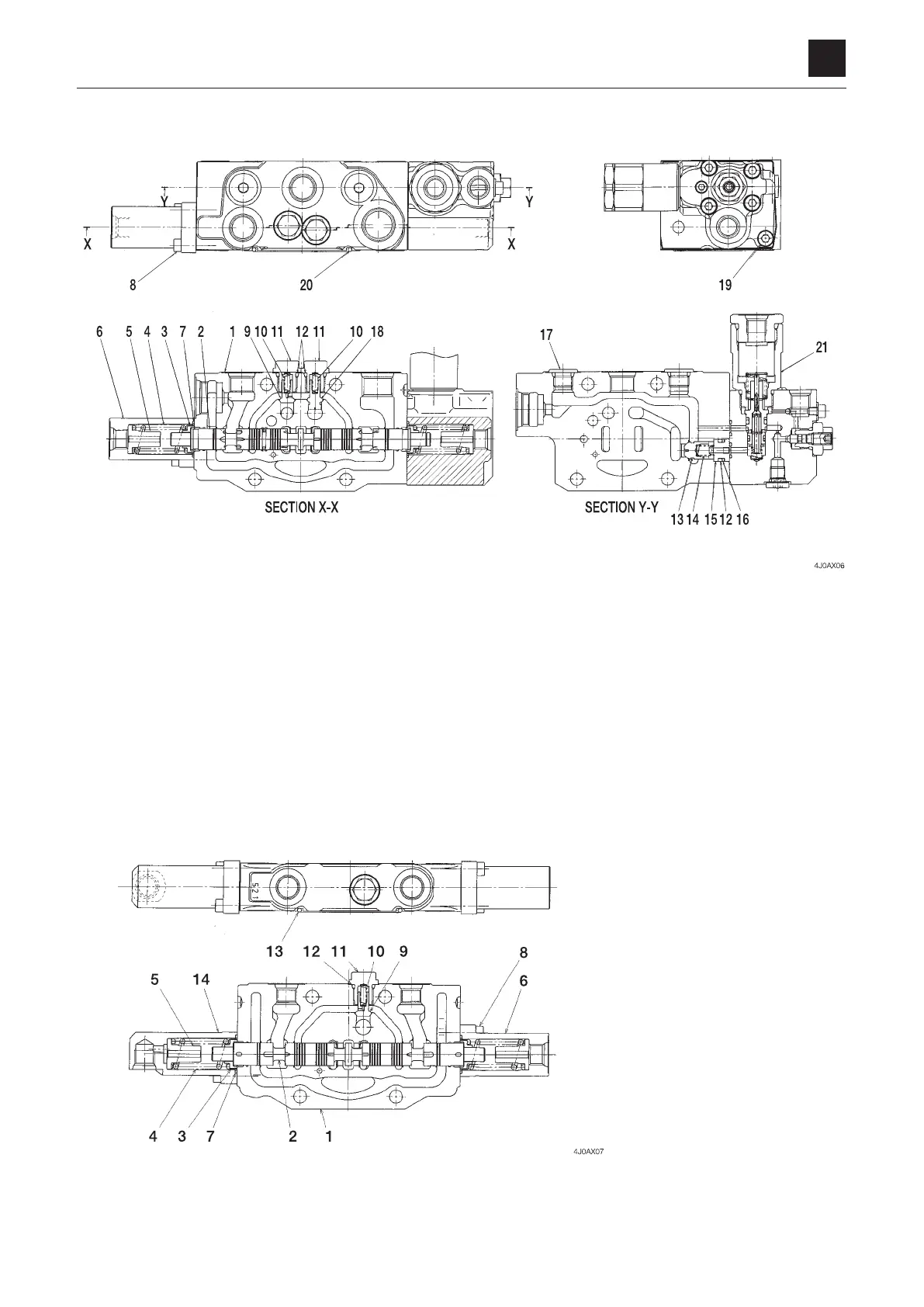

CONTROL VALVE
DISASSEMBLY AND ASSEMBLY
4J0AX00CONTROL VALVE
Boom section
1. Housing
2. Spool
3. Spring holder
4. Spring
5. Spring holder
6. Cover
7. O-ring
8. Cap screw
9. Poppet
10. Spring
11. Plug
12. O-ring
13. Poppet
14. Spring
15. Spacer
16. Backup ring
17. Plug
18. Poppet
19. Cap screw
20. O-ring
21. Anti drift valve
Slew section
1. Housing
2. Spool
3. Spring holder
4. Spring
5. Spring holder
6. Cover
7. O-ring
8. Cap screw
9. Poppet
10. Spring
11. Plug
12. O-ring
13. O-ring
14. Cover

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
