Takeuchi TB216 Workshop Manual

MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
DATA SELECTION SCREEN
9
6
DATA SELECTION SCREEN 6S3AY00
DATA SELECTION SCREEN

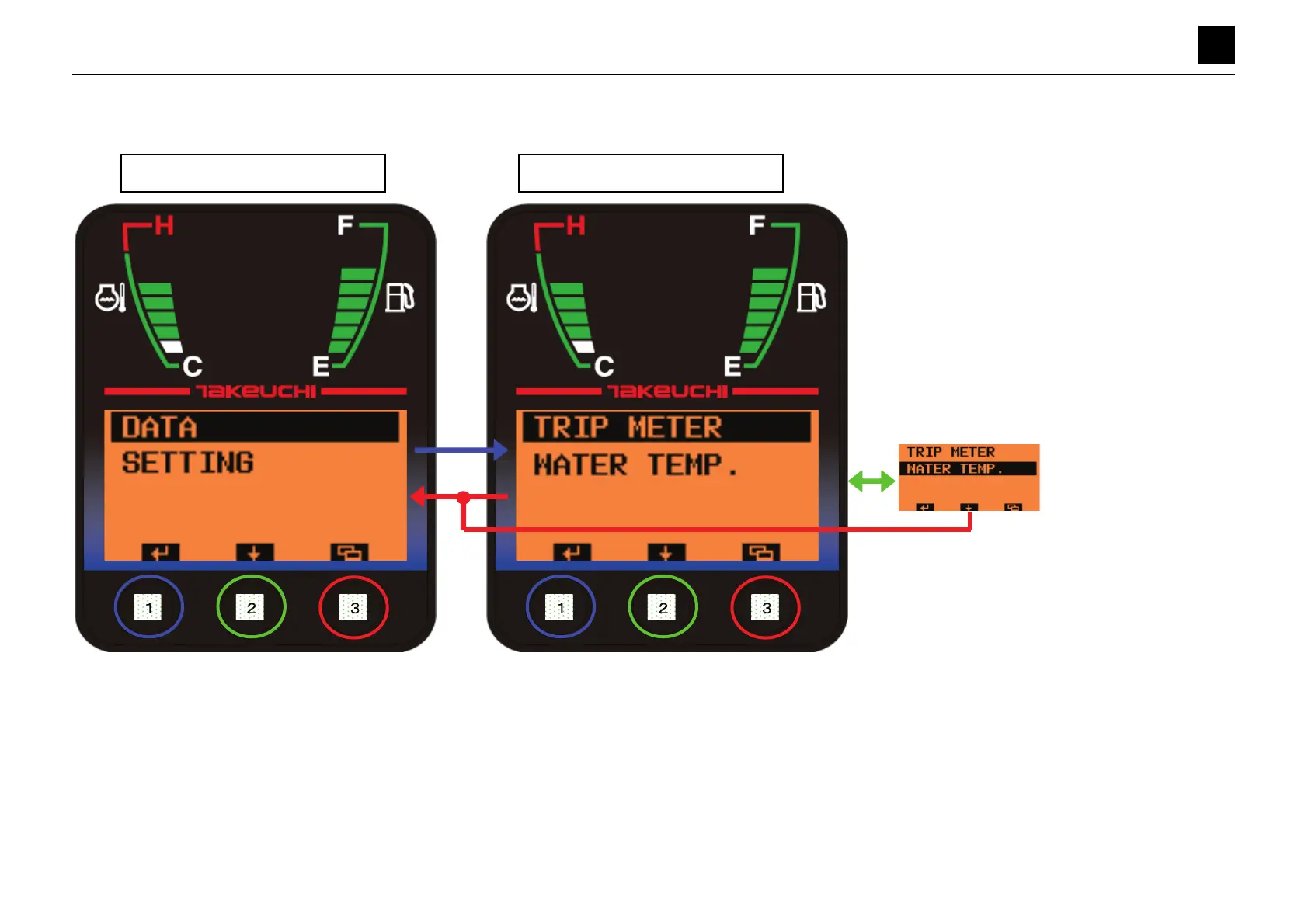

• Pressing Button [1] while [DATA] is highlighted moves the display to the Data Selection screen.
• Pressing Button [3] on the Data Selection screen for a short while moves the display to the Main Menu screen.
• Pressing Button [2] on the Data Selection screen for a short while moves the bar to the next option.
• Pressing Button [1] on the Data Selection screen for a short while moves the display to the Data screen for the highlighted option.
Main Menu Screen
Data Selection Screen

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
