Takeuchi TB216 Workshop Manual

FUNCTION
SELECTOR VALVE
3
3
SELECTOR VALVE 3K8AQ00

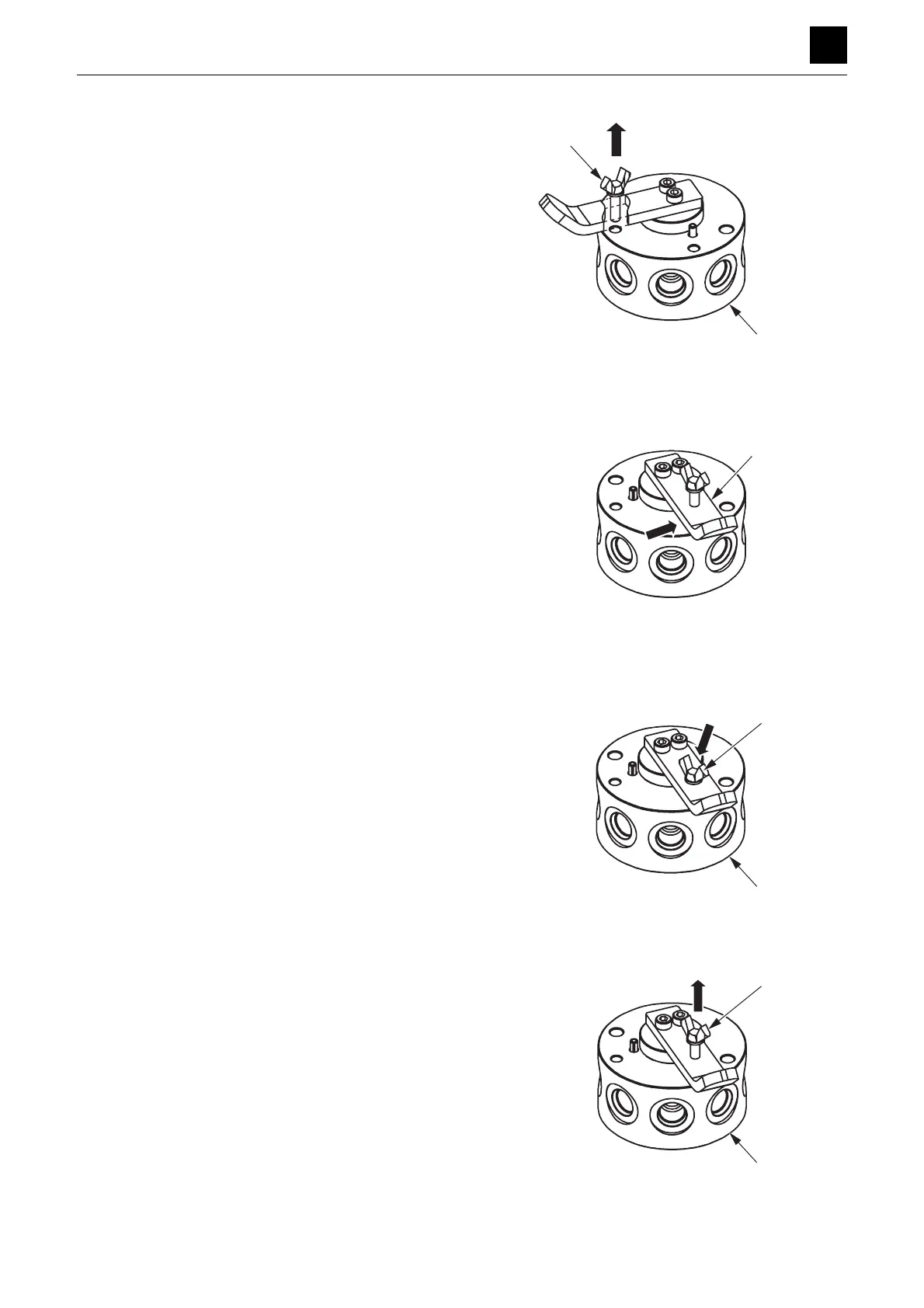

Switching from Position A (ISO) to Position G (JCB)
1. Loosen the wing bolt (1) enough for its end to
emerge from the hole in the body (2).
2. Turn the lever (3) counterclockwise 90°.
3. Tighten the wing bolt (1) by hand.
• The end of the wing bolt (1) should go into the
anti-rotation hole in the body (2).
Switching from Position G (JCB) to Position A (ISO)
1. Loosen the wing bolt (1) enough for its end to
emerge from the hole in the body (2).
3K8AQ03Z
1
2
3K8AQ04Z
3
3K8AQ05Z
1
2
3K8AQ06Z
1
2
