Takeuchi TB216 Workshop Manual

FUNCTION
SELECTOR VALVE
2
3

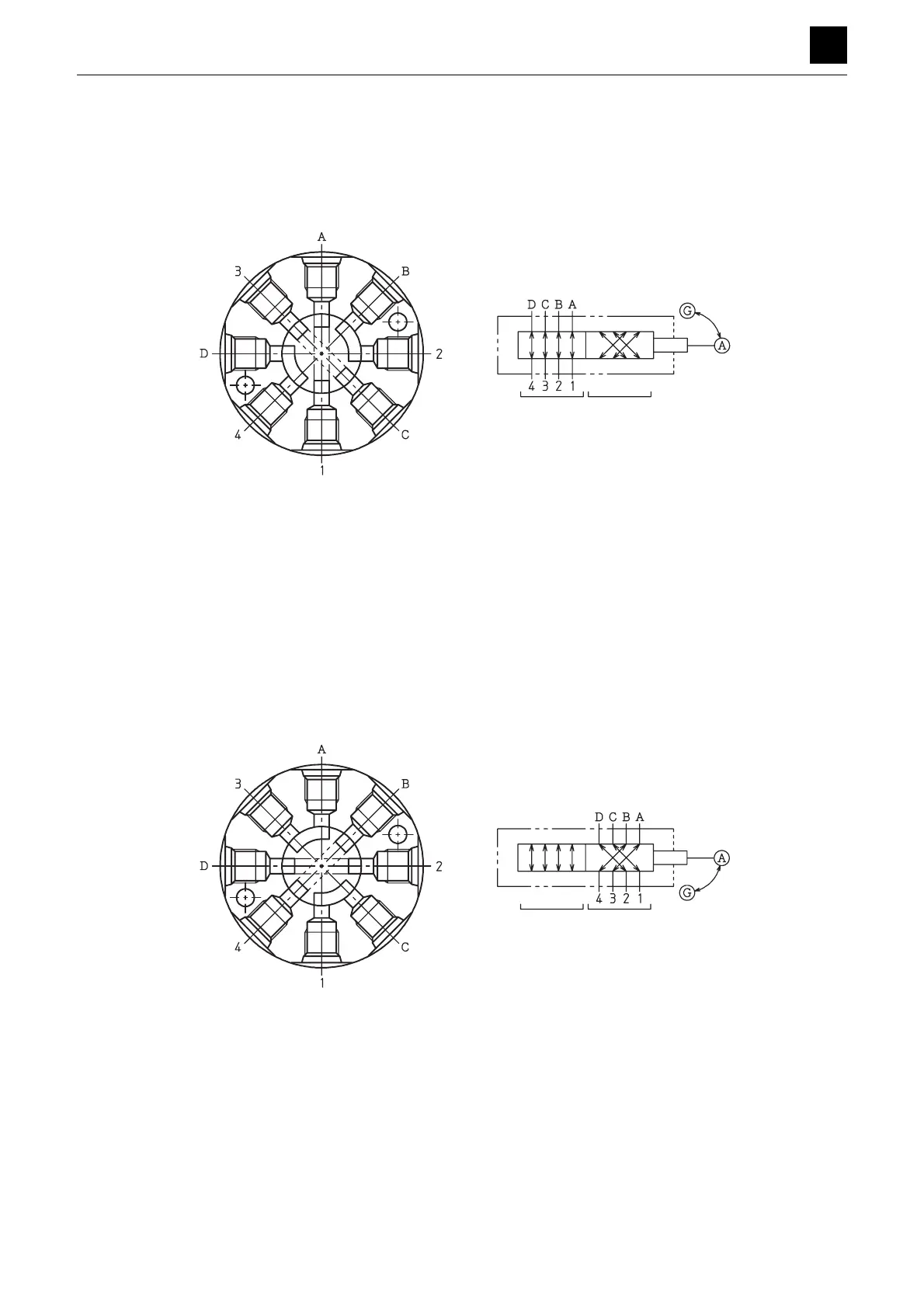

SELECTOR VALVE 3K8AQ00
Position A (ISO)
Port A ⇔ Port 1
Port B ⇔ Port 2
Port C ⇔ Port 3
Port D ⇔ Port 4
Position G (JCB)
Port A ⇔ Port 3
Port B ⇔ Port 4
Port C ⇔ Port 1
Port D ⇔ Port 2
1. Position A (ISO)
2. Position G (JCB)
3. Rotation of 90°
1. Position A (ISO)
2. Position G (JCB)
3. Rotation of 90°
3K8AQ01Z
12
3
3K8AQ02Z
12
3
