Takeuchi TB216 Workshop Manual

4
4

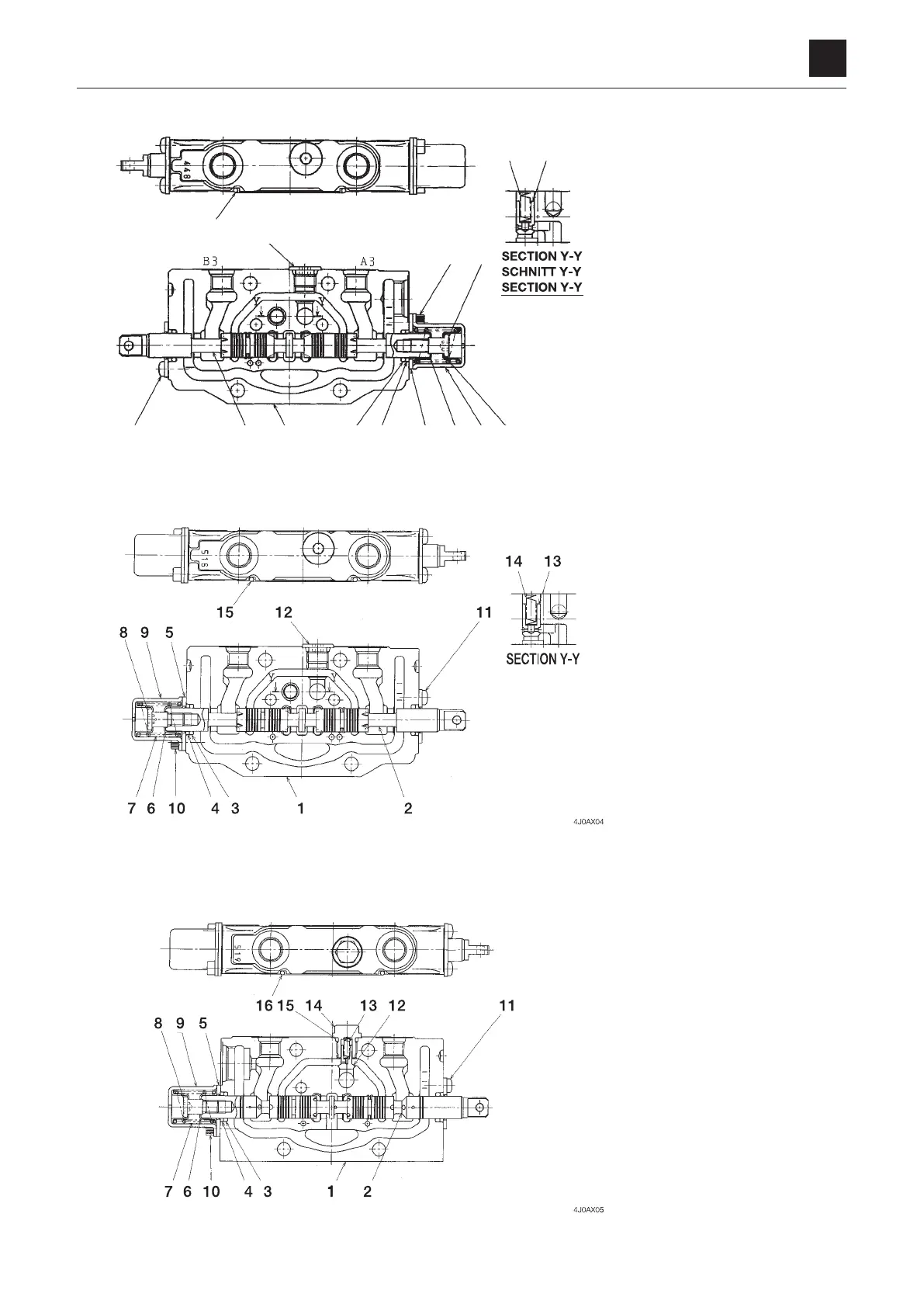

CONTROL VALVE
DISASSEMBLY AND ASSEMBLY
4J0AX00CONTROL VALVE
Right travel section
1. Housing
2. Spool
3. O-ring
4. Wiper
5. Seal holder
6. Spring holder
7. Spring
8. Screw
9. Cover
10. Cap screw
11. Screw
12. Plug
13. Poppet
14. Spring
15. O-ring
Left travel section
Swing section
-$,=




     
1. Housing
2. Spool
3. O-ring
4. Wiper
5. Seal holder
6. Spring holder
7. Spring
8. Screw
9. Cover
10. Cap screw
11. Screw
12. Plug
13. Poppet
14. Spring
15. O-ring
1. Housing
2. Spool
3. O-ring
4. Wiper
5. Seal holder
6. Spring holder
7. Spring
8. Screw
9. Cover
10. Cap screw
11. Screw
12. Poppet
13. Spring
14. Plug
15. O-ring
16. O-ring

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
