Takeuchi TB216 Workshop Manual

DISASSEMBLY AND ASSEMBLY
HYDRAULIC PUMP
3
4
HYDRAULIC PUMP 4I0AY001

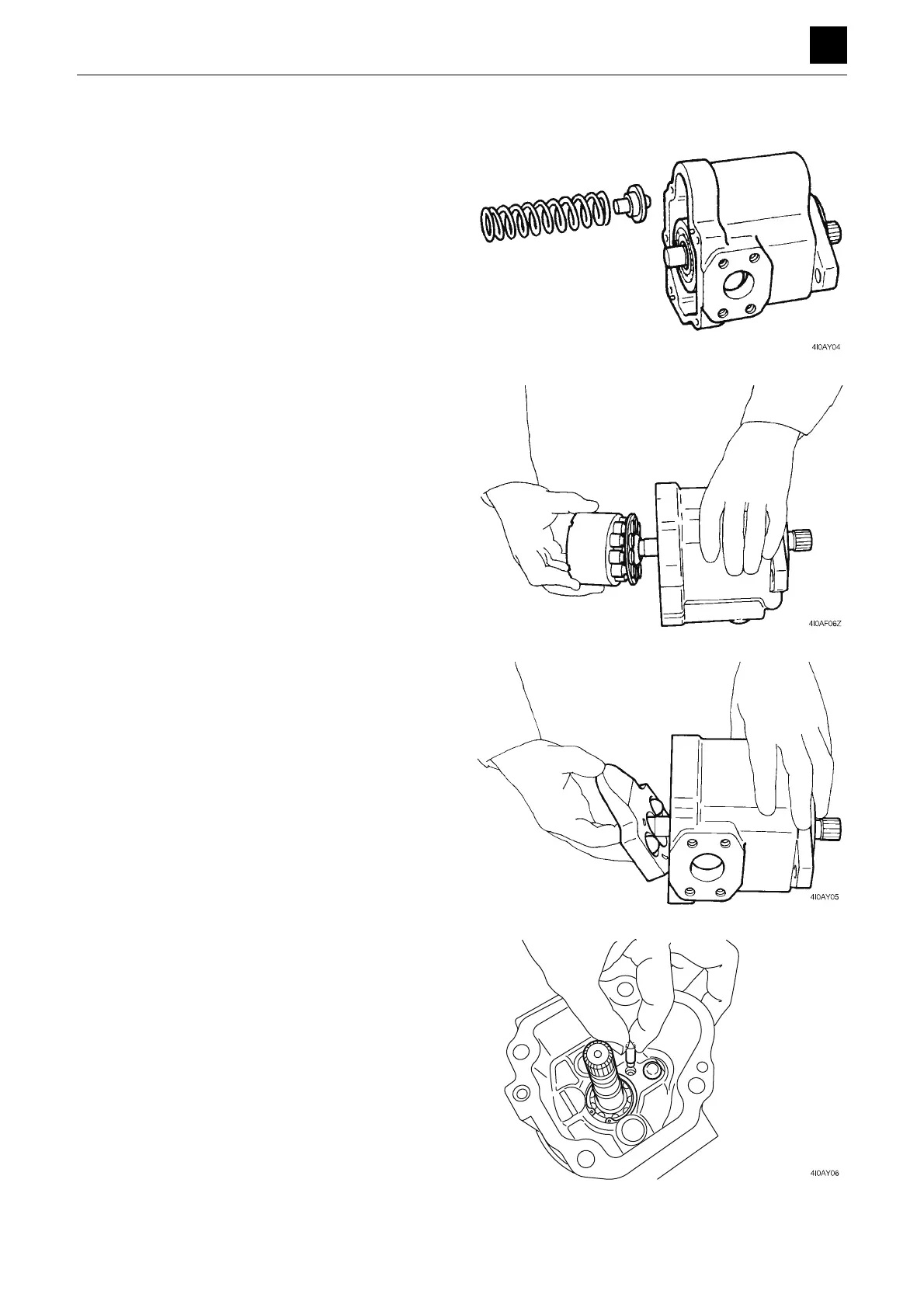

4. Remove the spring (15) and spring holder (16) from
the body S (1).
5. Remove the cylinder block (4) from the body S (1).
6. Remove the swash plate (10) and the oscillating pin
(12) from the body S (1).
7. Remove the stopper pin A (21), belleville spring (26),
and piston (19) from the body S (1).
• To avoid errors during reassembly, store these
parts in the proper order and arrangement.
8. Remove the snap ring (27) from the shaft end of the
body S (1).

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
