SOLENOID VALVE (LEVER LOCK)
DISASSEMBLY AND ASSEMBLY

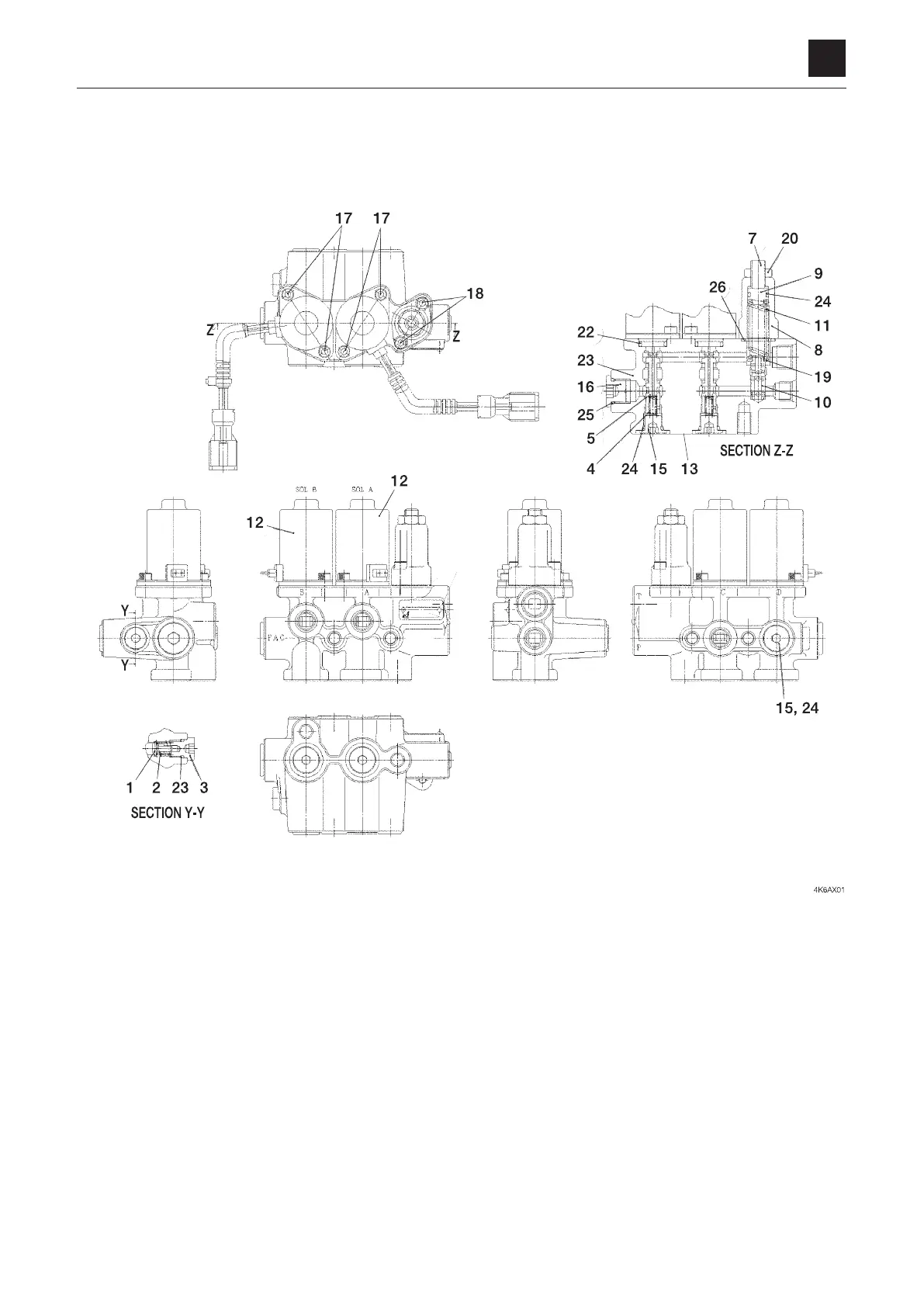

4K6AX002SOLENOID VALVE (LEVER LOCK)
1. Plunger
2. Spring
3. Plug
4. Spring
5. Spool
7. Adjust screw
8. Cover
9. Plug
10. Plunger
11. Spring
12. Solenoid
13. Body
15. Plug
16. Plug
17. Cap screw
18. Cap screw
19. Washer
20. Nut
22. O-ring
23. O-ring
24. O-ring
25. O-ring
26. O-ring
SOLENOID VALVE (LEVER LOCK)
Construction
