Takeuchi TB225 User Manual

5-54
MAINTENANCE
WHEN REQUIRED

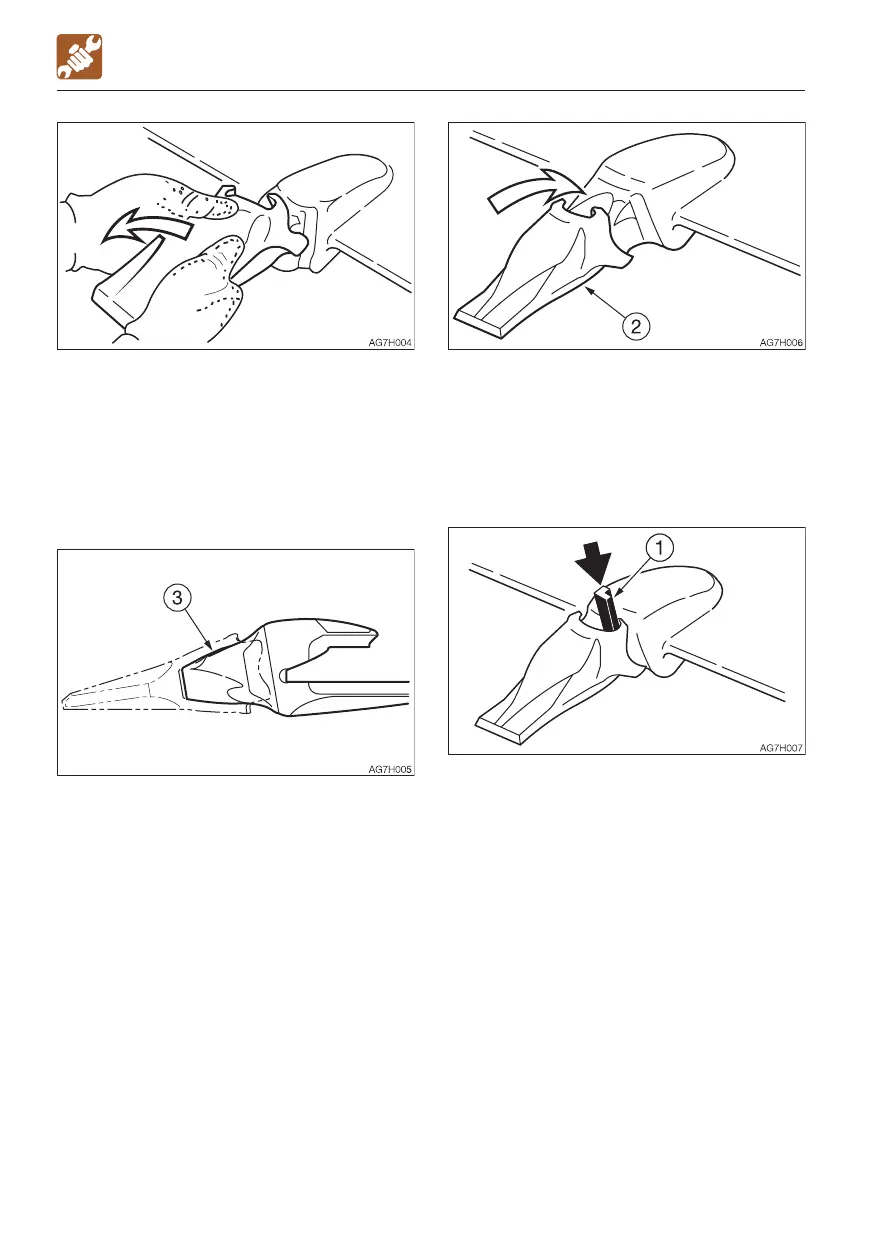

5. Remove the tooth point (2). Some tooth
points (2) are of the type that are removed
by turning (twisting) them
counterclockwise.
The same procedure can be used to
remove the other tooth points.
Installation
1. Clean the adapter nose (3). If there is
gravel or mud on the adapter nose, the
tooth point will not go in all the way and
the pin cannot be driven in.
2. Put the tooth point (2) in the adapter nose
(3).
Push in firmly until the tooth point (2)
touches the tip of the adapter nose(3).
Some tooth points (2) are of the type that
are installed by turning (twisting) them
clockwise.
3. Insert the locking pin (1), making sure it is
in the right direction.
