5-55
MAINTENANCE
WHEN REQUIRED

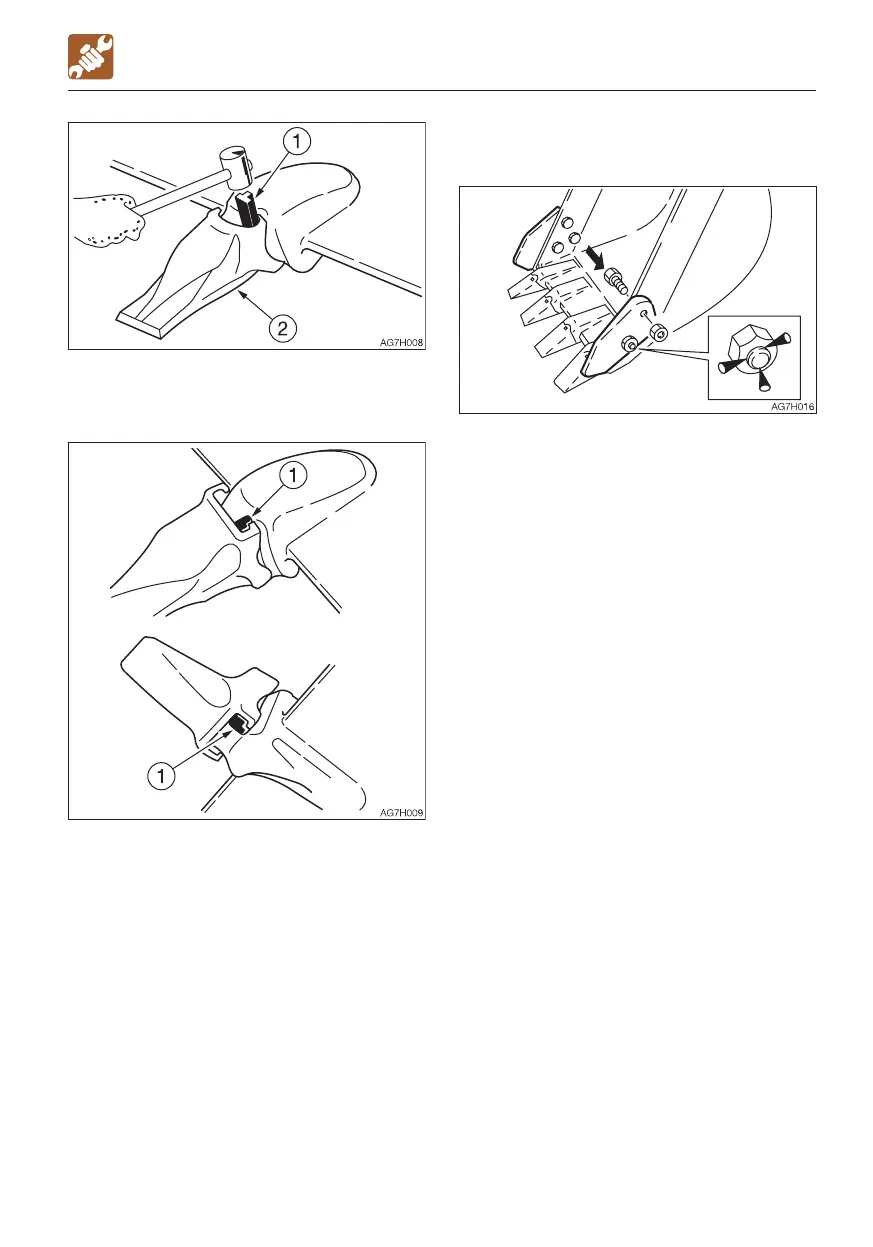

4. Drive in the locking pin (1) with a hammer
until it is flush with the tip of the tooth
point (2) ear.
5. The locking pin (1) is now driven in.
The same procedure can be used to install
the other tooth points.
• Side cutter
Installation
1. Insert the bolts from the inner of the
bucket and tighten the side cutterwith
nuts.
Tightening torque: 241 N·m (178 ft-lb)
2. Caulk the bolts with a punch at three
spots along the periphery of the screw to
prevent the nuts from coming loose.
