CONTROLS

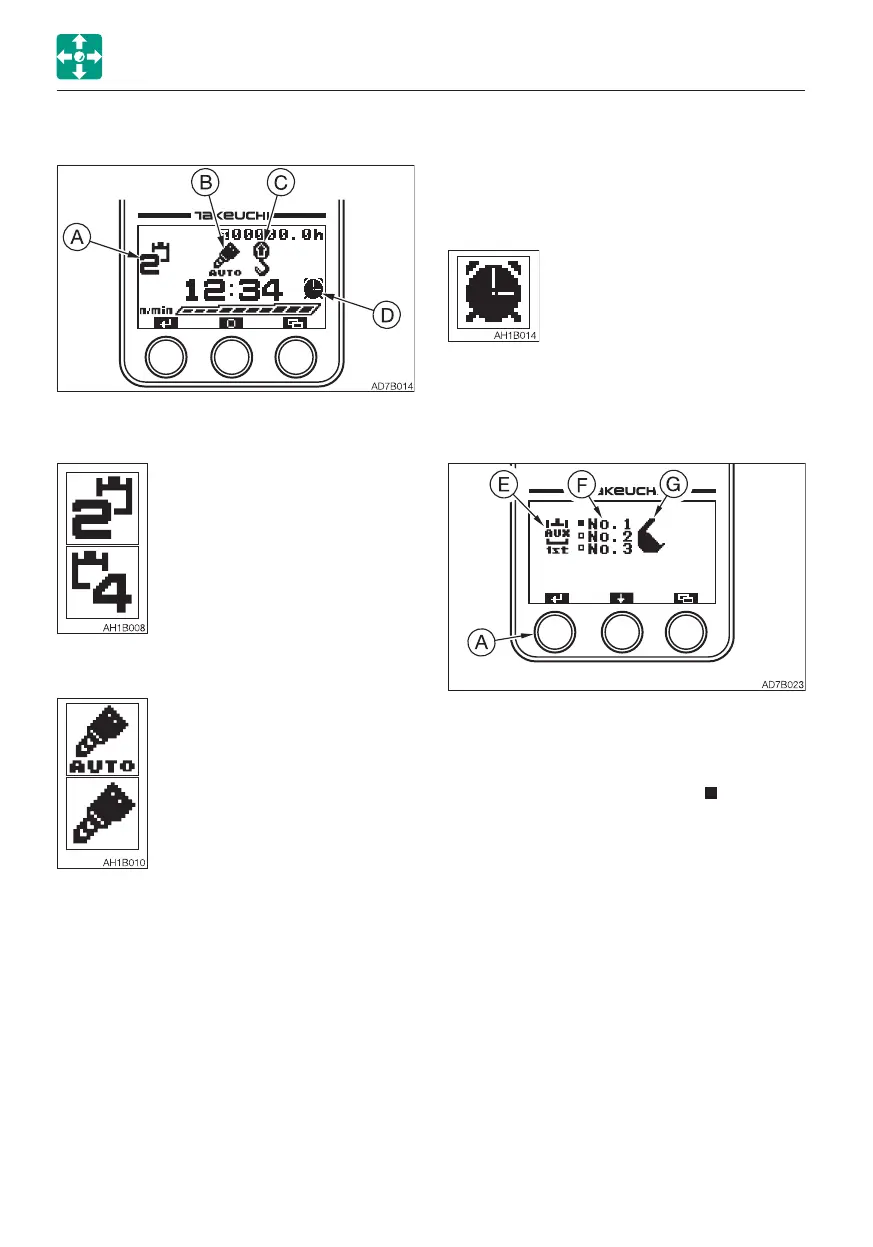

INSTRUMENT CLUSTER
A. Auxiliary 2nd/4th selection
........ Auxiliary 2nd is selected.
........ Auxiliary 4th is selected.
B. Auxiliary 1st One-way (one-way circuit)
........ Auxiliary 1st auto tank is
selected.
........ Auxiliary 1st one-way is
selected.
No display: ..... Two-way (two-way circuit)
is selected.
C. Lift overload warning
Displays the symbol when the lift overload
warning switch is turned on.
D. Alarm
5. Functions (Page 1)
Displays the clock symbol when
the alarm function is turned on.
Refer to “Alarm setting” on
page 2-27.
6. Function indicators (Page 2)
When the (A) key is pressed, the display
changes as the following.
E. Auxiliary 1st indicator
F. Auxiliary 1st flow rate selection
indicator
Press the (B) key to move the
and select
the desired flow rate.
Refer to “Auxiliary 1st Flow Rate Setting”
on page 2-29.

Takeuchi TB225 Specifications

General

Engine Make	Yanmar
Max Dig Depth	2, 580 mm
Bucket Capacity	0.03 - 0.11 m3
Max Reach	7, 010 mm
Max Digging Depth	3, 870 mm
