Takeuchi TB53FR - Dimensions

SPECIFICATIONS
II-4
TB53FR
DIMENSIONS

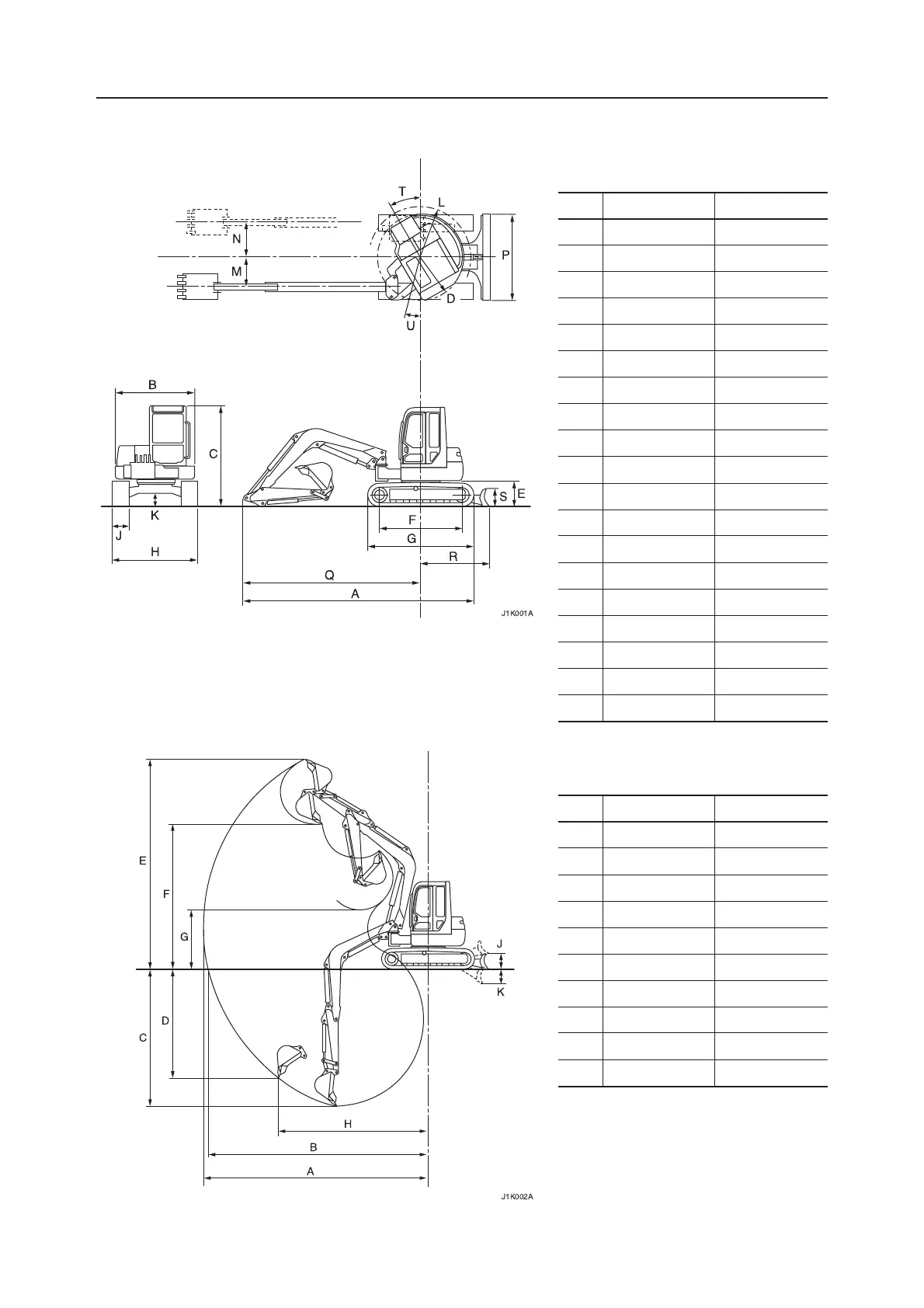

Machine Dimensions
Unit: mm
Canopy
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
5330
1860
2580
1000
615
1985
2500
2000
400
300
1285
720
825
2000
4085
1520
430
30°
15°
DIMENSIONS
Cab
←
←
2565
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
Operating Range
Unit: mm
Canopy
A
B
C
D
E
F
G
H
J
K
5905
5765
3590
2780
5535
3880
1515
3885
335
320
Cab
←
←
←
←
←
←
←
←
←
←
J1K001A
N
L
M
D
Q
P
J
H
K
C
F
G
A
S
E
B
R
T
U
J1K002A
D
J
H
K
C
F
G
A
E
B
