Takeuchi TB53FR - Interference Prevention System

MACHINE CONFIGURATION
INTERFERENCE PREVENTION SYSTEM
III-43 TB53FR
INTERFERENCE PREVENTION SYSTEM
CONSTRUCTION

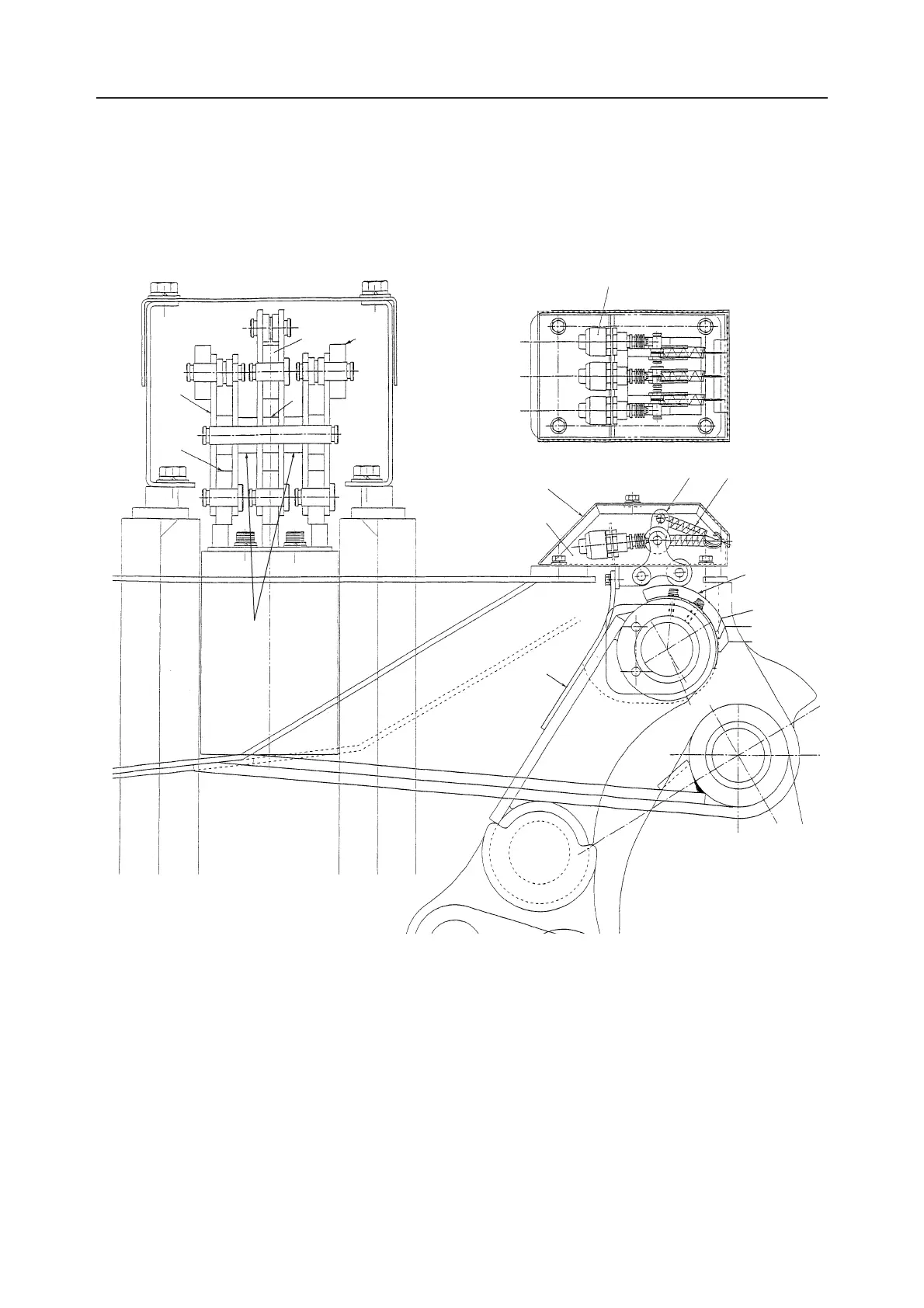

Interference sensors
Boom switches
A: to decelerate boom raising speed
B: to prevent interference between boom and cab
C: to prevent interference between bucket and cab
D: Boom deceleration detection position
E: Boom interference detection position
F: Bucket interference detection position
1. Switch Box
2. Cover
3. Cam Plate
4. Link Plate
5. Collar
6. Rubber Plate
7. Link Plate
8. Collar
9. Collar
10. Spring
11. Switch
J1C900
8
8
7
8
9
5
A
B
C
11
1
2
4
10
3
D
E
F
6
