Takeuchi TB53FR - Control System

MACHINE CONFIGURATION
CONTROL SYSTEM
III-23 TB53FR
CONTROL SYSTEM

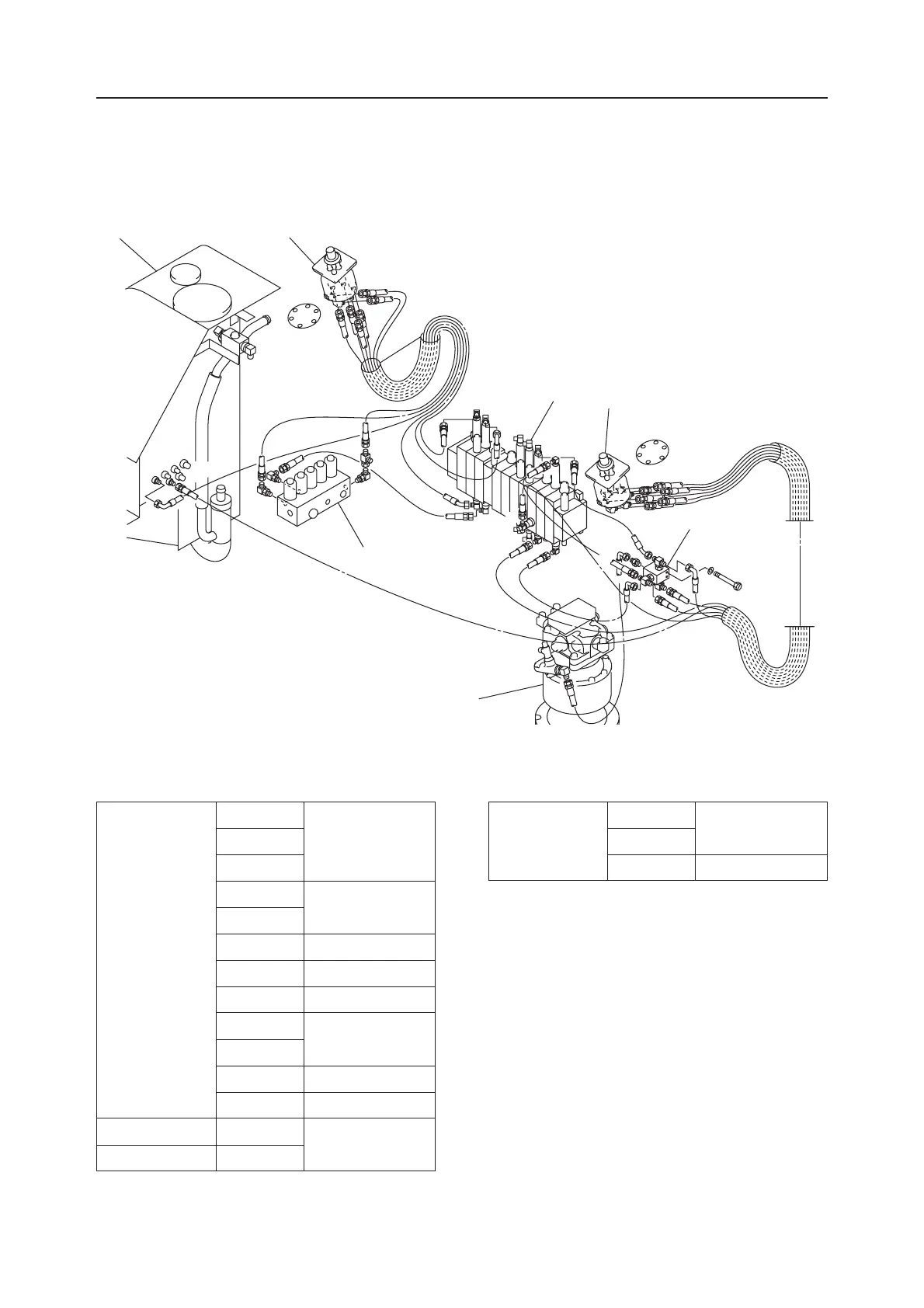

Hydraulic Pilot Unit
A Type (ISO) – 1/2
♦ Table of Connections ♦
Pilot Valve
Control Valve
R1 ↔ B1
R2 ↔ A2
R3 ↔ A1
R4 ↔ A2
RP ↔ P
RT ↔ T
L1 ↔ WB
L2 ↔ B7
L3 ↔ WC
L4 ↔ WA
LP ↔ P1
LT ↔ T
B2 ↔ B2
WA ↔ A7
Solenoid Valve
1. Right Pilot Valve
2. Left Pilot Valve
3. Solenoid Valve
4. Control Valve
5. Hydraulic Tank
6. Shuttle Valve
7. Slew Motor
Shuttle Valve
Control Valve
Tank
Control Valve
Solenoid Valve
Shuttle Valve
WB ↔ A8
WC ↔ B8
WD ↔ SH
Control Valve
Shuttle Valve
Tank
Shuttle Valve
Control Valve
Slew Motor
L1
L2
L3
L4
LT
LP
R1
R2
R3
R4
RT
RP
WA
WA
WB
WB
WC
WC
WD
P
A2
B2
SH
B8
P1
B7
B2
B1
A8
A7
A2
A1
J1C501
5
1
4
2
6
7
3
