Takeuchi TB53FR - Operating Procedures

MACHINE CONFIGURATION
CONTROL SYSTEM
III-24TB53FR
OR ↔ B5
OL ↔ A1
OP ↔ LC
OT ↔ T
PB2 ↔ PG
PB1 ↔ P1
PA ↔ P
B ↔ A6
A ↔ B6
T ↔ T
B1 ↔ A5
Dr ↔ T
G ↔ T
P1 ↔ P
PG ↔ OP
A Type (ISO) – 2/2

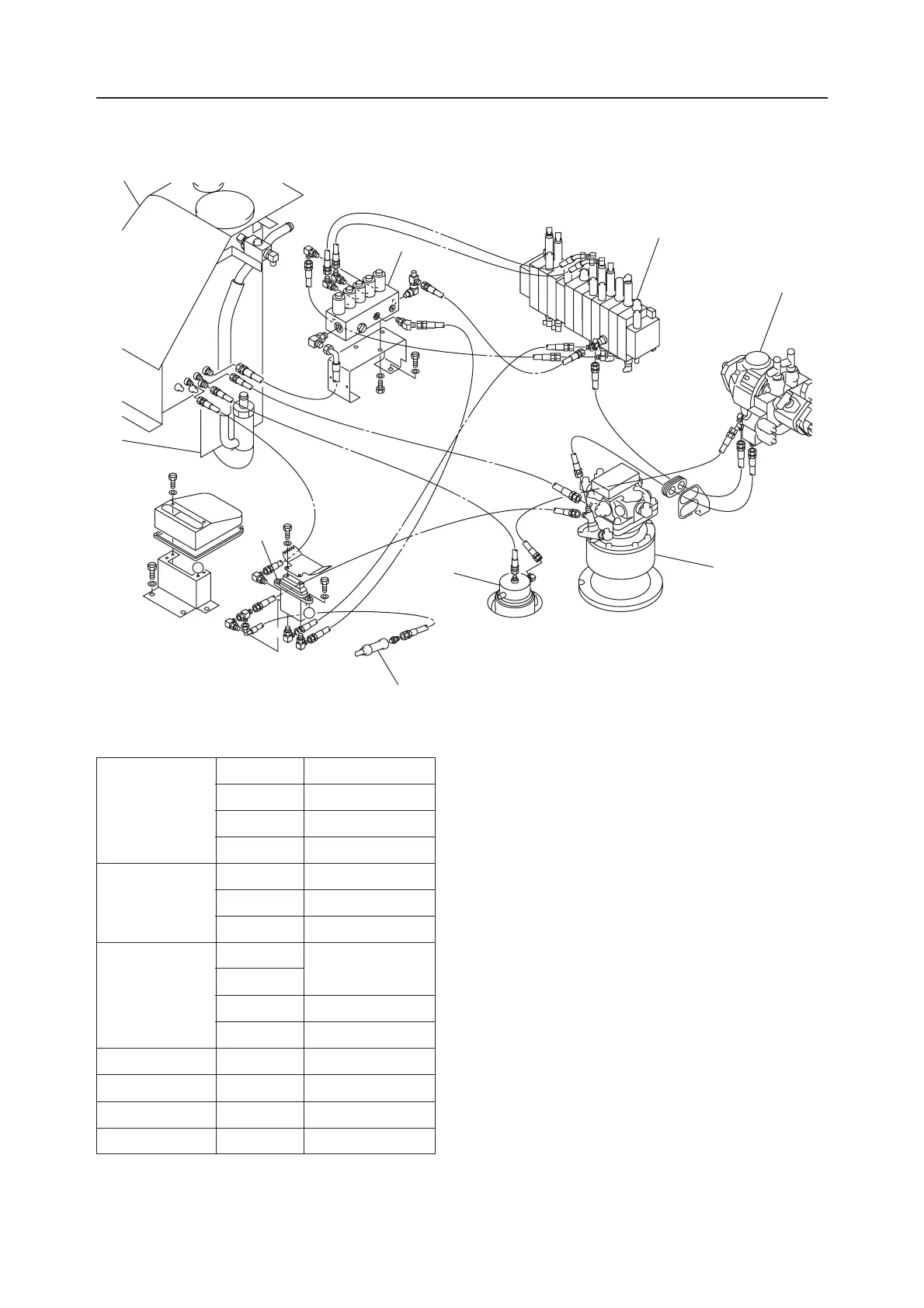

♦ Table of Connections ♦
Pilot Valve
(Offset)
Control Valve
Solenoid Valve
Lock Cylinder
Tank
Slew Motor
Control Valve
Swivel Joint
1. Pilot Valve (Offset)
2. Pump
3. Solenoid Valve
4. Control Valve
5. Hydraulic Tank
6. Slew Motor
7. Lock Cylinder
8. Swivel Joint
Control Valve
Tank
Tank
Tank
Solenoid Valve
Pilot Valve (Offset)
Slew Motor
Pump
Solenoid Valve
Control Valve
Swivel Joint
Control Valve
Slew Motor
PG
PG
Dr
P
A1
A
T
B1
B
PA
PB1
PB2
A5
A6
B5
B6
P1
P1
G
P
LC
OL
OR
OP
OT
X
X
J1C502
5
3
4
2
6
8
7
1
