176
OPTIONS
Factory option
An alarm is sounded when the machine
travels and stops when traveling is stopped.
If the alarm does not sound when the
machine travels, the fuse may be blown.
Inspect the fuse.
WARNING
If the fuse which has just been replaced
should blow again, there is a problem in
the electrical system. This could cause
fires. Contact a Takeuchi dealer.
1. Park the machine in a safe place.
2. Set the starter switch to OFF.

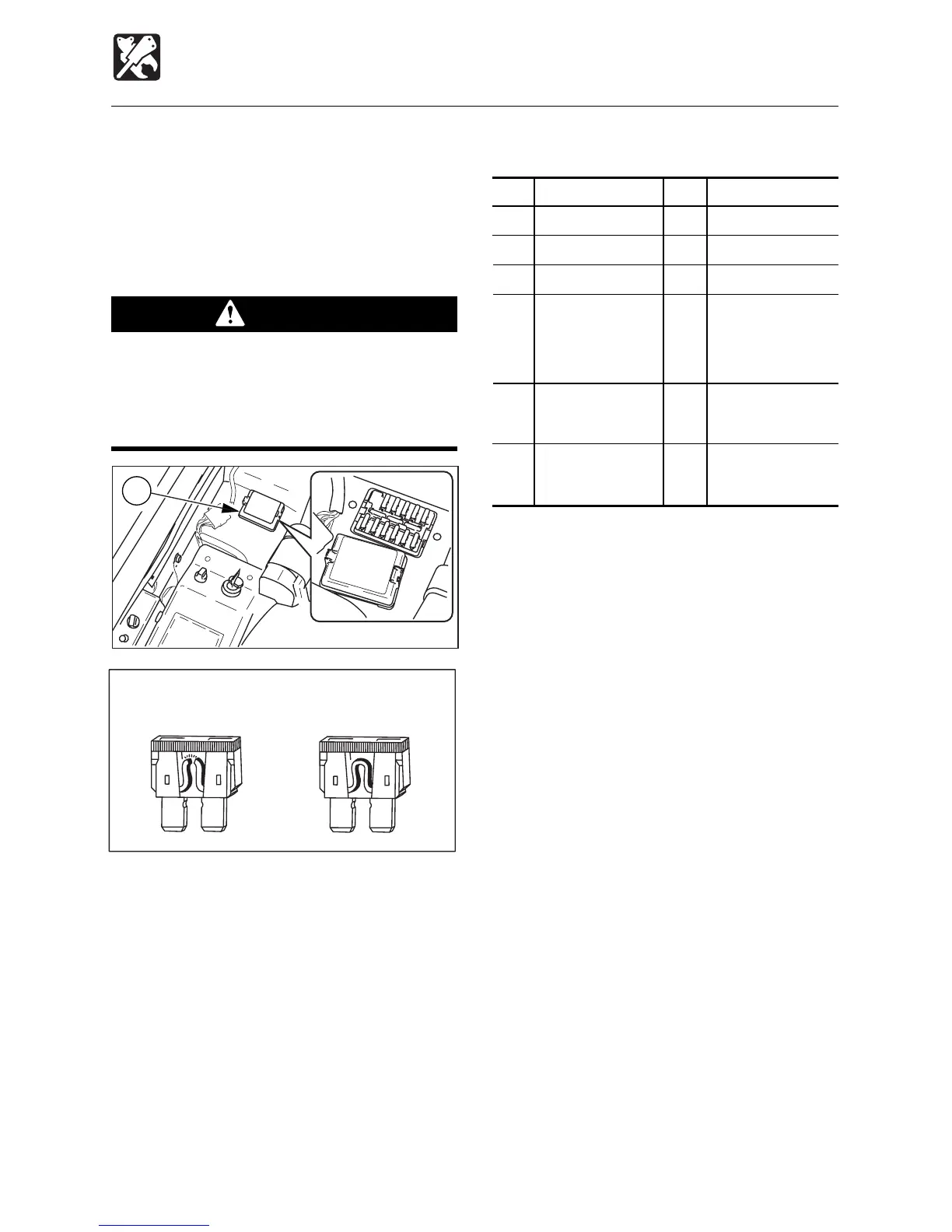

3. Open the fuse box cover (1).
4. Inspect for blown fuse.
5. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Travel Alarm
E4J007
NormalBlown
J1J001
1
Fuse Layout and Circuits Protected
Capacity Capacity
Protected circuit Protected circuit
20A Deceleration (B)
30A Third aux.hydraulics
10A Second travel speed
10A Instrument cluster,
Feed pump
15A Heater,
Radio
20A Wiper,
Cigarette lighter
15A Solenoid A, B
20A Lights
20A Deceleration (ACC),
Lever lock,
Travel alarm
15A External power socket
30A Stop solenoid
To Next Page
