Takeuchi TB53FR - Machine Operation

66
OPERATION
Machine Operation

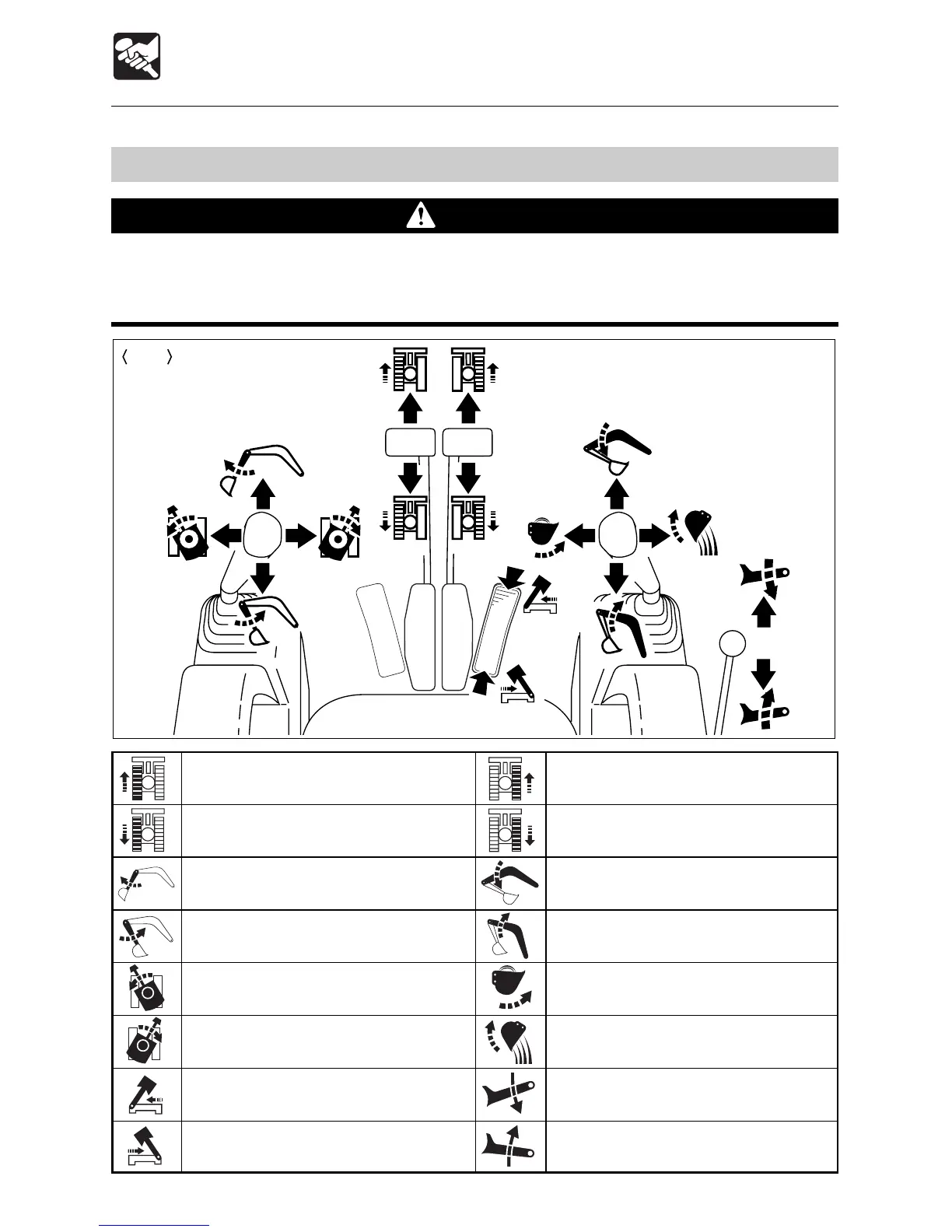

Lever Pattern (ISO Pattern)
WARNING
¡¡
¡¡
¡Be careful to check which pattern of lever control arrangement you are operating
with before beginning operations.
¡¡
¡¡
¡The explanations in this manual are for the ISO pattern.
Left Crawler Forward
Left Crawler Reverse
Arm Out
Arm In
Upperstructure Left Slew
Upperstructure Right Slew
Boom Offset Left
Boom Offset Right
Right Crawler Forward
Right Crawler Reverse
Boom Lower
Boom Raise
Bucket Load
Bucket Dump
Dozer Blade Lower
Dozer Blade Raise
L2D0041
ISO
