3

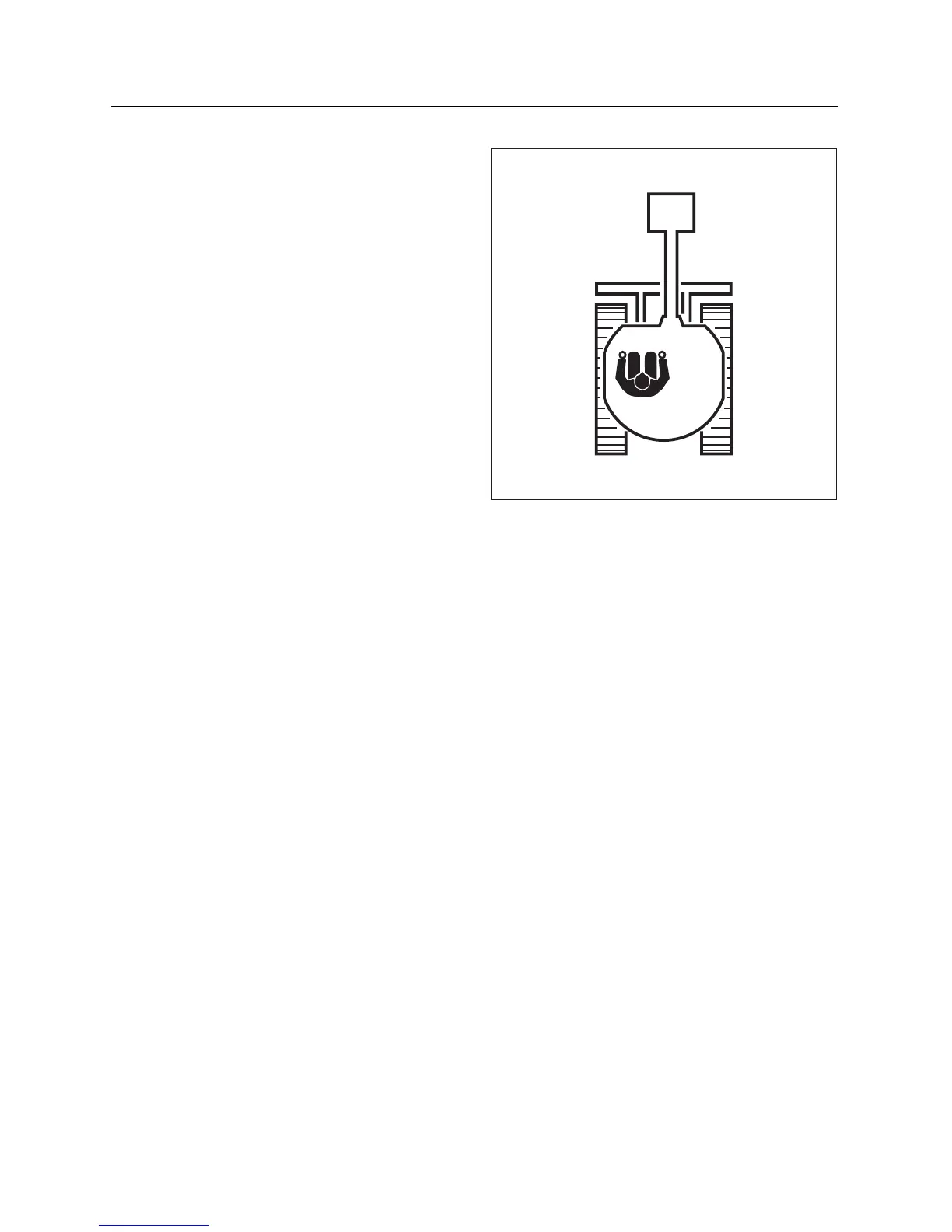

■ Front, rear, Ieft and right
This manual refers the front, rear, left and
right of the machine as seen when sitting in
the operator’s seat with the dozer blade
visible to the front.
■ Designated operations
Use this machine primarily for the following
operations:
¡Excavating
¡Digging ditches
¡Digging side ditches
¡Leveling
¡Loading
■ Features
¡A unique adjustable offset boom system
¡Short tail swing radius
¡Short pitch rubber crawler
¡Low engine noise and exhaust emissions
¡Pilot operated joystick controls
¡One toutch engine deceleration button is located on the righthand joystick control
¡Slew cushioning system for easy bucket positioning
¡Engine emergency stop/idle system
¡Tilt-up operators platform for easy access to major compartment
■ Break-in period
When the machine is new, heed the instructions below when operating the machine for the
first 100 hours (as indicated on the hour meter).
Using a new machine roughly without breaking it in will lead to quicker deterioration of machine
performance and may shorten the machine’s service life.
¡Warm up the engine and hydraulic oil sufficiently.
¡Avoid heavy loads and rapid operations. Operate with a load of about 80% the maximum
load.
¡Do not start up, accelerate, change directions, or stop abruptly unless necessary.
MACHINE DESCRIPTlON
RIGHTLEFT
REAR
FRONT
D5A003
