OPTIONS
Load Safety Device
The load safety devices include an
emergency shut-off valve and an overload
warning device. The emergency shut-off
valve stops the boom or arm part way
through a fall. The overload warning device
sounds an alarm when an excessive load is
applied.
Emergency shut-off valve
When the hose of the boom or arm cylinders
are ruptured and the boom or arm falls, the
emergency shut-off valve is activated and
stops the boom or arm part way through the
fall.
WARNING
If the boom or arm drops and the
emergency shut-off valves are activated,
immediately move away from the
suspended object.

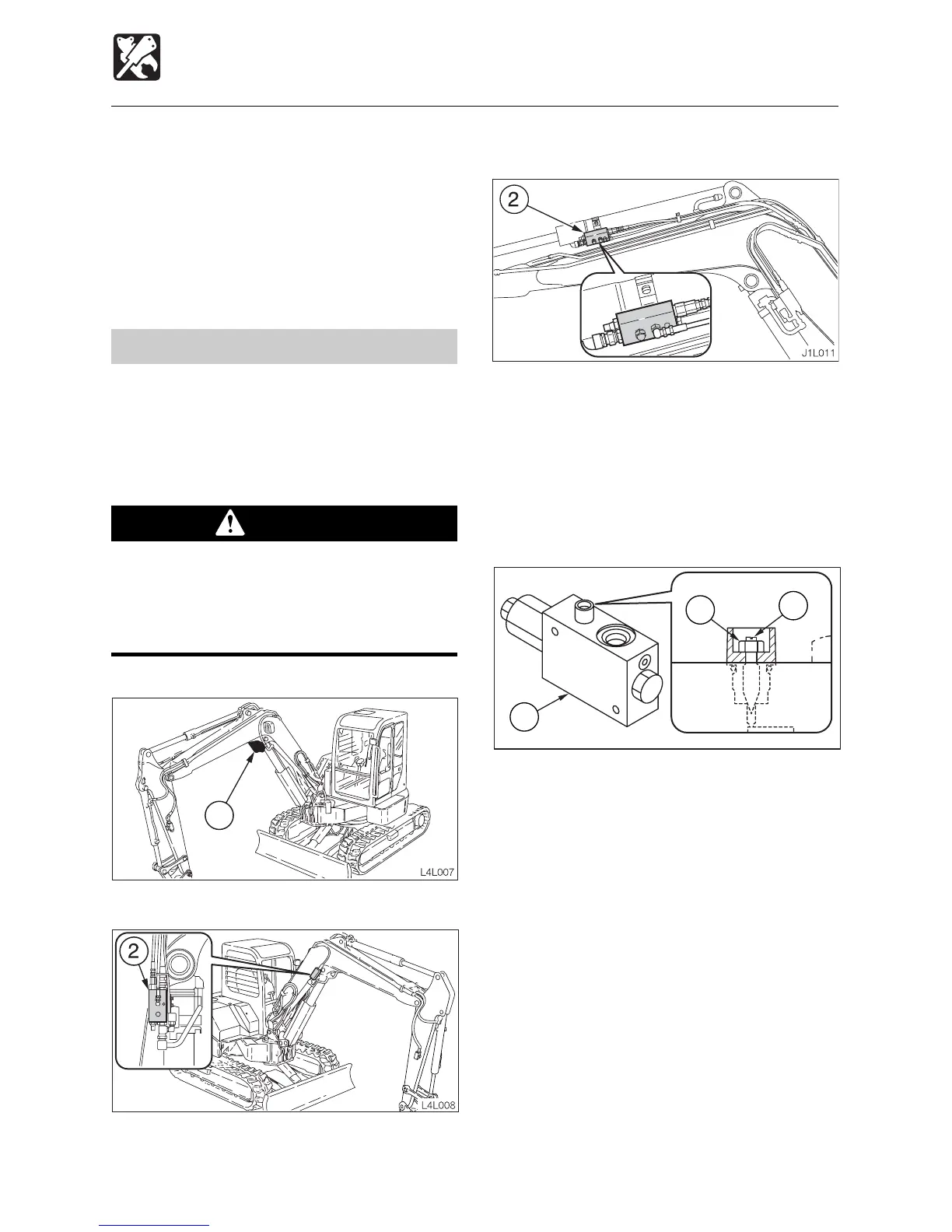

Boom / Type A
Boom / Type B
Arm / Type B
If the emergency shut-off valves (1) or (2)
are activated, immediately set the operating
lever to the neutral position. Do not move
the operating lever to the boom or arm
lowering side. Contact a Takeuchi dealer for
maintenance.
Type A
1. Check for safety in the working area and
for stability of the machine and lifted load.
2. Loosen the emergency shut-off valve’s
lock nut (3) and stem (4) to lower the
boom.
3. Check for stability of the hoe attachment
and load.
4. Tighten the stem (4) secure it with the lock
nut (3).
Tightening torque:
• Stem (4) 1.0 to 1.5 N·m (0.7 to 1.1 ft-lb.)
• Lock nut (3) 3.9 to 4.4 N·m (2.9 to 3.3 ft-lb.)
1
L4L004
1
3
4
