CONTROLS

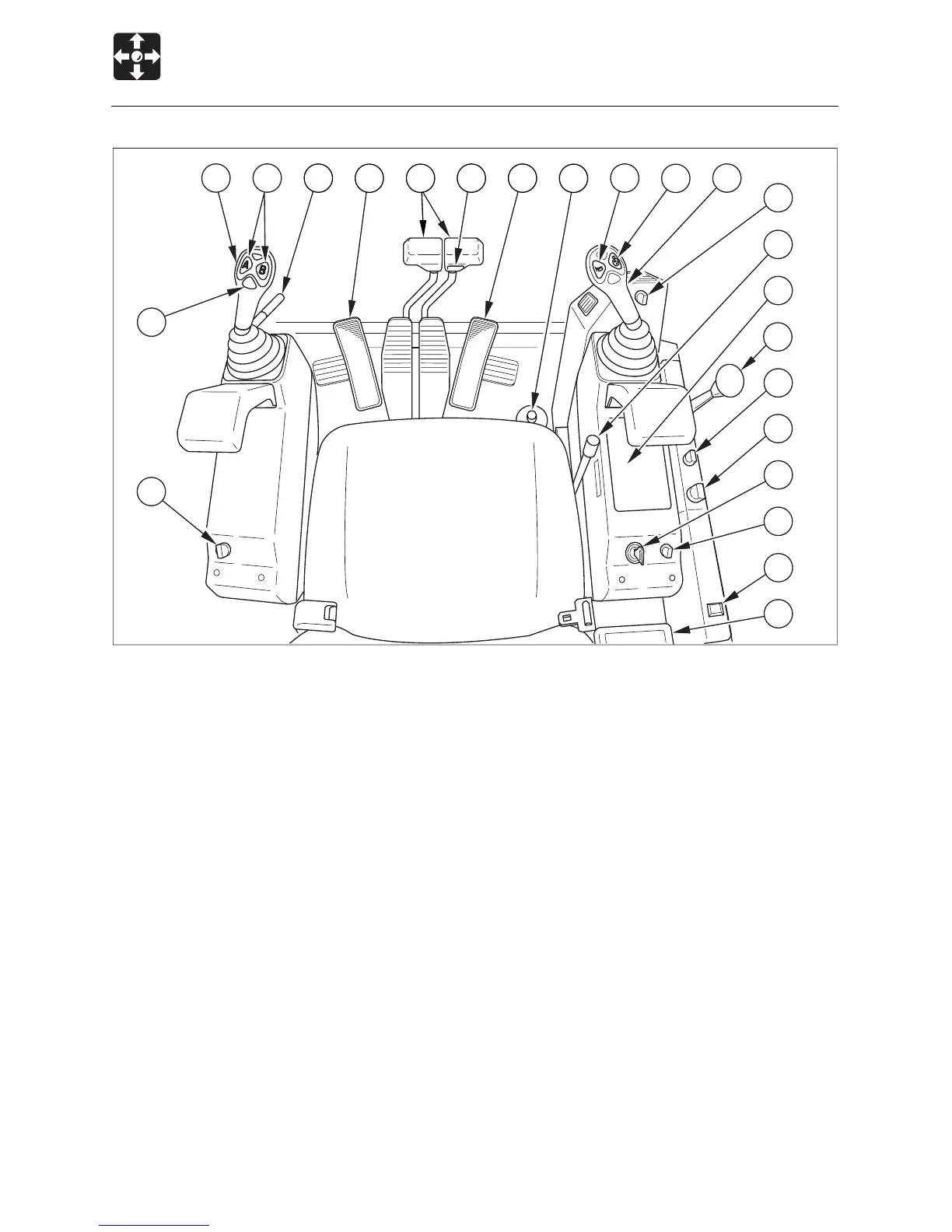

Names of Components
1. Instrument cluster
2. Starter switch
3. Light switch
4. Horn switch
5. Travel speed switch
6. Wiper switch (Cab)
7. Safety lock lever
8. Attachment Interference switch
9. Throttle lever
10. Left operating lever
11. Right operating lever
12. Fuse box
13. Offset pedal
14. Travel lever
15. Auxiliary hydraulic switches
16. Blade lever
17. Decel. switch
18. Fan switch (Heater)
19. Second auxiliary hydraulic pedal (option)
20. Overload warning switch (Option)
21. Third auxiliary hydraulic button (Option)
22. Third auxiliary hydraulic switch (Option)
23. Third auxiliary hydraulics warning lamp
(Option)
J1B0011
13
5
7
21
10
17
16
15
2
23
20
4
8
11
6
1
18
12
14
3
9
22
19
