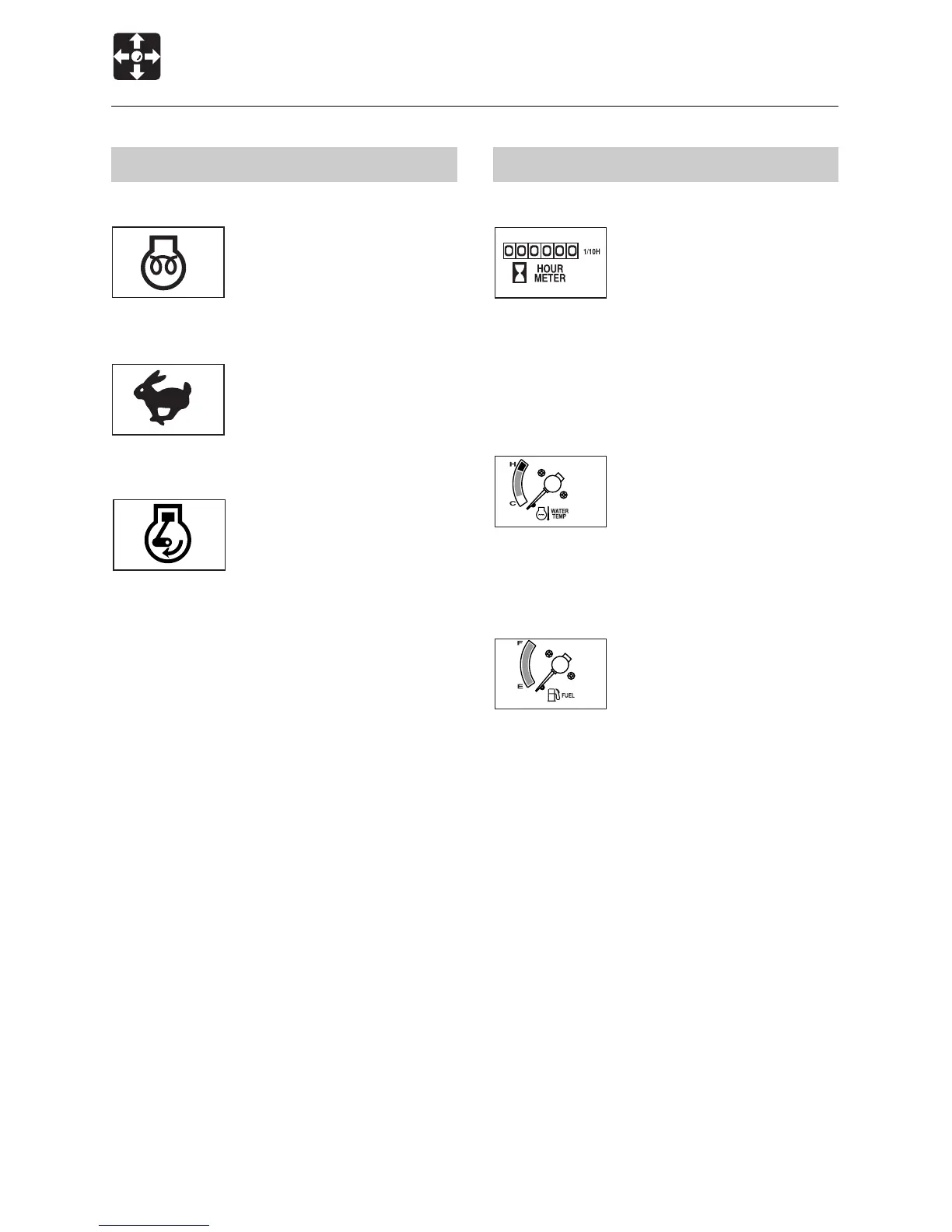

Indicators
6. Glow Lamp
This lamp turns off when
engine preheating is
completed.
7. Travel Speed Lamp
This lamp lights when the
travel speed is set to 2nd
(high speed).
8. Decel. Lamp
This lamp lights when decel.
switch pressed, the engine
speed decreases.
Instrument Cluster
Meters
9. Hour Meter
This displays the total
engine running time in
hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
10. Water Temperature Gauge
This gauge indicates the
temperature of the engine
coolant water.
The needle should be within
the green range during machine operation.
The red range indicates overheating.
11. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
