Takeuchi TL250 User Manual

TRANSPORT

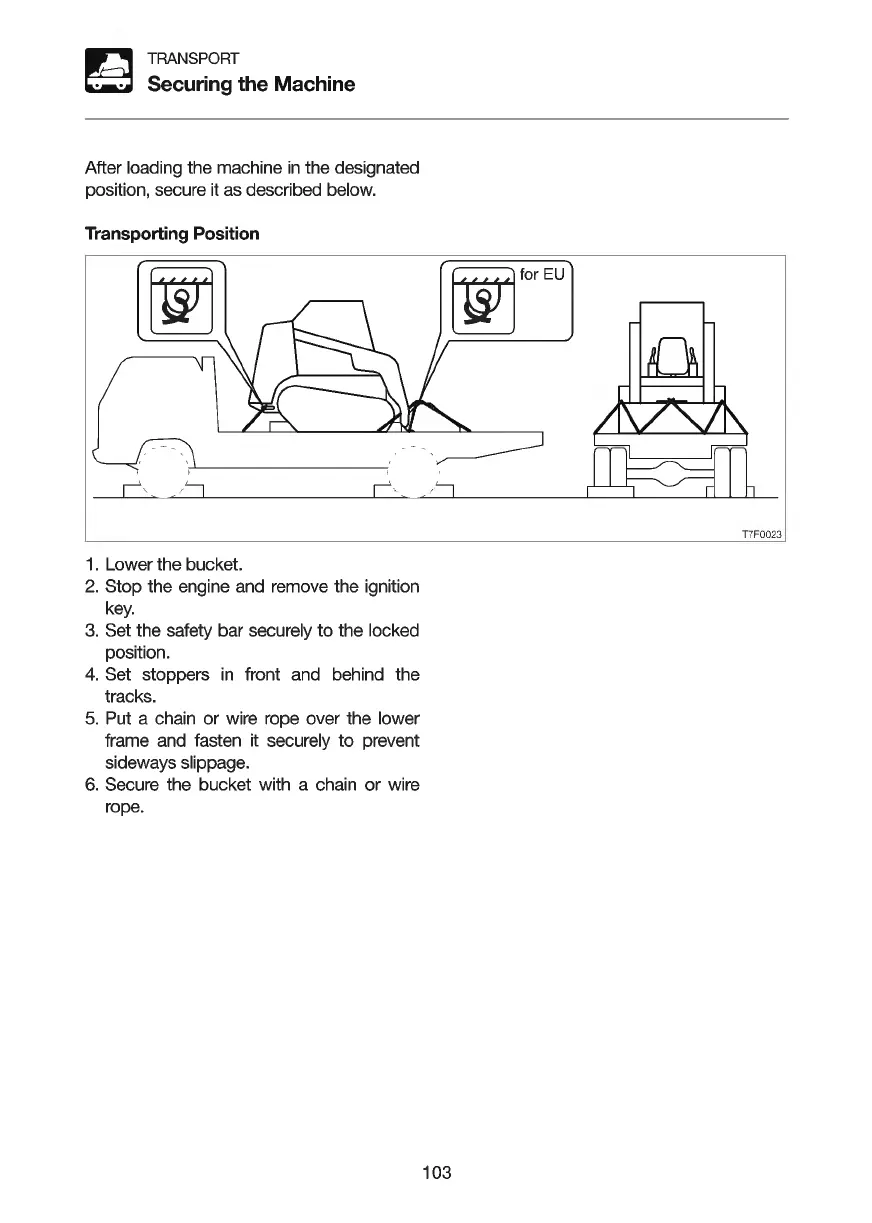

Securing the Machine
After loading the machine in the designated
position, secure
it as described below.
Transporting Position
I I
c\ / ]
1 . Lower the bucket.
2. Stop the engine and remove the ignition
key.
3. Set the safety bar securely to the locked
position.
4. Set stoppers
in front and behind the
tracks.
5. Put a chain or wire rope over the lower
frame and fasten it securely to prevent
sideways slippage.
6. Secure the bucket with a chain or wire
rope.
103
T7F0023

Takeuchi TL250 Specifications

General

Engine Make	Yanmar
Engine Power	74 hp
Lift Height	3, 275 mm
Net Power	73.5 kW
Travel Speed - High	11.8 km/h
Hydraulic Pump Flow	92.5 L/min
Auxiliary Hydraulic Flow	92.5 L/min
Width	1, 980 mm
Engine Model	4TNV98
Travel Speed - Low	7.2 km/h
