Takeuchi TL250 User Manual

OPERATION
Machine Operation

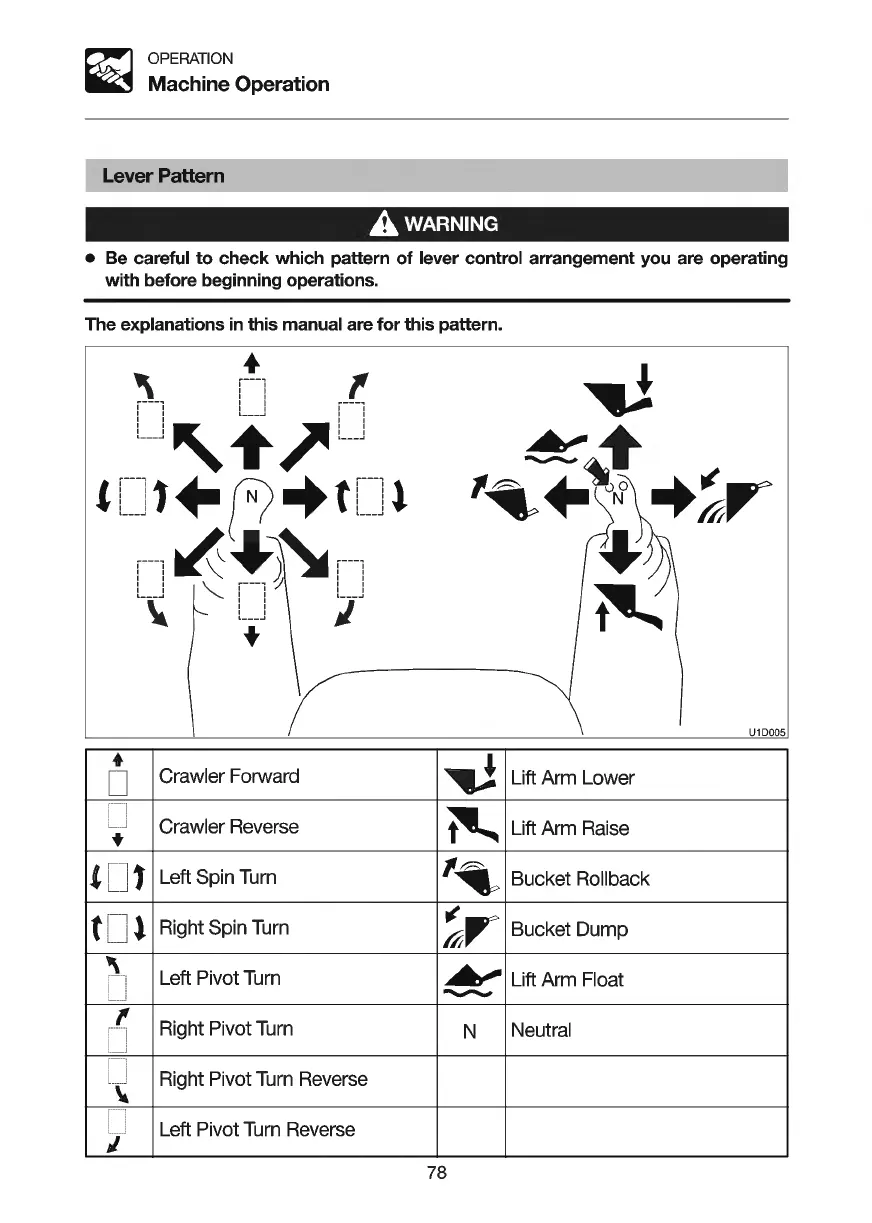

Lever Pattern
AwARNING
• Be careful to check which pattern of lever control arrangement you are operating
with before beginning operations.
The explanations in this manual are
for this pattern.
U1D005
..
,;
[]
Crawler Forward
Lift Arm Lower
lJ
Crawler Reverse
~
Lift Arm Raise
+
l [] )
Left Spin Turn
,,
Bucket Rollback
t
l
Right Spin Turn
~
/it~
Bucket Dump
'
Left Pivot Turn
......- Lift Arm Float
1-1
l_ ____ J
--
'
Right Pivot Turn
N
Neutral
,-~
I !
, __ J
I--;
' I
Right Pivot Turn Reverse
L __ _J
\
r -----
'j
Left Pivot Turn Reverse
78

Takeuchi TL250 Specifications

General

Engine Make	Yanmar
Engine Power	74 hp
Lift Height	3, 275 mm
Net Power	73.5 kW
Travel Speed - High	11.8 km/h
Hydraulic Pump Flow	92.5 L/min
Auxiliary Hydraulic Flow	92.5 L/min
Width	1, 980 mm
Engine Model	4TNV98
Travel Speed - Low	7.2 km/h
