Takeuchi TL250 User Manual

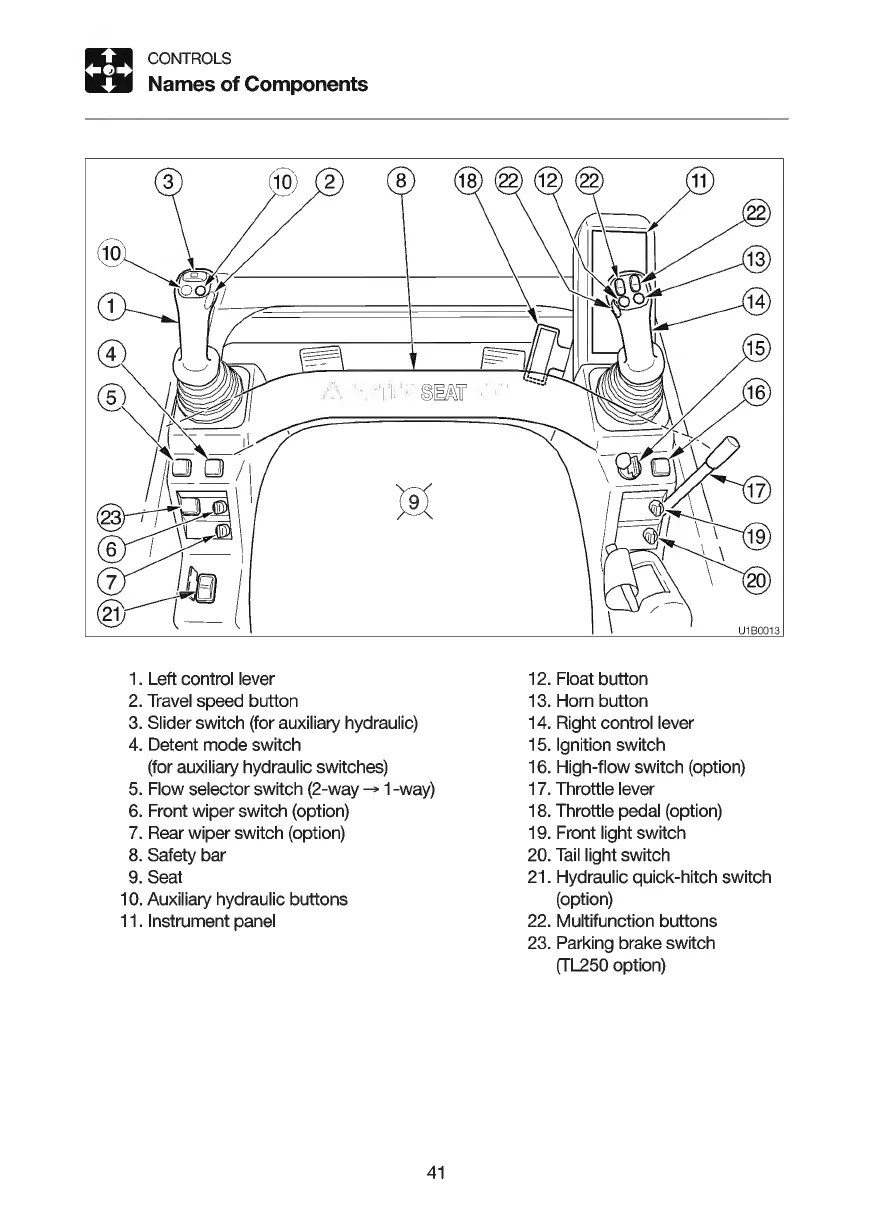

CONTROLS
Names of Components
1 . Left control lever
2. Travel speed button
3. Slider switch (for auxiliary hydraulic)
4. Detent mode switch
(for auxiliary hydraulic switches)
5. Flow selector switch (2-way-+ 1-way)
6. Front wiper switch (option)
7. Rear wiper switch (option)
8. Safety bar
9. Seat
10. Auxiliary hydraulic buttons
11. Instrument panel
41
12. Float button
13. Horn button
14. Right control lever
15. Ignition switch
16. High-flow switch (option)
17. Throttle lever
18. Throttle pedal (option)
19. Front light switch
20.
Tail light switch
21. Hydraulic quick-hitch switch
(option)
22. Multifunction buttons
23. Parking brake switch
(fl250 option)

Takeuchi TL250 Specifications

General

Engine Make	Yanmar
Engine Power	74 hp
Lift Height	3, 275 mm
Net Power	73.5 kW
Travel Speed - High	11.8 km/h
Hydraulic Pump Flow	92.5 L/min
Auxiliary Hydraulic Flow	92.5 L/min
Width	1, 980 mm
Engine Model	4TNV98
Travel Speed - Low	7.2 km/h
