Takeuchi TL250 User Manual

OPERATION
Operating Procedures

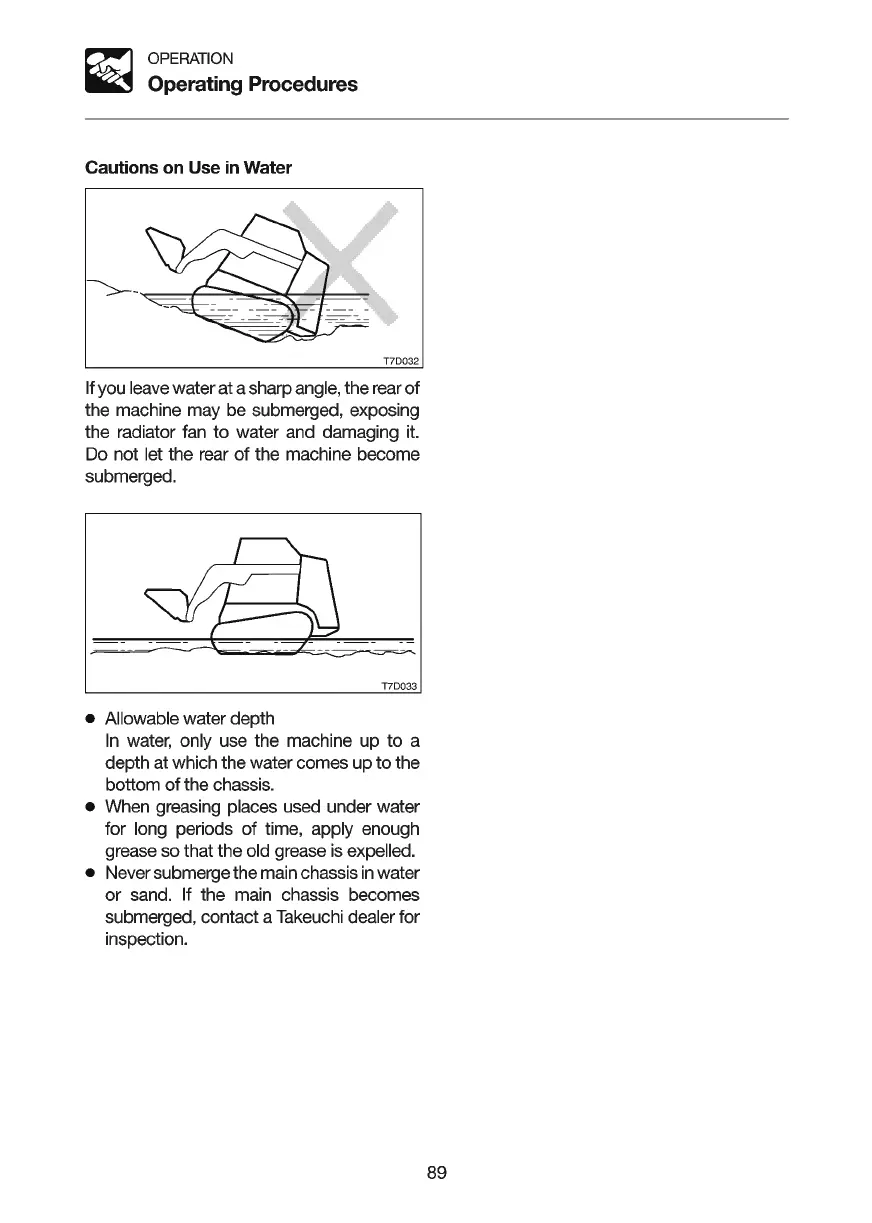

Cautions on Use in Water
T7D032
If you leave water at a sharp angle, the rear of
the machine may be submerged, exposing
the radiator fan to water and damaging
it.
Do not let the rear of the machine become
submerged.
T7D033
• Allowable water depth
In water, only use the machine up to a
depth at which the water comes up to the
bottom
of the chassis.
• When greasing places used under water
for long periods of time, apply enough
grease so that the old grease is expelled.
• Never submerge the main chassis
in water
or sand. If the main chassis becomes
submerged, contact a Takeuchi dealer for
inspection.
89

Takeuchi TL250 Specifications

General

Engine Make	Yanmar
Engine Power	74 hp
Lift Height	3, 275 mm
Net Power	73.5 kW
Travel Speed - High	11.8 km/h
Hydraulic Pump Flow	92.5 L/min
Auxiliary Hydraulic Flow	92.5 L/min
Width	1, 980 mm
Engine Model	4TNV98
Travel Speed - Low	7.2 km/h
