Takeuchi TL8 - Page 146

4-4
TRANSPORT
HOISTING THE MACHINE
A B C D E F G
TL8
1520
(59.9)
980
(38.7)
1515
(59.7)
855
(33.7)
660
(25.9)
890
(35.0)
500
(19.7)
TL10
1660
(65.3)
940
(37.1)
1720
(67.7)
985
(38.8)
735
(28.9)
880
(34.7)
630
(24.7)
TL12
1705
(67.1)
950
(37.4)
1895
(74.6)
1110
(43.7)
785
(30.9)
880
(34.7)
615
(24.2)
Unit: mm (inch)

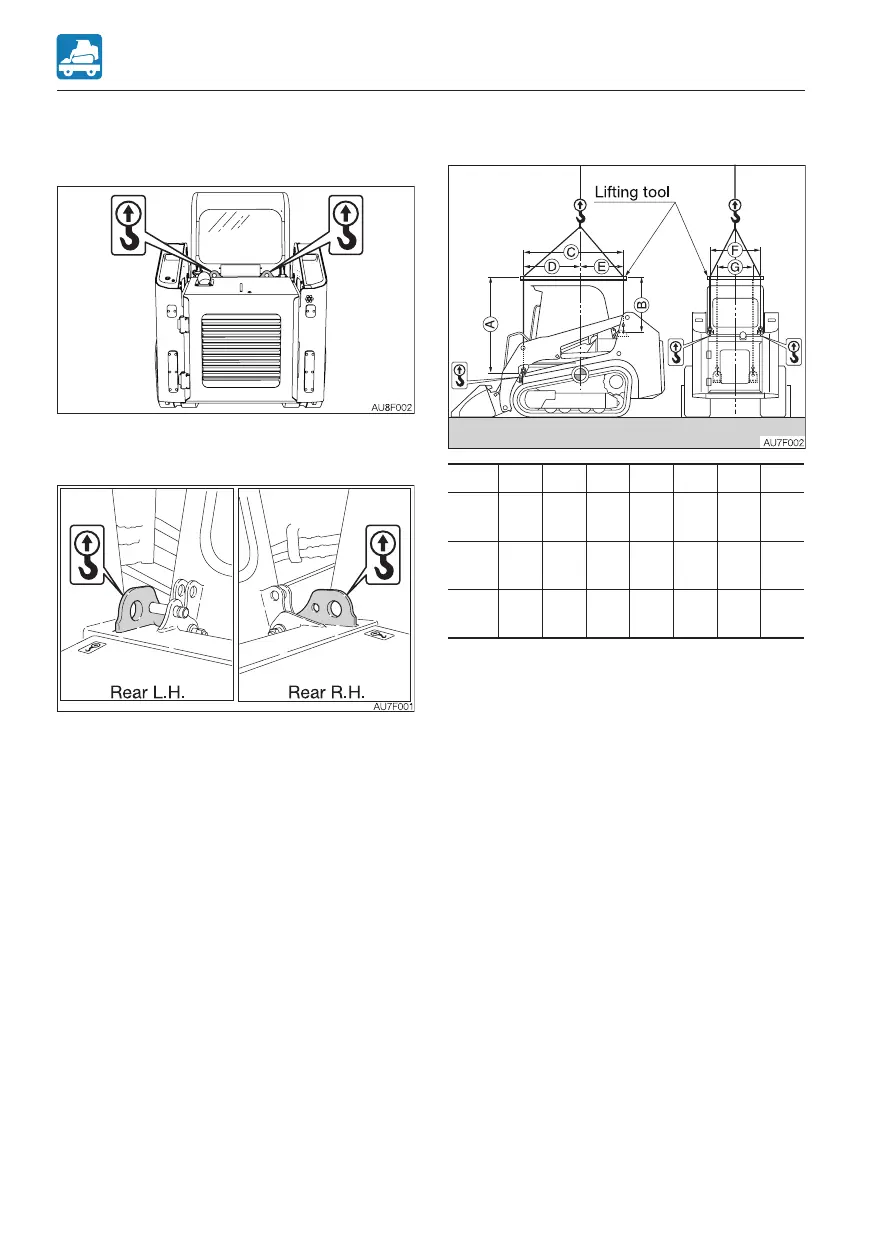

Hoisting posture
<TL10/TL12>
Rear hook fixing position
<TL8>
