Takeuchi TL8 User Manual

2-14
CONTROLS

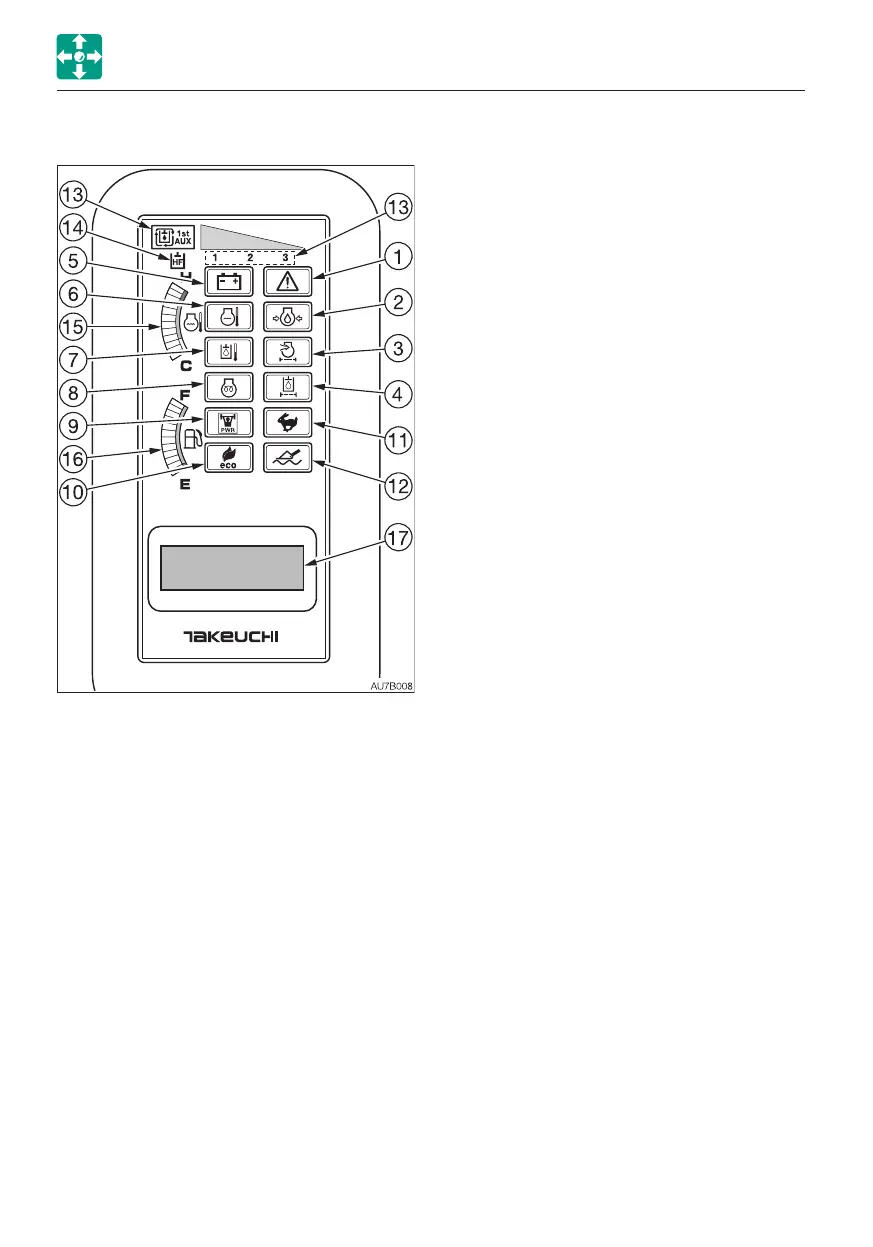

INSTRUMENT CLUSTER
INSTRUMENT CLUSTER
Once the ignition switch is turned to ON, all
lamps on the instrument cluster light up and
the alarm sounds.
If any of the lamps are not lit, the globes may
be blown. Consult your sales or service
dealer.
WARNING LAMPS
IMPORTANT: If a warning lamp flashes
and an alarm is sounded, immediately
stop all operations and check the
corresponding component.
Refer to “If a warning lamp flashes” on
pages 6-10 to 6-11.
1. Vehicle and engine emergency lamp
This lamp flashes and an alarm sounds if
there is a problem with the machine. Get
the vehicle or engine error code number
from the multi-data display and consult
your sales or service dealer referring to the
“Vehicle error code list” or “Engine error
code list”.
2. Engine oil pressure warning lamp
This lamp flashes and an alarm is sounded
if the lubricant oil pressure abnormally low
while the engine is running.
3. Air cleaner warning lamp
This lamp flashes and an alarm is sounded
if the air cleaner filter is clogged while the
engine is running.
4. Pilot line filter warning lamp
This lamp flashes if the pilot line filter is
clogged while the engine is running. This
lamp may flashes directly after the engine
in started in cold weather. This is not a
malfunction. The lamp will turn off as the
engine warms up.
5. Battery charge warning lamp
This lamp flashes and an alarm is sounded
if a problem rises in the charging system
while the engine is running.
6. Coolant temperature warning lamp
This lamp flashes and an alarm is sounded
if the engine coolant temperature
becomes abnormally high while the engine
is running.
7. Hydraulic oil temperature warning lamp
This lamp flashes if the hydraulic oil
temperature becomes abnormally high
while the engine is running.
