2-2
CONTROLS

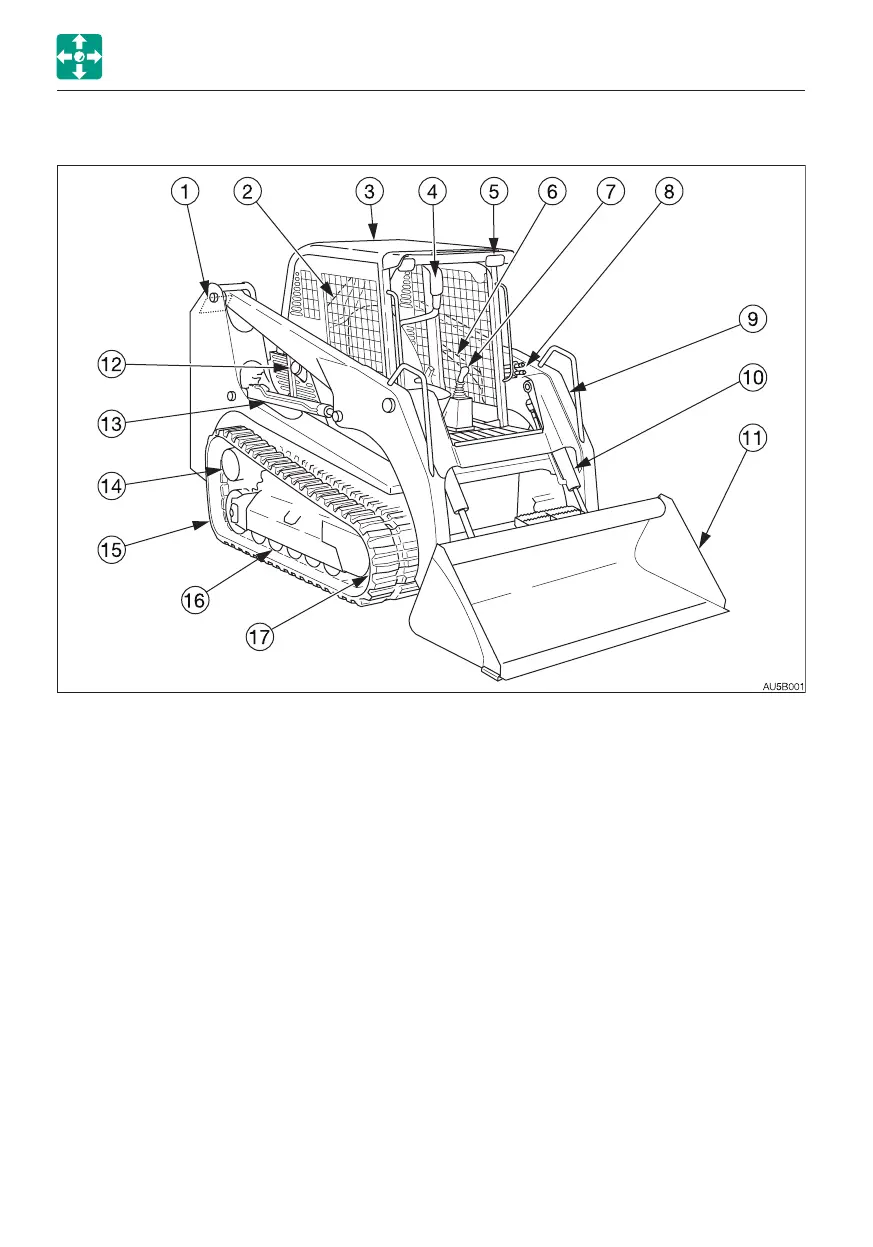

NAMES OF COMPONENTS
NAMES OF COMPONENTS
1. Tail light
2. Hydraulic oil tank
3. Canopy
4. Safety bar
5. Front light
6. Lift arm stopper
7. Left control lever
8. Auxiliary hydraulic lines
9. Lift arms
10. Bucket cylinder
11. Bucket
12. Fuel filler cap
13. Lift cylinder
14. Travel motor
15. Rubber track
16. Track roller
17. Idler
