Takeuchi TL8 User Manual

2-33
CONTROLS

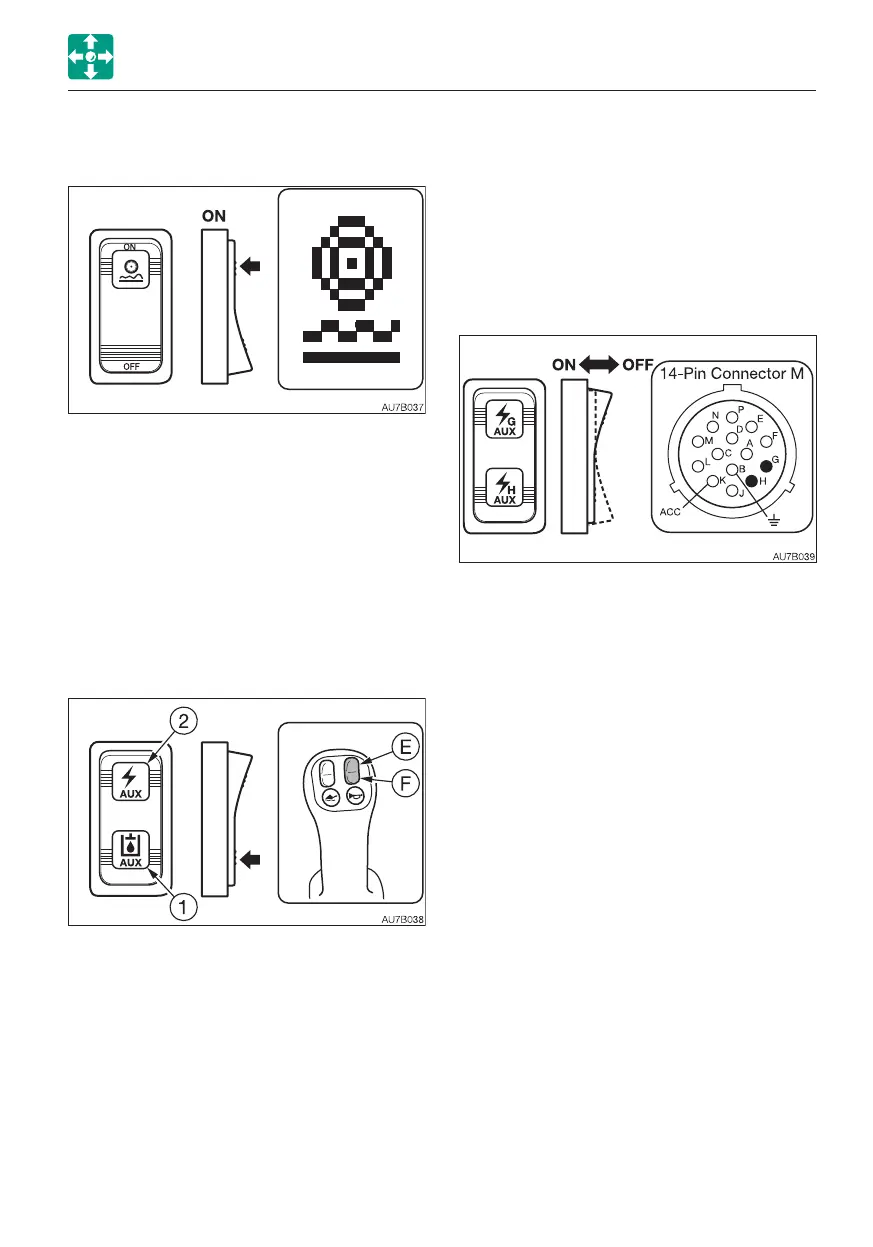

RIDE CONTROL SWITCH (TL10/TL12
OPTIONAL)
• Pressing the ride control symbol side
reduces the lift arm vibration while traveling
and keeps the vehicle from shaking
(prevention of spilling load). The ride control
symbol appears on the display.
• To cancel, press the OFF side of the
switch.
Refer to “Ride control display”on page 2-21.
SWITCHES
AUX. 2ND/14-PIN CONNECTOR SELECT
SWITCH (TL10/TL12 OPTIONAL)
• Pressing the Aux 2nd symbol side (1)
assigns the control of Aux. 2nd to the right
side of the multifunction buttons. The Aux.
2 symbol appears on the display.
· Press the front side (E) of the button to
discharge from the Aux. 2nd port (e).
· Press the rear side (F) of the button to
discharge from the Aux. 2nd port (f).
Refer to “Aux. 2nd display” on page
2-20.
Refer to “Aux. 2nd lines” on page 2-50.
14-PIN CONNECTOR G/H SELECT
SWITCH (OPTIONAL)
• Pressing the 14-pin G symbol side
activates the 14-pin (G).
• Pressing the 14-pin H symbol side
activates the 14-pin (H).
<14-pin connector M>
HDB34-18-14PN-059
Total max. working current: 20 A
Max. working current at each terminal: 13 A
Note: The total max. working current value
includes the 14-pins (C), (D), (E), (F) and (J).
• Pressing the 14-pin symbol side (2) enters
the 14-pin mode. The 14-pin symbol
appears on the display.
Refer to “14-pin connector display” on
page 2-20.

Takeuchi TL8 Specifications

General

Tipping Load	6, 021 lbs
Engine Make	Kubota
Engine Model	V3307-CR-TE4
Rated Operating Capacity	2, 107 lbs
Auxiliary Hydraulics - High Flow	Not available
Gross Power	Not available
