Takeuchi TL8 User Manual

5-48
MAINTENANCE
EVERY 500 HOURS

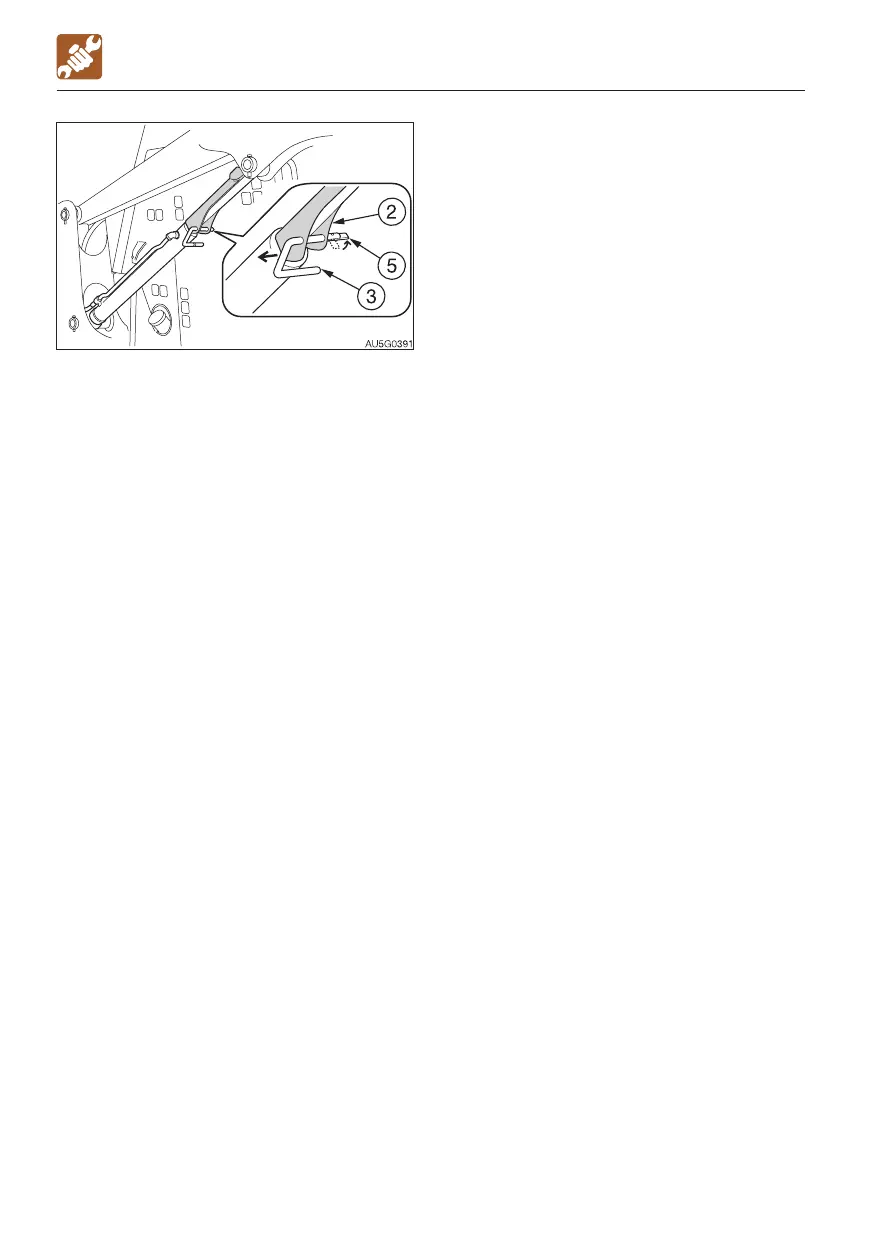

13. Start the engine, lift the lift arms until the
lift arm stopper (2) is disconnected, and
then stop the engine.
14. Align the orientation of the hook (5) with
that of the lock pin (3), and then pull out
the lock pin (3) from the lift arm stopper
(2).
15. Remove the lift arm stopper (2).
16. Start the engine, lower the lift arms to
their lowest position, and then stop the
engine.

Takeuchi TL8 Specifications

General

Tipping Load	6, 021 lbs
Engine Make	Kubota
Engine Model	V3307-CR-TE4
Rated Operating Capacity	2, 107 lbs
Auxiliary Hydraulics - High Flow	Not available
Gross Power	Not available
