Rugged Mini E1 | User’s Manual

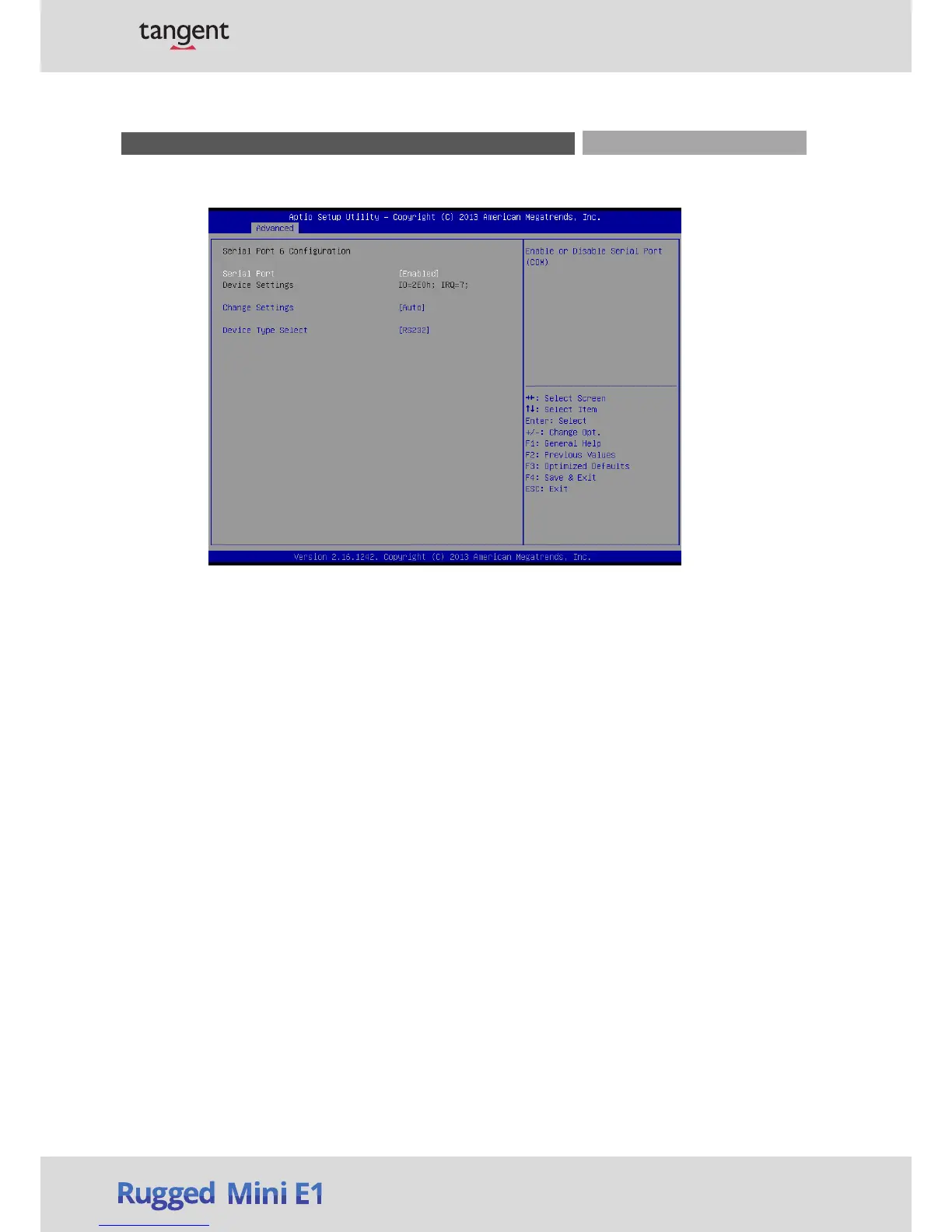

■ Serial Port 6 Configuration

Chapter 4: BIOS Setup

 Serial Port

This item allows you to enable or disable serial port.

 Change Settings

This item allows you to change the address & IRQ settings of the specified serial port.

 Device Type Select

Change the Serial interface. Select <RS232> ,<RS422 Full Duplex> or <RS485 Half Duplex> interface.

■ Watch Dog Function

This setting allows you to setup the system watch-dog timer, a hardware timer that generates a reset

when the software that it monitors does not respond as expected each time the watch dog polls it.

 Watch Dog Timer Count Mode

Change the Watch dog mode. Select <Second Mode> or <Minute Mode> mode.

 Watch Dog Timer Time Out Value

User can set a value in the range of 0 to 255.
