Table 6.2 Service tasks
• The instrument´s time and date settings will be lost when the battery is removed from the instrument or the battery is
dead. When the instrument is next powered on, it will prompt the user to enter the correct time and date.
Note:
It is essential—for data log accuracy—that these tasks be completed. The data log plays an important role in preserving
operator safety, and in the investigation of any potential incident, it can be useful to the safety team or an investigator.

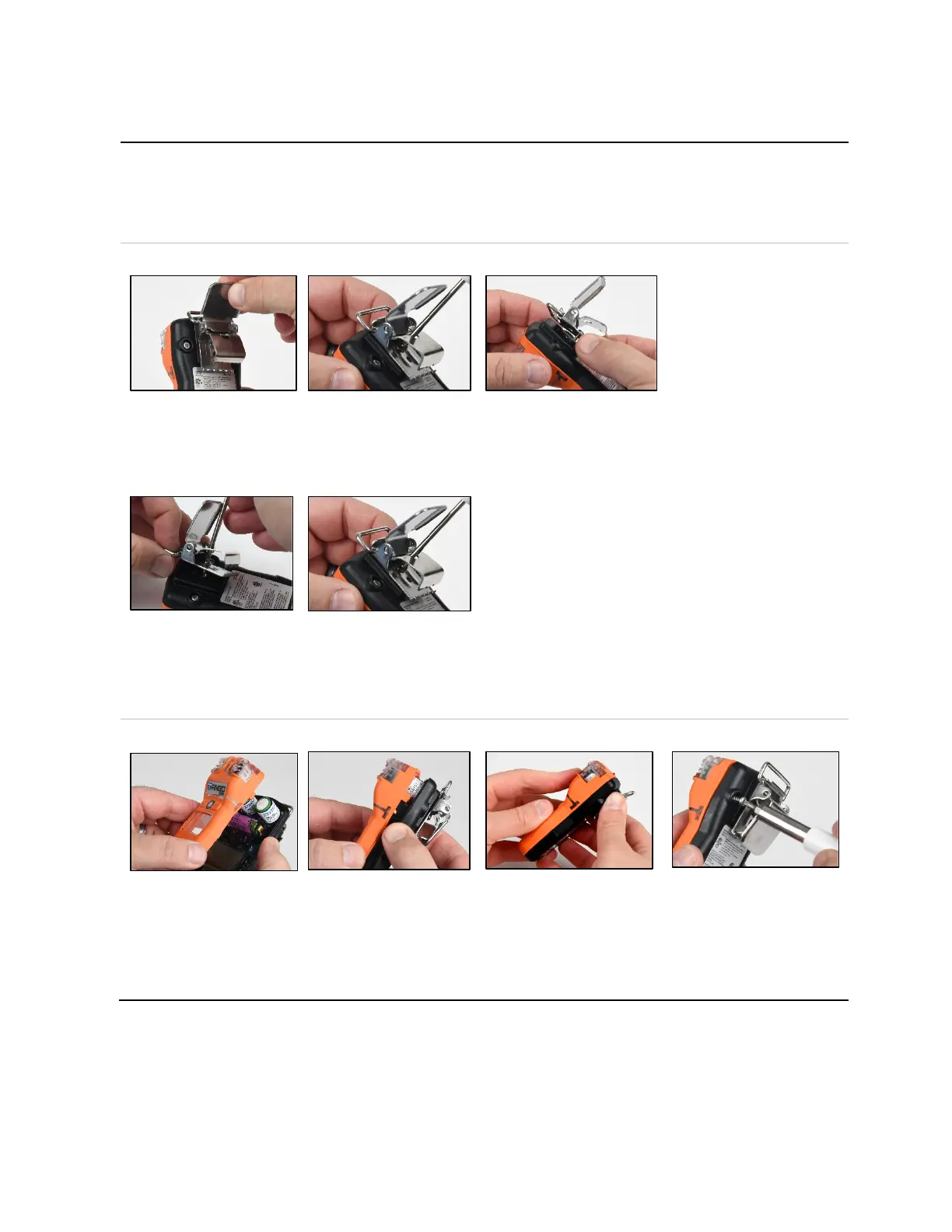

Garment clip removal and attachment
—
Use a torx screwdriver to
remove the clip's screw.
Turn counterclockwise to
loosen and remove the
screw.
Lift the clip to remove it.
Close the clip; store it for
future use.
—
—
To attach the clip cover,
place the screw through the
center hole of the clip back.
through the clip's hole and
into the screw head. Turn
clockwise to tighten.
Note
: Refer to Table 6.1 for torque values.
Instrument assembly
Hold the case bottom near
the upper screw holes.
assembly onto the case
bottom. Use a straight-down
motion to guide the sensors
into the sensor barrels.
Press to secure the case top
and case bottom.
Using a torx screwdriver,
insert and tighten each of the
four screws into the case
bottom.
Note: Refer to Table 6.1 for torque values.
