Tarot 550 - Tail Dive Belt Installation

550 ASSEMBLY SECTION

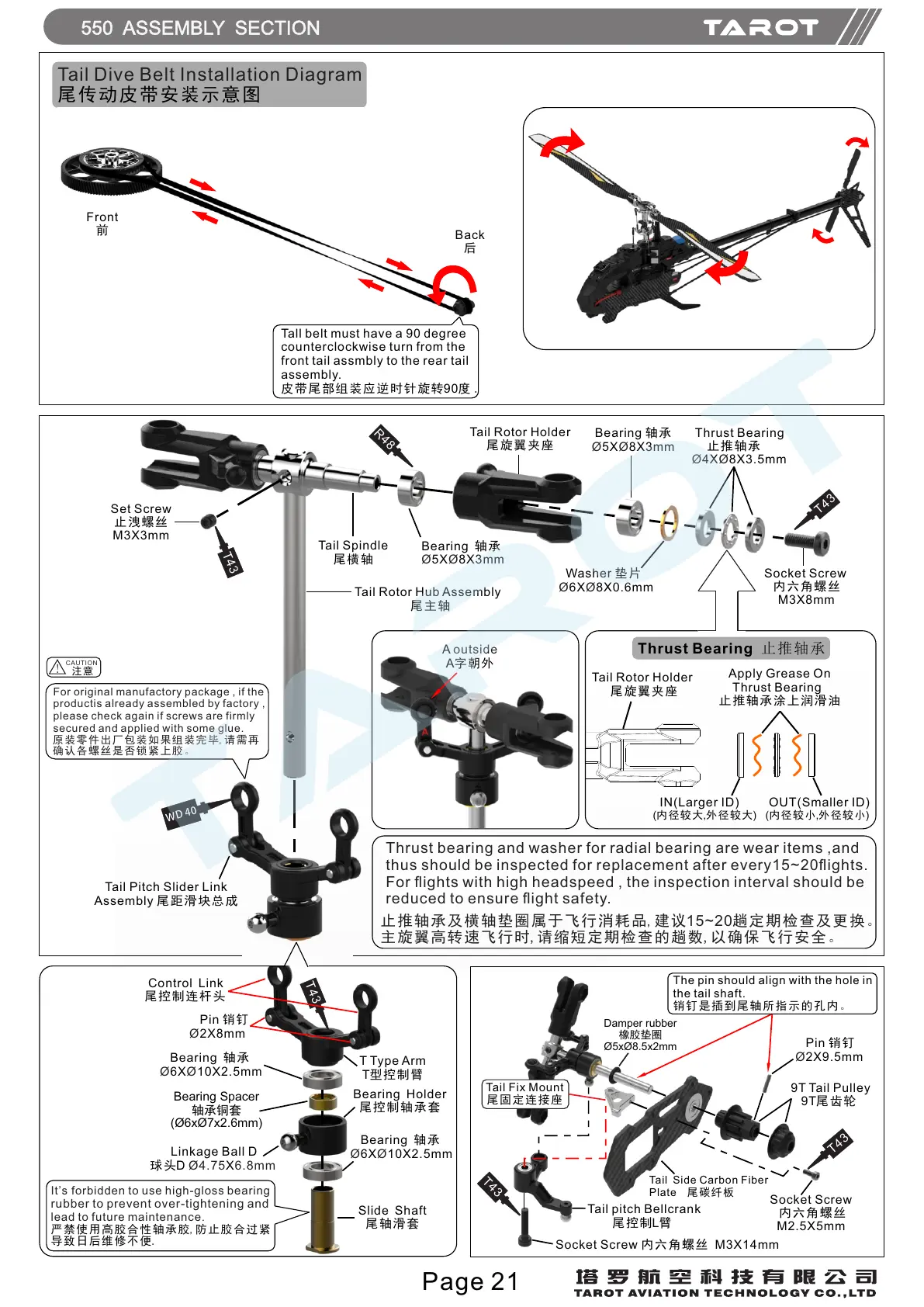

Tail Dive Belt Installation Diagram
尾传动皮带安装示意图
Bearing 轴承
5Χ 8Χ3mmØ Ø
Washer 垫片
6Χ 8Χ0.6mmØ Ø
Thrust Bearing
止推 轴承
4Χ 8Χ3.5mmØ Ø
Thrust Bearing 止 推轴承
Apply Grease On
Thrust Bearing
止推 轴承涂上 润滑油
Bearing 轴承
5Χ 8Χ3mmØ Ø
Socket Screw
内六 角螺丝
Μ3Χ8mm
Set Screw
止洩 螺丝
Μ3Χ3mm
Tail Rotor Hub Assembly
尾主 轴
Tail Pitch Slider Link
Assembly 尾距滑块 总 成
Tail Spindle
尾横 轴
Thrust bearing and washer for radial bearing are wear items ,and
thus should be inspected for replacement after every15~20flights.
For flights with high headspeed , the inspection interval should be
reduced to ensure flight safety.
止推轴 承及横轴垫 圈属于飞行 消耗品,建议15~20趟定期检查及更换。
主旋翼 高转速飞行 时,请缩短定期 检查的趟数,以 确保飞行安 全。
For original manufactory package , if the
productis already assembled by factory ,
please check again if screws are firmly
secured and applied with some glue.
原装零 件出厂 包装如 果组装 完毕,请 需再
确认各 螺丝是 否锁紧 上胶。
A outside
A字朝 外
CAUTION
!
注意
9T Tail Pulley
9T尾齿轮
ꜛ
The pin should align with the hole in
the tail shaft.
销钉是插 到尾 轴所 指示的孔内 。
Socket Screw
内六 角螺丝
Μ2.5Χ5mm
Tail Side Carbon Fiber
Plate 尾 碳纤板
ꜛ
Socket Screw 内六角 螺丝 Μ3Χ14mm
Tail pitch Bellcrank
尾控 制L臂
Front
前
Back
后
Tall belt must have a 90 degree
counterclockwise turn from the
front tail assmbly to the rear tail
assembly.
皮带 尾部组装 应逆时针 旋转90度 .
Bearing 轴承
6Χ 10Χ2.5mmØ Ø
Bearing 轴承
6Χ 10Χ2.5mmØ Ø
Bearing Holder
尾控 制轴承套
T Type Arm
T型控 制臂
Slide Shaft
尾轴 滑套
Control Link
尾控 制连杆头
Pin 销 钉
2Χ8mmØ
It’s forbidden to use high-gloss bearing
rubber to prevent over-tightening and
lead to future maintenance.
严禁使用高胶 合性 轴承 胶,防止 胶合 过紧
导致日后维修 不便.
Linkage Ball D
球头D Χ Ø4.75 6.8mm
R
4
8
T
43
T43
T4
3
T
4
3
T
4
3
Page 21
Tail Rotor Holder
尾旋 翼夹座
Tail Rotor Holder
尾旋 翼夹座
Pin 销 钉
2Χ9.5mmØ
Tail Fix Mount
尾固定连 接座
IN(Larger ID)
(内径较 大,外径较 大)
OUT(Smaller ID)
(内径较 小,外径较 小)
WD40
Bearing Spacer
轴承铜套
(Ø6xØ7x2.6mm)
Damper rubber
橡胶垫圈
Ø5xØ8.5x2mm
