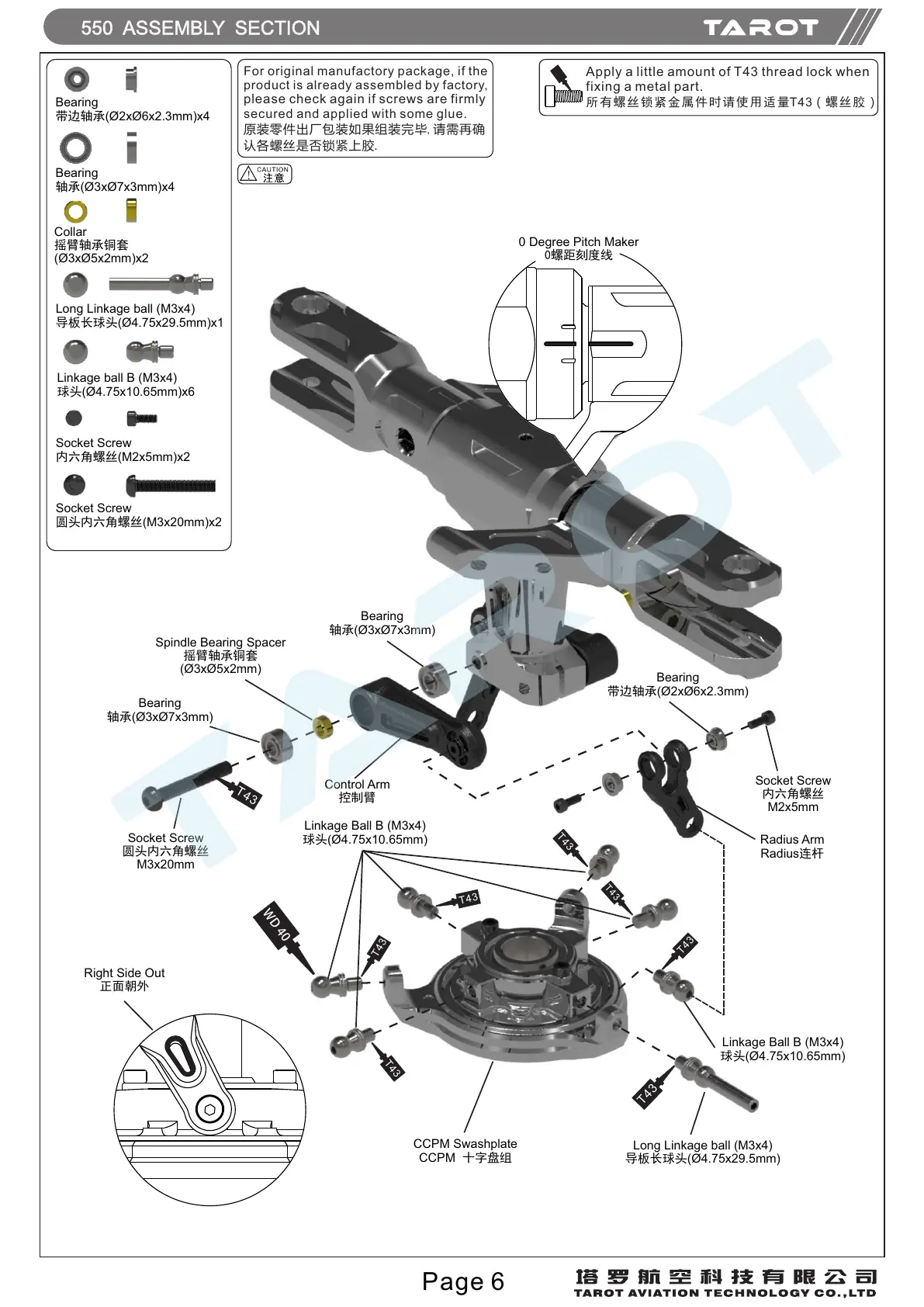

550 ASSEMBLY SECTION
Page 6
Long Linkage ball (M3x4)
导板长球头(Ø4.75x29.5mm)
Spindle Bearing Spacer
摇臂轴承铜套
(Ø3xØ5x2mm)
Bearing
轴承(Ø3xØ7x3mm)
Socket Screw
圆头内六角螺丝
M3x20mm
Socket Screw
内六角螺丝
M2x5mm
Linkage Ball B (M3x4)
球头(Ø4.75x10.65mm)
Bearing
带边轴承(Ø2xØ6x2.3mm)
Control Arm
控制臂
Radius Arm
Radius连杆
CCPM Swashplate
CCPM 十字盘组
Right Side Out
正面朝外
T
4
3
T
4
3
Linkage Ball B (M3x4)
球头(Ø4.75x10.65mm)
For original manufactory package, if the
product is already assembled by factory,
please check again if screws are firmly
secured and applied with some glue.
原装零件出厂包装如果组装完毕,请需再确
认各螺丝是否锁紧上胶.
Bearing
轴承(Ø3xØ7x3mm)
0 Degree Pitch Maker
0螺距刻度线
Linkage ball B (M3x4)
球头(Ø4.75x10.65mm)x6
Socket Screw
内六角螺丝(M2x5mm)x2
Bearing
带边轴承(Ø2xØ6x2.3mm)x4
Collar
摇臂轴承铜套
(Ø3xØ5x2mm)x2
Bearing
轴承(Ø3xØ7x3mm)x4
Socket Screw
圆头内六角螺丝(M3x20mm)x2
Long Linkage ball (M3x4)
导板长球头(Ø4.75x29.5mm)x1
Apply a little amount of T43 thread lock when
fixing a metal part.
所有 螺丝锁紧 金属件时 请使用适 量T43（螺 丝胶）
WD40
T
4
3
T43
T
43
T4
3
T
43
T
4
3
